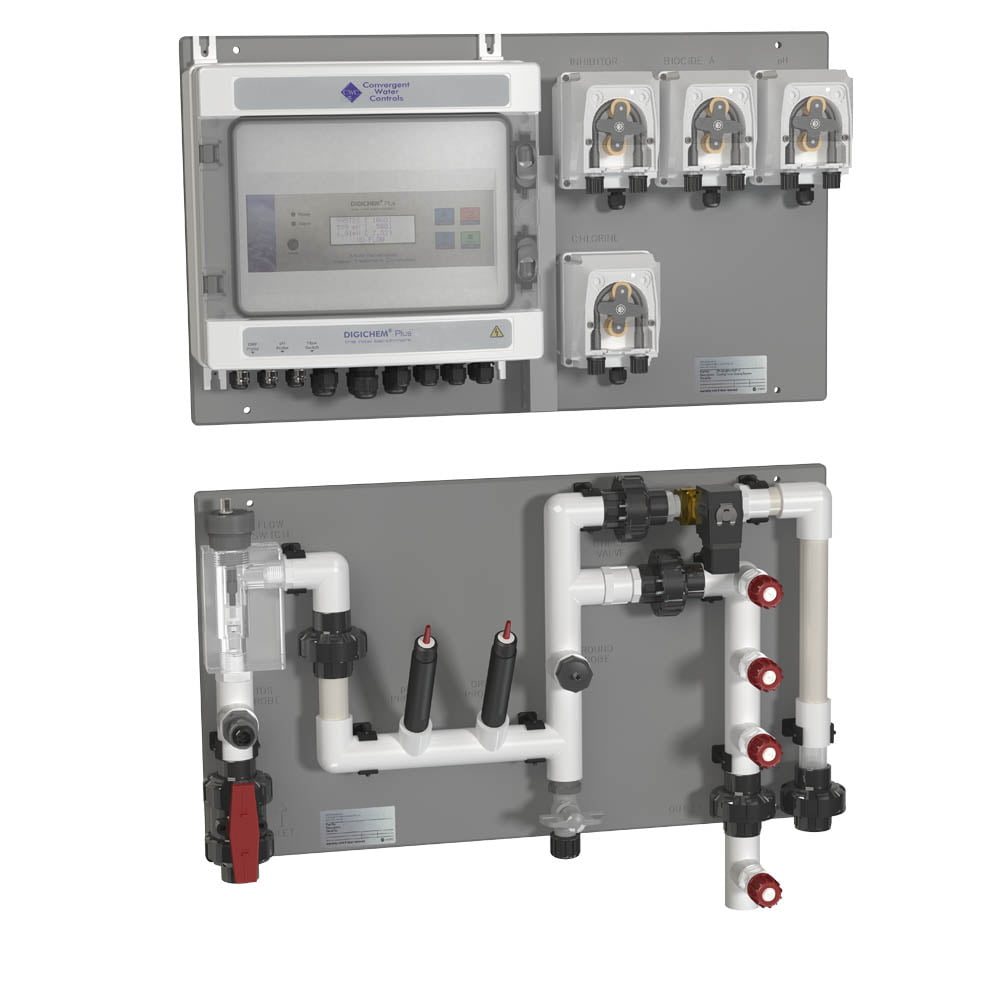

DP-CAPHP-RXP (Bleed, Inhib, BioA, pH, ORP via Chlorine Pump)

  • Internet Based Connectivity as an option
  • Monitoring and control of Conductivity/TDS, pH and ORP simultaneously
  • On-board data logging
  • Continuous readout of Conductivity, Temp, pH & ORP with each setpoint on backlit LCD
  • Display and logging of cycles of concentration of the cooling tower
  • Manual slug dose feature on all pumps
  • Inhibitor modes: On bleed, After bleed, 24/7 cycle, Proportional to make-up
  • Ability to measure and log cooling tower make-up and bleed water flow rate & consumption
  • Inhibitor, Non-oxidising biocide, pH & ORP pumps
  • Disinfection feature to allow ORP control to a temporary high setpoint
  • 28 Day Timers for disabling pH & ORP output if continuous control not desired.
  • 28 Day Biocide Dosing programs (max 70 per week)
  • Password protection
Compare
SKU: DP-CAPHP-RXP Category: Tag: Brand:

Description

Superseded
DIGICHEM-Plus-Tips-for-Remote-Setup-TroubleShooting-v1.0.pdf
DP-CA-DIGICHEM-Plus-Data-Sheet-v1.2.pdf
DP-CA-DIGICHEM-Plus-Instruction-Manual-v5.0.pdf
DP-CAPHP-RXP-Assembly-Diagram-v3.1.pdf
DP-CAPHP-RXP-Installation-Instructions-v1.1.pdf
DP-CAPHP-RXP-Spare-Parts-Exploded-Rev-01.pdf
Superseded
DIGICHEM-Plus-Tips-for-Remote-Setup-TroubleShooting-v1.0.pdf
DP-CA-DIGICHEM-Plus-Data-Sheet-v1.2.pdf
DP-CA-DIGICHEM-Plus-Instruction-Manual-v5.0.pdf
DP-CAPHP-RXP-Assembly-Diagram-v3.1.pdf
DP-CAPHP-RXP-Installation-Instructions-v1.1.pdf
DP-CAPHP-RXP-Spare-Parts-Exploded-Rev-01.pdf
Name
Superseded

Additional information

Configuration

Wall Mount, PVC Backboard Mounted

Variables Measured

Conductivity, Flow Status, Flow Volume, ORP, pH, TDS, Temperature

Inputs

Conductivity Probe with Electrodes & 47K NTC, Flow Switch Contact, ORP Probe, pH Probe, Water Meter Bleed Pulses, Water Meter Make-up Pulses

Outputs

Alarm Relay, Bio A Pump Via Relay, Bleed Valve Via Relay, Inhibitor Pump Via Relay, Optional Dispersant Pump Via Relay, ORP Chlorine Pump Via Relay, pH Pump Via Relay

Data Logging

Included

Remote Comms

Via Optional Modem

Max Pressure / Temp

2.7 bar @ 50°C

Port Size

20mm Solvent Weld

Materials

PVC Manifold, Solenoid valves brass

IP Rating

IP65
