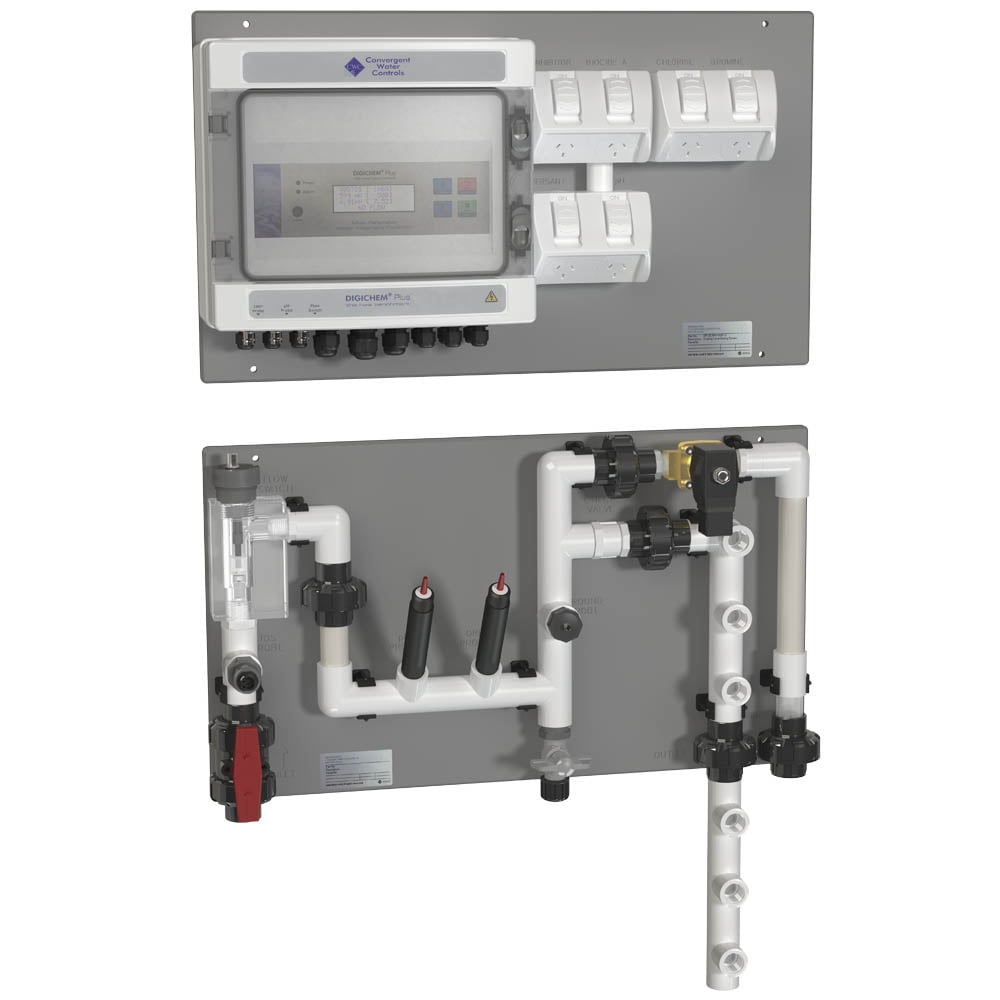

DP-DCAPH-RXP-X/6S Bleed, Inhib, BioA, pH & ORP GPOs for opt pumps

  • Internet Based Connectivity as an option
  • Monitoring and control of Conductivity/TDS, pH and ORP simultaneously
  • On-board data logging
  • Continuous readout of Conductivity, Temp, pH & ORP with each setpoint on backlit LCD
  • Display and logging of cycles of concentration of the cooling tower
  • Manual slug dose feature on all pumps
  • Inhibitor modes: On bleed, After bleed, 24/7 cycle, Proportional to make-up
  • Ability to measure and log cooling tower make-up and bleed water flow rate & consumption
  • GPO’s for Inhibitor, Non-oxidising biocide, pH, Chlorine, Bromine, & Dispersant pumps
  • Disinfection feature to allow ORP control to a temporary high setpoint
  • 28 Day Timers for disabling pH & ORP output if continuous control not desired.
  • 28 Day Biocide Dosing programs (max 70 per week)
  • Password protection
Compare
SKU: DP-DCAPH-RXP-X/6S Categories: , Tag: Brand:

Description

Superseded
DIGICHEM-Plus-Tips-for-Remote-Setup-TroubleShooting-v1.0.pdf
DP-CA-DIGICHEM-Plus-Data-Sheet-v1.2.pdf
DP-CA-DIGICHEM-Plus-Instruction-Manual-v5.0.pdf
DP-CA-DIGICHEM-Plus-Spare-Parts-v1.1.pdf
DP-CAPHP-RXP-Installation-Instructions-v1.1.pdf
DP-DCAPH-RXP-X-6S-Assembly-Diagram-v3.1.pdf
Superseded
DIGICHEM-Plus-Tips-for-Remote-Setup-TroubleShooting-v1.0.pdf
DP-CA-DIGICHEM-Plus-Data-Sheet-v1.2.pdf
DP-CA-DIGICHEM-Plus-Instruction-Manual-v5.0.pdf
DP-CA-DIGICHEM-Plus-Spare-Parts-v1.1.pdf
DP-CAPHP-RXP-Installation-Instructions-v1.1.pdf
DP-DCAPH-RXP-X-6S-Assembly-Diagram-v3.1.pdf
Name
Superseded

Additional information

Configuration

Wall Mount, PVC Backboard Mounted

Variables Measured

Conductivity, Flow Status, Flow Volume, ORP, pH, TDS, Temperature

Inputs

Conductivity Probe with Electrodes & 47K NTC, Flow Switch Contact, ORP Probe, pH Probe, Water Meter Bleed Pulses, Water Meter Make-up Pulses

Outputs

Alarm Relay, Bleed Valve Via Relay, Switched GPOs for optional pumps/valves

Data Logging

Included

Remote Comms

Via Optional Modem

Max Pressure / Temp

6.9 bar @ 25°C

Port Size

20mm Solvent Weld

Materials

PVC Manifold, Solenoid valves brass

IP Rating

IP53
