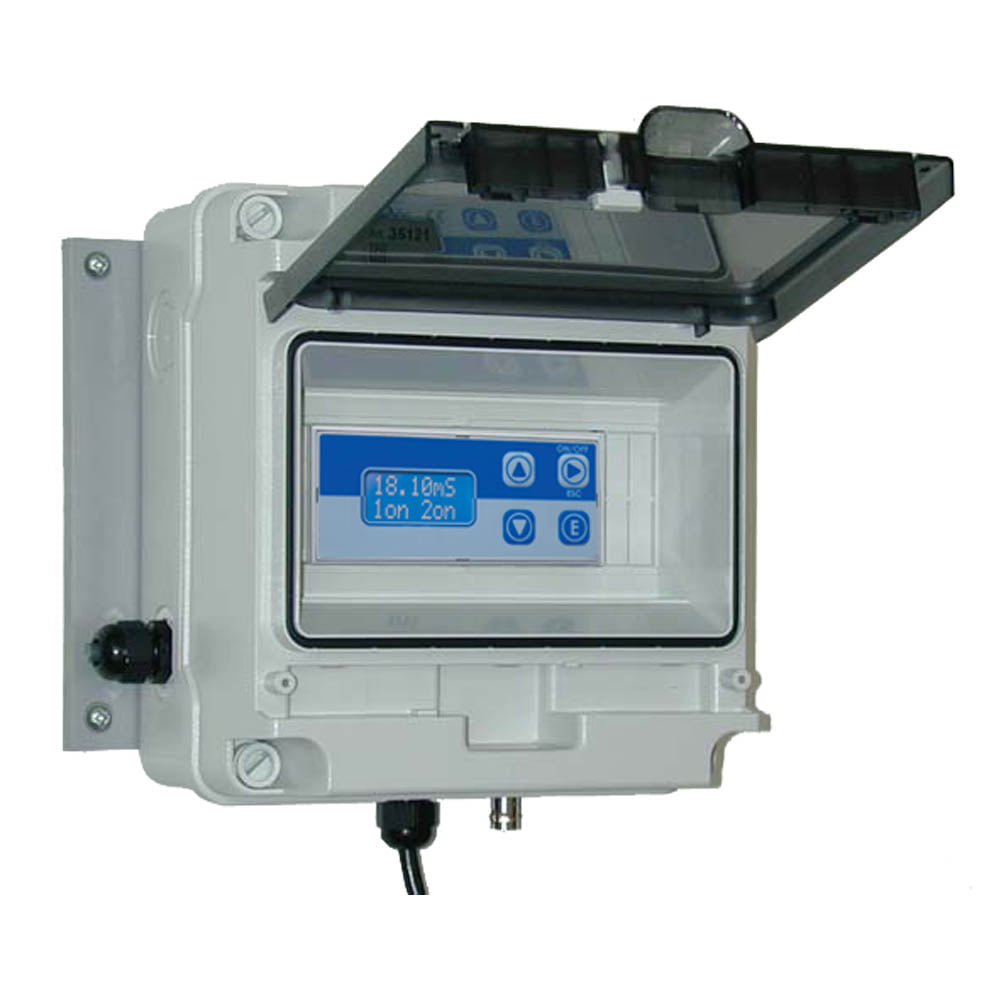

EMEC DIN DIG CD/1G 200uS Condensate Conductivity Controller 1
EMEC DIN DIG CD/1G 200uS Condensate Conductivity Controller
- Enclosure mounted on PVC Backboard
- 2 Setpoints: ON/OFF or Proportional with ON/OFF modulation
- Backlit LCD displays measured µS
- Automatic Temperature Compensation
- 4-20mA output for Conductivity
- Built-in GPO version available – part number EMEC DIN CD/1S
- Max controller temp compensation: 100°C
Description
EMEC-DIN-DIG-1G-Dimensional-Drawing-v1.0.pdf
EMEC-DIN-DIG-CD-Data-Sheet-R2-01-07.pdf
EMEC-DIN-DIG-CD-Instruction-Manual-R1-11-05.pdf
| Name |
|---|
|
EMEC-DIN-DIG-1G-Dimensional-Drawing-v1.0.pdf
|
|
EMEC-DIN-DIG-CD-Data-Sheet-R2-01-07.pdf
|
|
EMEC-DIN-DIG-CD-Instruction-Manual-R1-11-05.pdf
|
Additional information
| Configuration | Wall Mount |
|---|---|
| Variables Measured | Conductivity, Temperature |
| Inputs | Conductivity Probe with Electrodes & 10K NTC, Flow Switch Contact |
| Outputs | 4-20mA, Volt Free Contacts NO/NC |
| IP Rating | IP55 |
