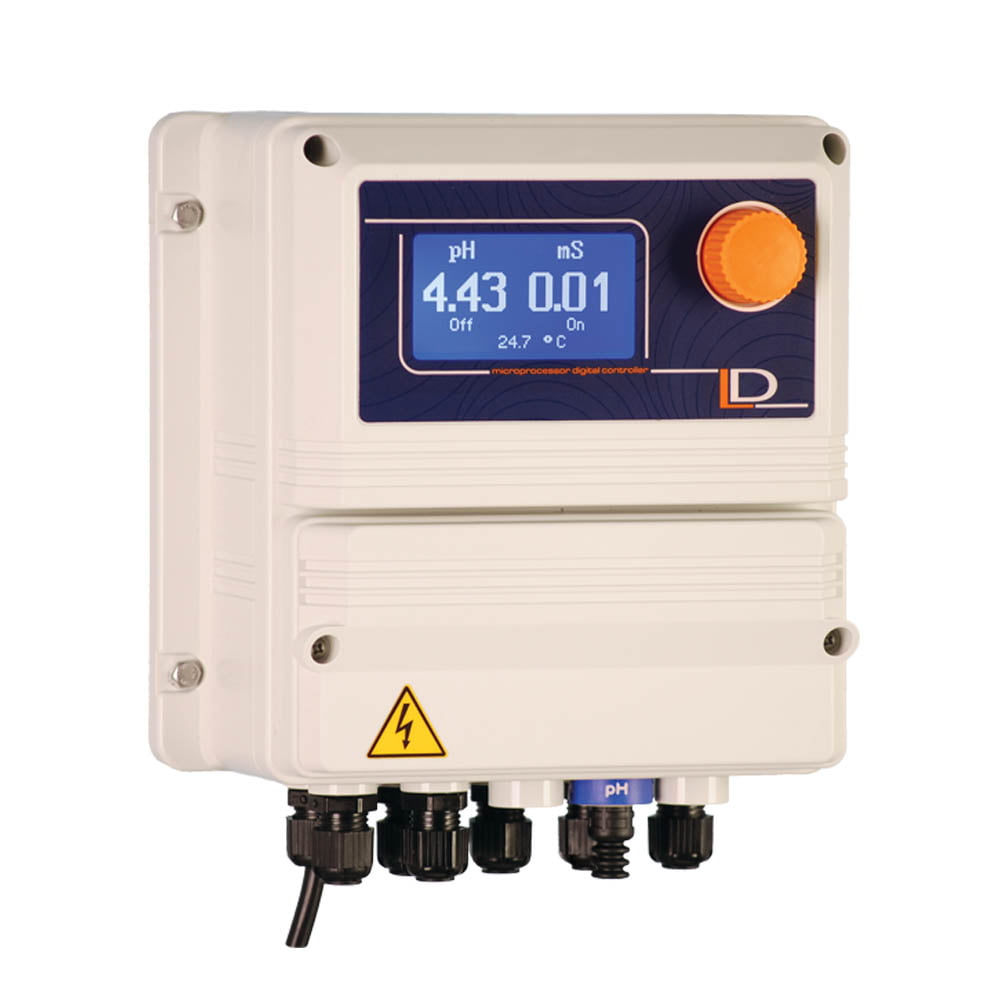

EMEC LDPHCD pH & Conductivity Controller

  • Programmable for dosing acid and/or base, and Conductivity control
  • Proportional or On/Off Control for pH and Conductivity
  • Outputs: 1 x pH 240Vac Relay, 2 x pH Pulse, 1 x Conductivity 240Vac Relay, 1 x Conductivity Pulse, 3 x mA for pH, Conductivity & Temp
  • Tanks level inputs: 2 x pH, 1 x Conductivity
  • Other I/O: 1 x Standby I/P, 1 x 240Vac Alarm Relay O/P, 1 x RS485 O/P
  • LCD displays show measured pH and Conductivity (mS)
  • Manual/Automatic Temperature Compensation (for pH only)
  • Max dosing alarms
  • Optional GSM/GPRS modem or Ethernet/LAN card for remote connectivity via webserver and alarming via SMS/e-mail
  • ERMES Ready – Remote access via 4G, WiFi, Ethernet with live readings
Compare
SKU: EMEC LDPHCD-mA Categories: , Tag: Brand:

Description

Superseded
EMEC-LDPHCD-LDPHCDIND-Instruction-Manual-R5-05-13.pdf
LD-Dual-LD-Dual-PLUS-Data-Sheet-R2-06-20.pdf
Superseded
EMEC-LDPHCD-LDPHCDIND-Instruction-Manual-R5-05-13.pdf
LD-Dual-LD-Dual-PLUS-Data-Sheet-R2-06-20.pdf
Name
Superseded

Additional information

Configuration

Wall Mount

Variables Measured

Conductivity, Flow Status, pH, Temperature

Inputs

Conductivity Probe with Electrodes & PT100, Flow Switch Contact, pH Probe, Standby Dry Contact, Tank Level Dry Contact

Outputs

4-20mA, Alarm Relay, Optional Modbus, Pulse, Switched Relays For Optional Pumps/Valves

Remote Comms

Via Optional LAN card, Via Optional Modbus, Via Optional Modem

IP Rating

IP65
