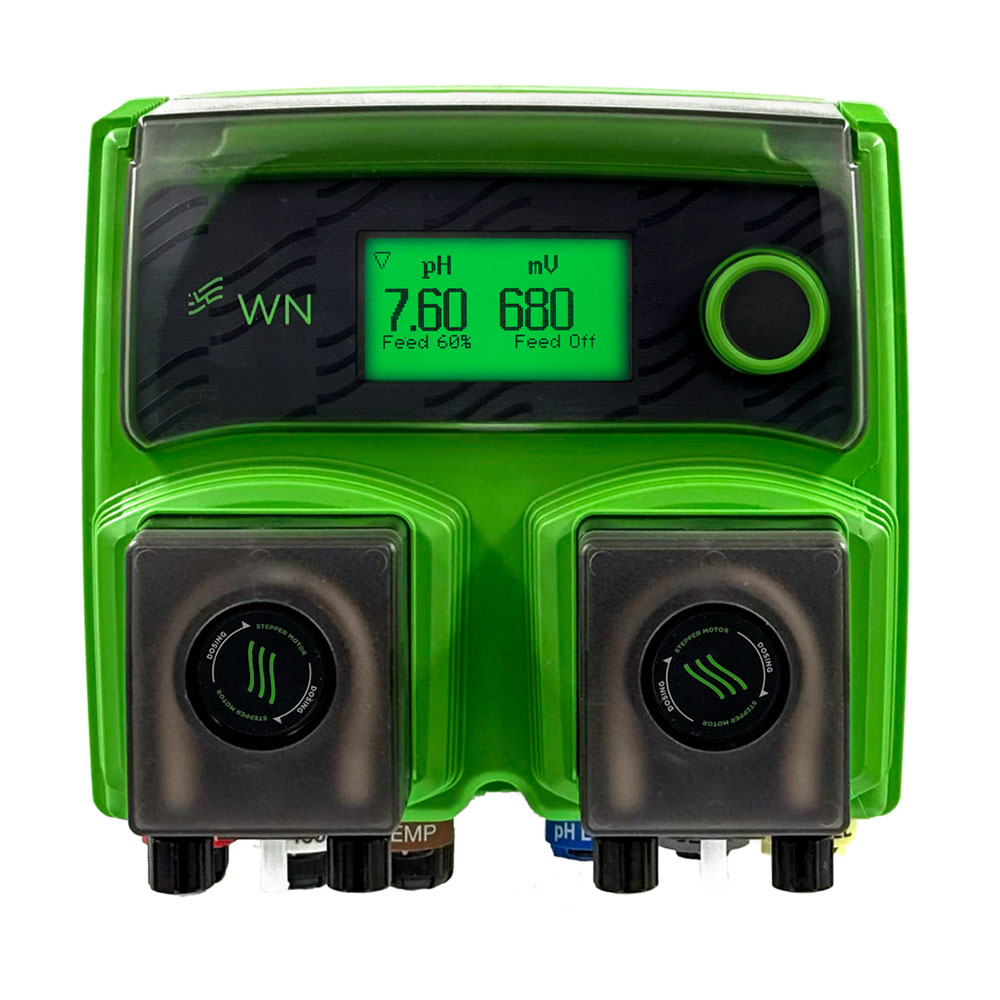

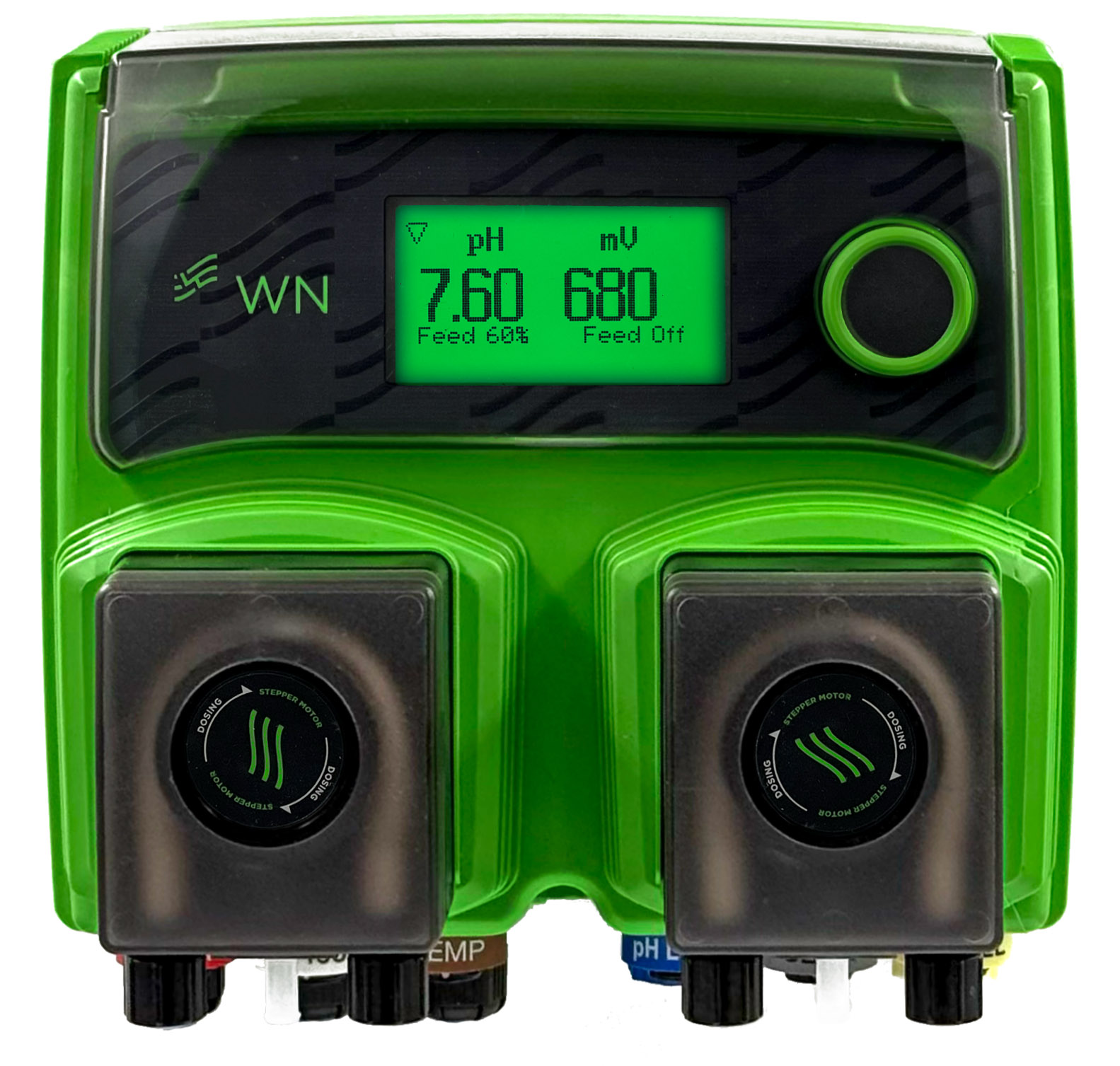

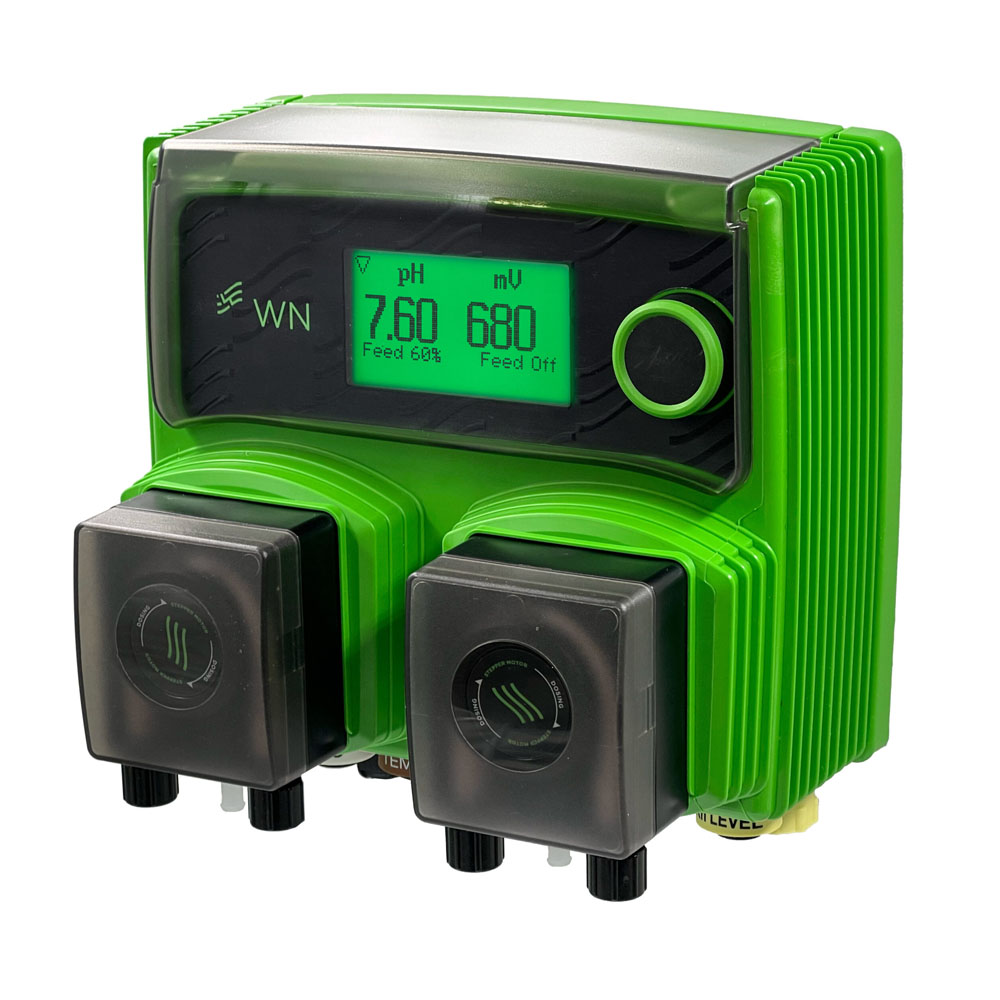

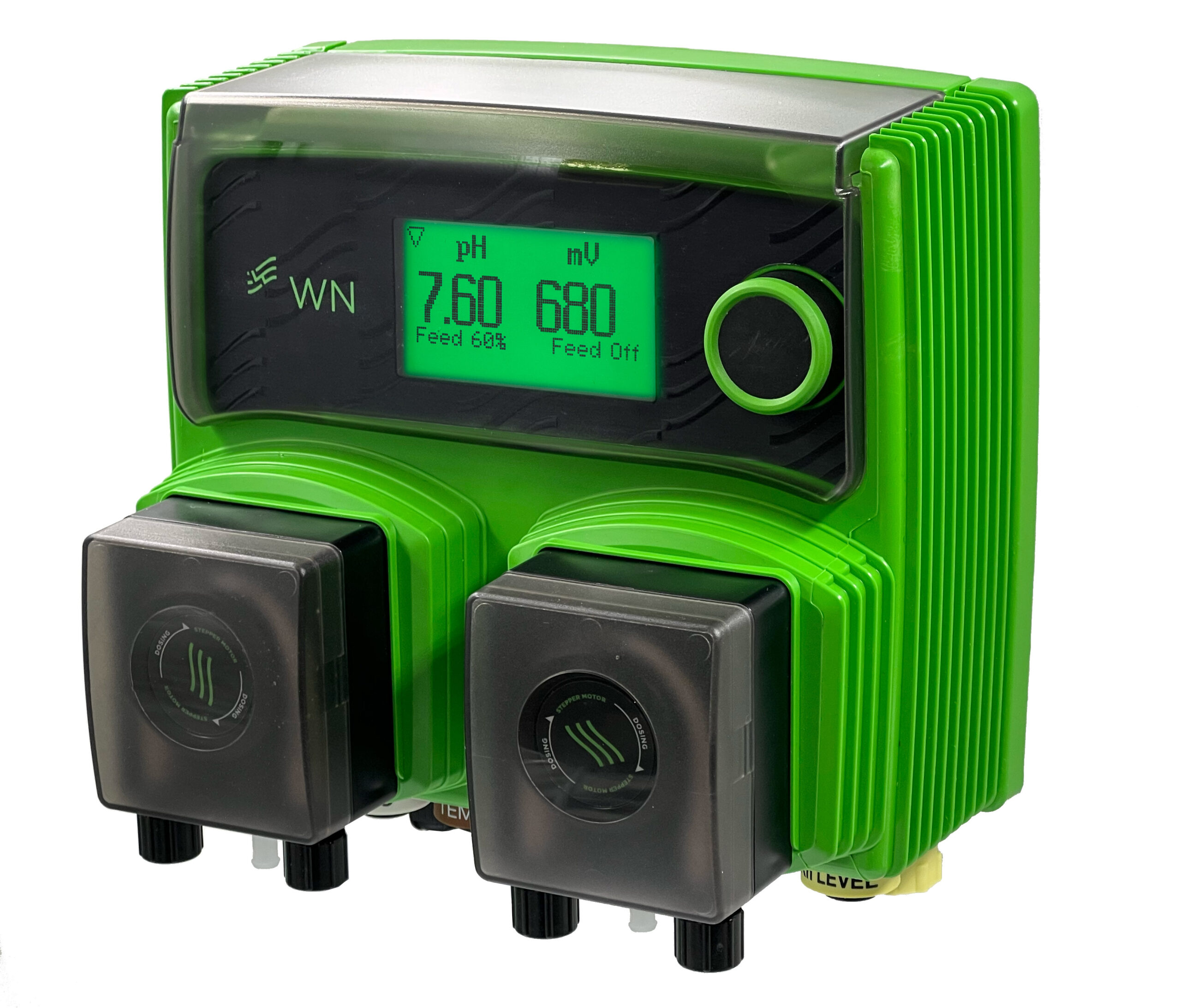

EMEC WNPHRH Pool Controller with Stepper Motor Pumps pH & ORP (12 l/hr max @ 2 bar)
- Auto Dosing feature- Simply set pool size and setpoints
- Includes Foot valves, Injection valves, Suction and discharge tubing
- Designed for Chlorine (ie. ORP) & Acid (ie. pH) Control in Swimming Pools
- Silent Self priming Stepper Motor peristaltic pumps
- Reliable & accurate dosing
- Floats on foot valves stop pumps dosing when chemical level in tanks is low – individually controlled for Chlorine & Acid Pumps
- Alarm Output
- Standby input stops both pumps (activated by contact closure)
- Remote control possible via WiFi
Description
EMEC WNPHRH Data Sheet R2025
WNPHRH_WNPHCL_WNPHPS Instruction Manual R101125
| Name |
|---|
|
EMEC WNPHRH Data Sheet R2025
|
|
WNPHRH_WNPHCL_WNPHPS Instruction Manual R101125
|
Additional information
| Configuration | Wall Mount |
|---|---|
| Variables Measured | Flow Status, ORP, pH |
| Inputs | Flow Switch Contact, ORP Probe, pH Probe, Standby Dry Contact, Tank Level Dry Contact |
| Outputs | Alarm Relay |
| Remote Comms | Via Optional LAN card, Via Optional Modem |
| Process Connection | 1/2 inch BSP Male |
| IP Rating | IP54 |
| Install Kit Included | 4x6mm tube, 2 x injection valves & 2 x foot valves with level floats |
| Optional Tube Size | 1/4 inch, 3/8 inch, 5×8 or 6x9mm |
