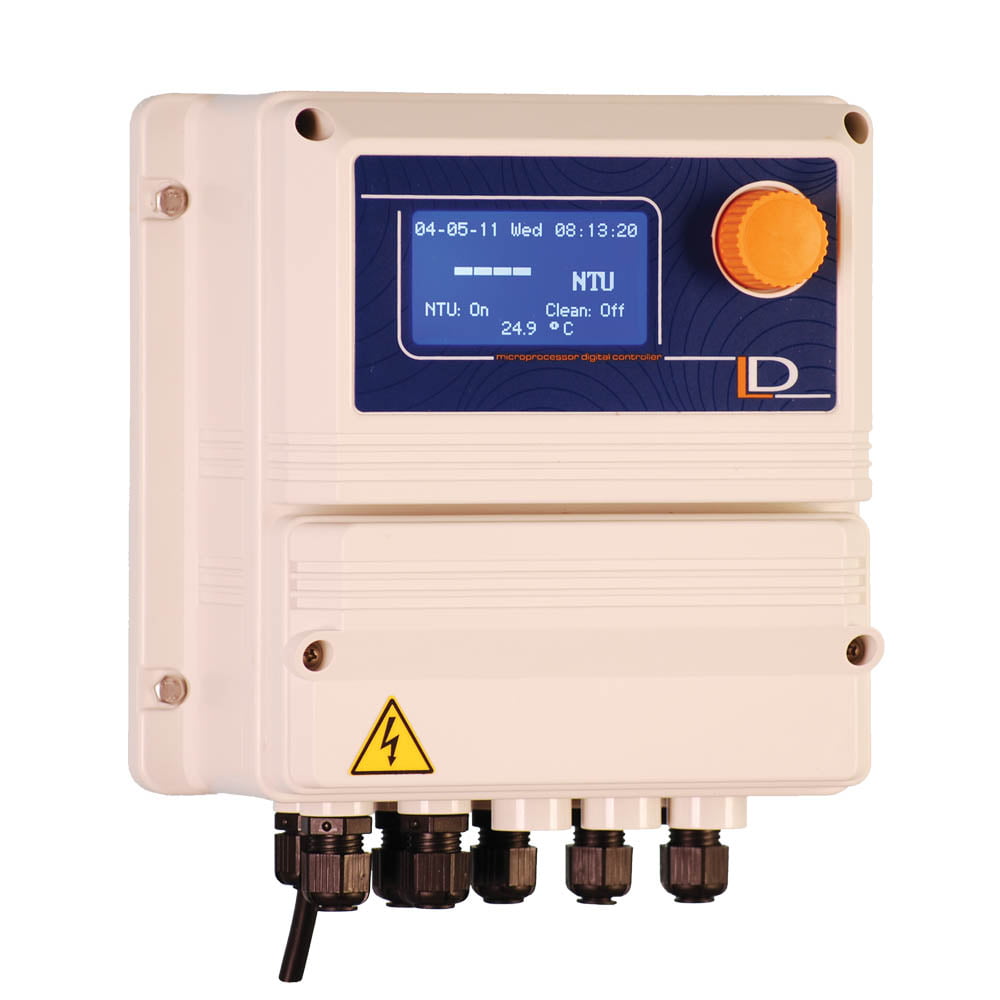

EMEC LDSTORB2 Turbidity Controller (for ETORB2)

  • Requires optional ETORB2 Offline Turbidity Probe with EMEC NPED-E2 Holder
  • 2 x ON/OFF outputs (for pulse output refer EMEC LDPHTORB2)
  • Dot matrix backlit LCD displays measured NTU, temperature, date & time
  • Programmable power-on delay
  • High and low NTU alarms, and max dosing alarms
  • 4-20mA for NTU & 4-20mA for temperature
  • Serial port for printer allows log printing
  • RS485 for remote control
  • Optional MODBUS RTU
  • Optional 4G modem or Ethernet/LAN card for remote connectivity via webserver and alarming via SMS/e-mail
Compare
SKU: EMEC LDSTORB2-mA Category: Tag: Brand:

Description

EMEC-LDSTORBH-and-LDSTORB2-Instruction-Manual-R10-09-18.pdf
LDS-LDS-PLUS-Data-Sheet-R3-05-19.pdf
EMEC-LDSTORBH-and-LDSTORB2-Instruction-Manual-R10-09-18.pdf
LDS-LDS-PLUS-Data-Sheet-R3-05-19.pdf
Name

Additional information

Configuration

Wall Mount

Variables Measured

Flow Status, Temperature, Turbidity (Offline Measurement)

Inputs

Flow Switch Contact, Standby Dry Contact, Tank Level Dry Contact, Turbidity Sensor

Outputs

4-20mA, Alarm Relay, Optional Modbus, Pulse, Switched Relays For Optional Pumps/Valves

Remote Comms

Via Optional LAN card, Via Optional Modbus, Via Optional Modem

IP Rating

IP65
