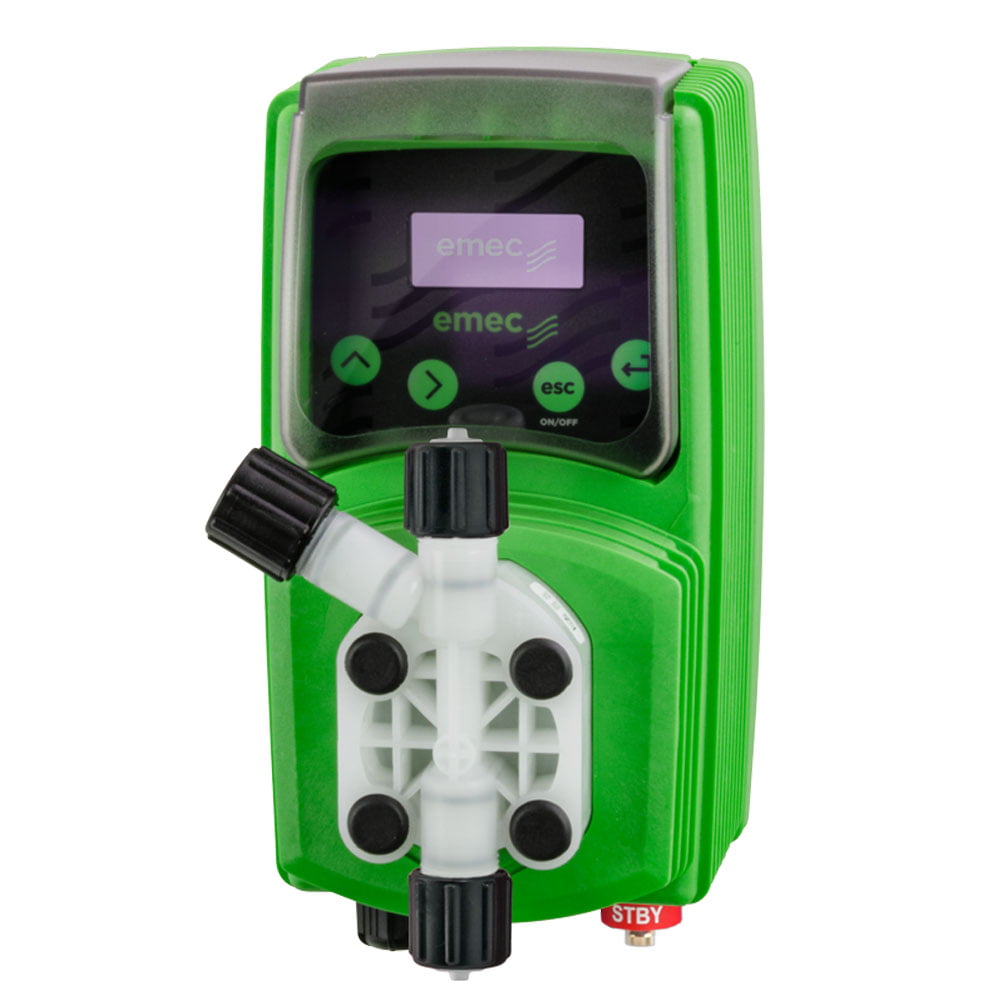

EMEC VMSPO Pump with pH Control (PVDF Head for Acid Dosing)
EMEC VMSPO Acid Pump with pH control (1 l/hr to 6 l/hr)
- Includes Installation Kit, i.e. foot valve, injection valve, 2m of Suction tube and 2m of Delivery tube
- Optional pH probe plugs directly into dosing pump
- PVDF head with Viton Seals (suitable for Acid) or PP head with EPDM Seals (suitable for Caustic)
- Speed adjustment automatic (demand dependent on pH reading)
- Float on foot valve stops pump dosing when chemical level in tank is low
- Double ball check valves in foot valve, suction & delivery valves
- Long lasting Solid Teflon diaphragm
- Reliable and accurate acid chemical dosing Pump
- Pump enable/standby input
- Simple mounting with only 2 screws
- Automatic chemical dosing system for swimming pools
- TIP: see available Models / Part Numbers below
SKU: EMEC VMSPO
Categories: Dosing Pumps incorporating pH & ORP, Fixed Stroke Length Solenoid Pumps, pH only
Tag: emec pumps
Brand: emec
Description
EMEC Chemical Compatibility Table April 2013
EMEC VMSPO 0706 FP Spare Parts Exploded Rev 01
EMEC VMSPO 0706 PP EP SS Spare Parts Exploded Rev 01
EMEC VMSPO Data Sheet R1-10-13
EMEC VMSPO Instruction Manual R1-03-15
| Name |
|---|
|
EMEC Chemical Compatibility Table April 2013
|
|
EMEC VMSPO 0706 FP Spare Parts Exploded Rev 01
|
|
EMEC VMSPO 0706 PP EP SS Spare Parts Exploded Rev 01
|
|
EMEC VMSPO Data Sheet R1-10-13
|
|
EMEC VMSPO Instruction Manual R1-03-15
|
Additional information
| Configuration | Wall Mount |
|---|---|
| Variables Measured | Level, pH |
| Inputs | pH Probe, Standby Dry Contact, Tank Level Dry Contact |
| Max Flow / Pressure (Head) | 1 l/hr @ 5 bar, 6 l/hr @ 7 bar |
| Process Connection | 1/2 inch BSP Male |
| Materials | Ceramic Balls, FKM B O-rings & Seats, PTFE Diaghragm/s, PVDF Head, PVDF Valve Bodies |
| Max Viscosity | 100 cps |
| IP Rating | IP65 |
| Install Kit Included | 4x6mm tube, injection valve & foot valve with level float |
| Optional Tube Size | 1/4 inch, 3/8 inch, 5×8 or 6x9mm |
Models / Part Numbers
- EMEC VMSPO 05 01 FP for Acid max 1 l/hr @ 5 bar Acid
- EMEC VMSPO 07 06 FP for Acid max 6 l/hr @ 7 bar Acid
- EMEC VMSPO 05 01 PP EP SS for Caustic max 1 l/hr @ 5 bar
- EMEC VMSPO 07 06 PP EP SS for Caustic max 6 l/hr @ 7 bar
