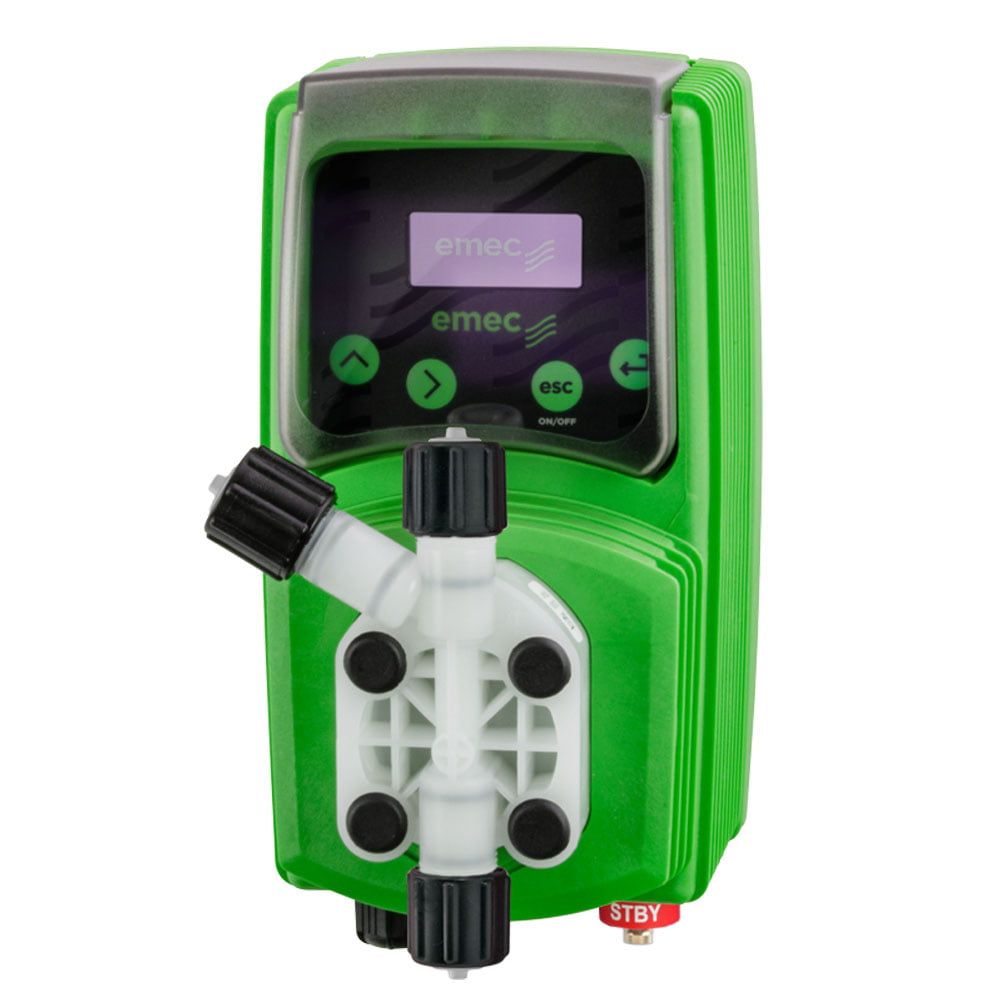

EMEC VMSAPO Pump with ORP Control (PVDF Head for Chlorine Dosing)
EMEC VMSAPO Chlorine Pump with ORP Control (4 l/hr to 12 l/hr)
- Includes Installation Kit, i.e. foot valve, injection valve, 2m of Suction tube and 2m of Delivery tube
- Optional ORP probe plugs directly into dosing pump
- PVDF de-gassing (self venting) with Viton Seals
- Speed adjustment automatic (demand dependent on ORP reading)
- Float on foot valve stops pump dosing when chemical level in tank is low
- Double ball check valves in foot valve, suction & delivery valves
- Long lasting Solid Teflon diaphragm
- Reliable and accurate chlorine transfer and dosing pump
- Pump enable/standby input
- Simple mounting with only 2 screws
- TIP: see available Models / Part Numbers below
SKU: EMEC VMSAPO
Categories: Dosing Pumps incorporating pH & ORP, Fixed Stroke Length Solenoid Pumps, ORP only
Tag: emec pumps
Brand: emec
Description
EMEC Chemical Compatibility Table April 2013
EMEC VMSAPO 0704 FP Spare Parts Exploded Rev 01
EMEC VMSPO Data Sheet R1-10-13
EMEC VMSPO Instruction Manual R1-03-15
| Name |
|---|
|
EMEC Chemical Compatibility Table April 2013
|
|
EMEC VMSAPO 0704 FP Spare Parts Exploded Rev 01
|
|
EMEC VMSPO Data Sheet R1-10-13
|
|
EMEC VMSPO Instruction Manual R1-03-15
|
Additional information
| Configuration | Wall Mount |
|---|---|
| Variables Measured | Level, ORP |
| Inputs | ORP Probe, Standby Dry Contact, Tank Level Dry Contact |
| Max Flow / Pressure (Head) | 12 l/hr @ 2 bar, 4 l/hr @ 7 bar |
| Process Connection | 1/2 inch BSP Male |
| Materials | Ceramic Balls, FKM B O-rings & Seats, PTFE Diaghragm/s, PVDF Head, PVDF Valve Bodies |
| Max Viscosity | 100 cps |
| IP Rating | IP65 |
| Install Kit Included | 4x6mm tube (<12 l/hr) or 6x8mm tube (12 l/hr or more), injection valve & foot valve with level float |
| Optional Tube Size | 1/4 inch, 3/8 inch, 5×8 or 6x9mm |
Models / Part Numbers
- EMEC VMSAPO 07 04 FP for max 4 l/hr @ 7 bar (PVDF degassing head)
- EMEC VMSAPO 02 12 FP for max 12 l/hr @ 2 bar (PVDF degassing head)
