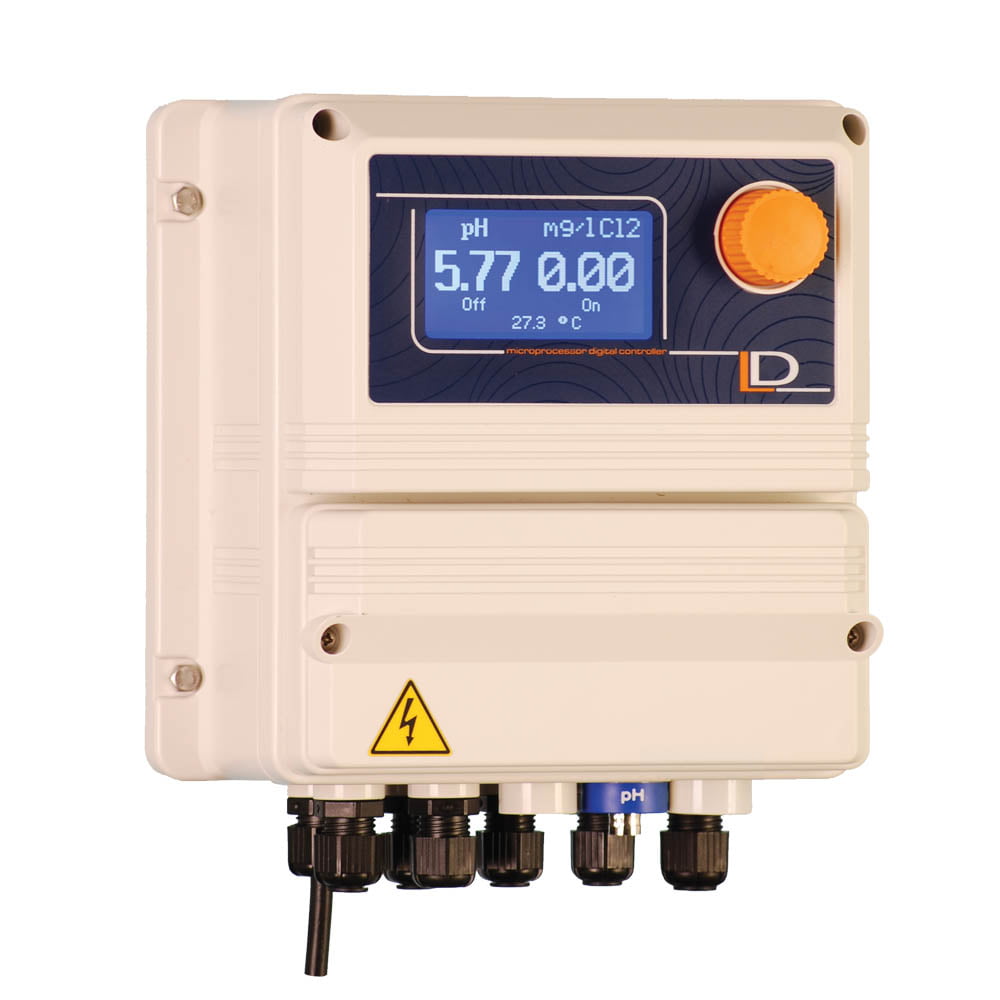

EMEC LDPHCL XS0SG001T Controller for SCL Amperometric Sensors
- Programmable for dosing Acid and Chlorine
- Proportional or On/Off Control for pH and Chlorine
- Outputs: 1 x pH 240Vac Relay, 2 x pH Pulse, 1 x Cl2 240Vac Relay, 1 x Cl2 Pulse, 3 x mA for pH, Cl2 & Temp,
- Tanks level inputs: 2 x pH, 1 x Cl2
- Other I/O: 1 x Standby I/P, 1 x 240Vac Alarm Relay O/P, 1 x RS485 O/P
- LCD display shows measured pH and Chlorine (mg/L)
- Manual/Automatic Temperature Compensation (for pH only)
- Max dosing alarms
- Optional Modbus RTU, or 4G modem or Ethernet/LAN/WiFi card for remote connectivity via webserver and alarming via SMS/e-mail. Refer Models/Part Numbers tab for different variants
- ERMES Ready – Remote access via 4G, WiFi, Ethernet with live readings
SKU: EMEC LDPHCL XS0SG001T
Categories: Cl & pH/Cl Controllers, Controllers & Components for SCL Amperometric Sensors, pH & Cl2 Closed Cell, Pool Controllers
Tag: emec controllers
Brand: emec
Description
EMEC LD Dual & LD Dual PLUS Data Sheet R2-06-20
EMEC LDPHCL Instruction Manual R5-03-22
Quick_Guide_LDPHCL_PLUS
| Name |
|---|
|
|
|
EMEC LD Dual & LD Dual PLUS Data Sheet R2-06-20
|
|
EMEC LDPHCL Instruction Manual R5-03-22
|
|
Quick_Guide_LDPHCL_PLUS
|
Additional information
| Configuration | Wall Mount |
|---|---|
| Variables Measured | Cl2, CLO2, Flow Status, H2O2, pH, Temperature |
| Inputs | Amperometric Sensor, Flow Switch Contact, pH Probe, Standby Dry Contact, Tank Level Dry Contact |
| Outputs | 4-20mA, Alarm Relay, Optional Modbus, Pulse, Switched Relays For Optional Pumps/Valves |
| Remote Comms | Via Optional LAN card, Via Optional Modbus, Via Optional Modem |
| IP Rating | IP65 |
Models / Part Numbers
- EMEC LDPHCL BS0SG001T for controller without comms options
- EMEC LDPHCL SS0SG001T for controller with Modbus RTU card fitted
- EMEC LDPHCL AS0SG001T for controller with 4G modem fitted
