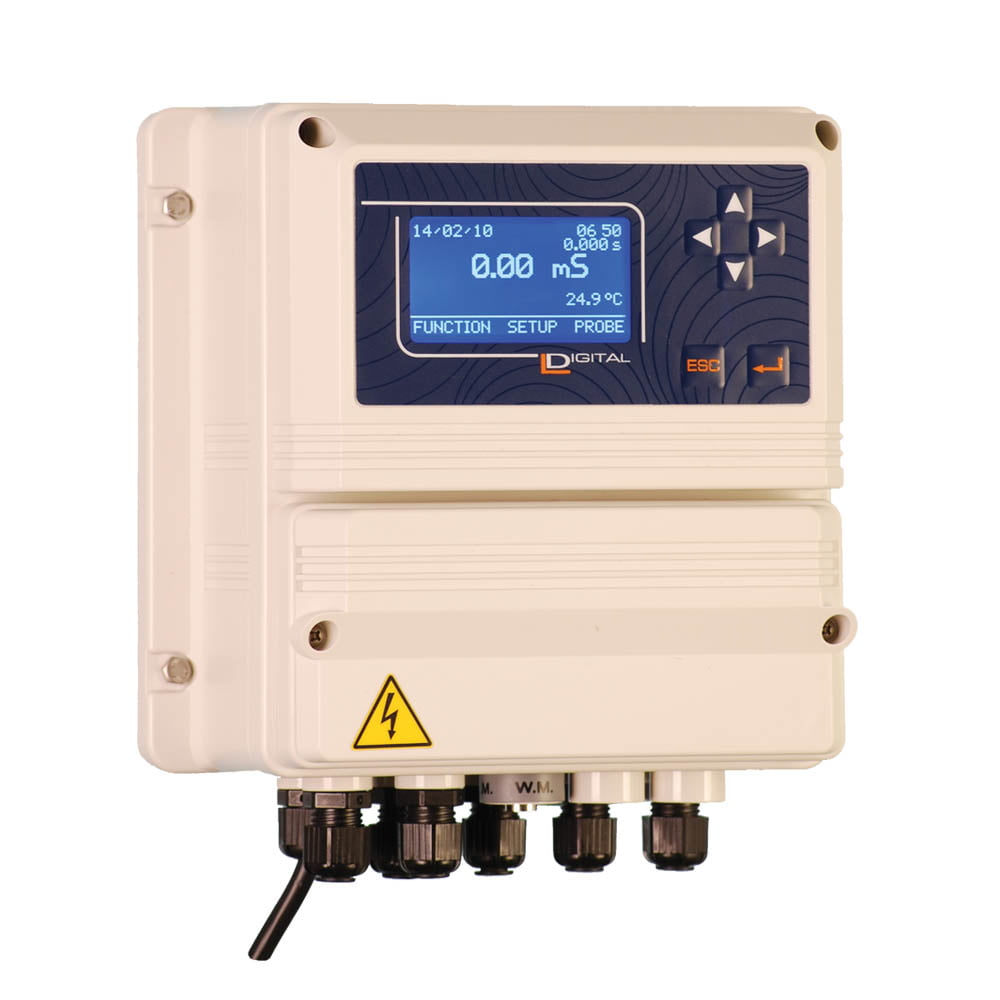

EMEC LDCDHT High Temperature Conductivity Controller 1
EMEC LDCDHT High Temperature Conductivity Controller
- Bleed control for reducing scale formation via optional system
- 2 x Proportional Outputs & 2 x ON/OFF outputs
- Dot matrix backlit LCD displays measured Conductivity, temperature, date & time
- Automatic Temperature Compensation
- Programmable power-on delay
- High and low Conductivity alarms, and max Bleed alarms
- 4-20mA for Conductivity & 4-20mA for temperature
- Serial port for printer allows log printing
- RS485 for remote control
- Programmable cleaning output
- Compatible Sensors: EMEC EICDHPT/x
- Temp compensation range 0-200°C
Description
EMEC LDCD Data Sheet R2-01-07
EMEC LDCD Instruction Manual R2-01-07
| Name |
|---|
|
EMEC LDCD Data Sheet R2-01-07
|
|
EMEC LDCD Instruction Manual R2-01-07
|
Additional information
| Configuration | Wall Mount |
|---|---|
| Variables Measured | Conductivity, Flow Status, Temperature |
| Inputs | Conductivity Probe with Electrodes & PT100, Flow Switch Contact, Standby Dry Contact, Tank Level Dry Contact |
| Outputs | 4-20mA, Alarm Relay, Pulse, Switched Relays For Optional Pumps/Valves |
| IP Rating | IP65 |
