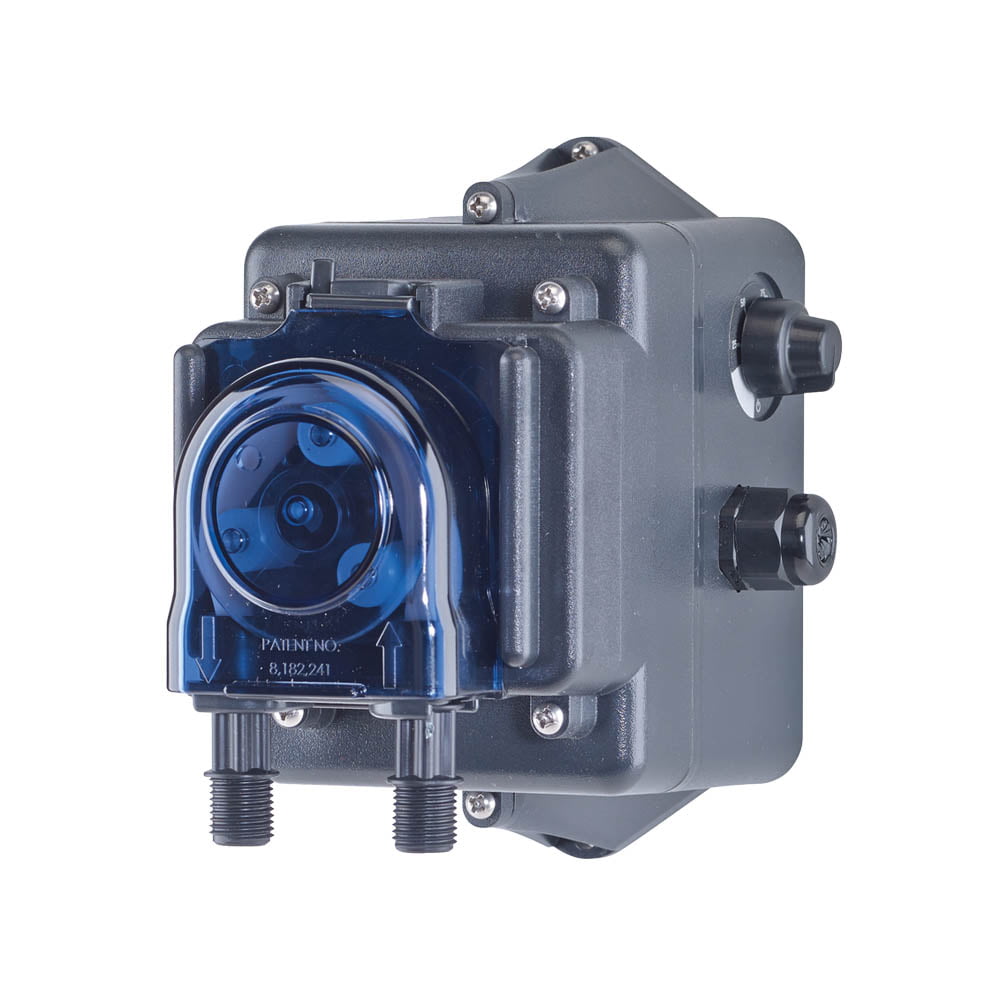

STEN E20VX Peristaltic Pump, Variable Speed 6.1 l/hr max, 5.5 bar max

  • Designed for continuous operation
  • Self priming up to 7.6m suction
  • Variable speed with 8:1 turndown
  • Does not lose prime or vapour lock
  • Easy maintenance
  • Santoprene squeeze tube (2 included) requires no lubrication
  • Pump tube & Check Valve Duckbill:  Santoprene, FDA Approved
  • Suction/Discharge tubing, Ferrules:  PE, FDA Approved
  • Reliable & Accurate Dosing
  • 250 VAC 50Hz
Compare
SKU: STEN E20VX Category: Brand:

Description

STEN E10-E20-VX Instruction Manual
STEN E10VXAK5SK_E20VXCK5SK - Spare Parts Exploded Rev 01
STEN E10VXHK5SK_E20VXHK5SK Spare Parts Exploded Rev 01
STEN ECON Brochure
STEN ECON VX Data Sheet
Stenner Chemical Resistance Chart
STEN E10-E20-VX Instruction Manual
STEN E10VXAK5SK_E20VXCK5SK - Spare Parts Exploded Rev 01
STEN E10VXHK5SK_E20VXHK5SK Spare Parts Exploded Rev 01
STEN ECON Brochure
STEN ECON VX Data Sheet
Stenner Chemical Resistance Chart
Name

Additional information

Configuration

Wall Mount, Foot Mount with Optional Bracket

Max Flow / Pressure (Head)

0.43 – 3.7 l/hr @ 5.5 bar, 0.69 – 6.1 l/hr @ 1.7 bar

Materials

PP Suction and discharge tubing & ferrules, Santoprene Squeeze tube & check valve duckbill, Tube & Injection fittings Type 1 PVC or PP

Max Viscosity

100 cps

IP Rating

IP44

Install Kit Included

6mm tubing, spare squeeze tube, injection valve & suction filter weight

Optional Tube Size

3/8 inch

Models / Part Numbers

  • STEN E20VXCK5SK for 0.69 – 6.1 l/hr @ 1.7 bar
  • STEN E20VXHK5SK for 0.43 – 3.7 l/hr @ 5.5 bar
