MIXTRON-P150

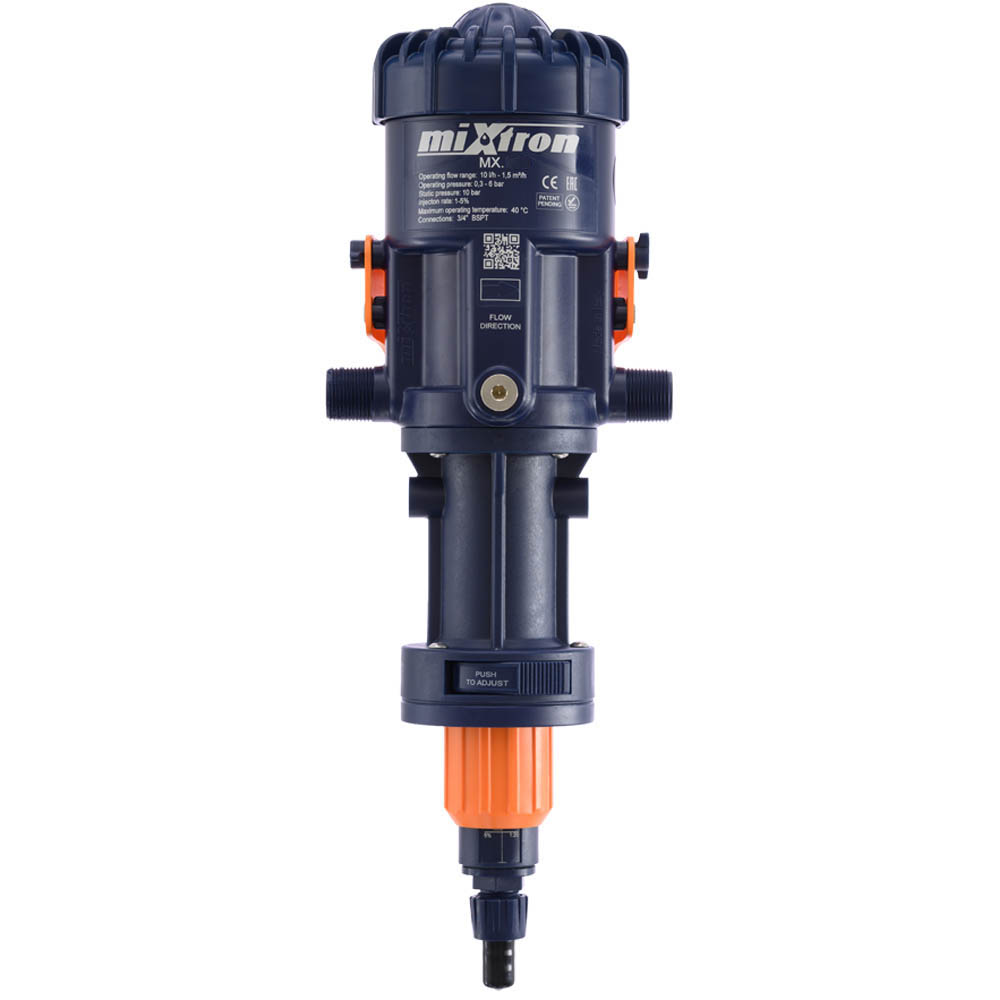

MIXTRON P150 Water Powered Dosing Pump with 1-5% Proportional Dosing
The Mixtron P150 water-powered dosing pump is engineered for precise, efficient dosing with a 1-5% dosing ratio. This versatile water dosing pump is ideal for applications in livestock, fertigation, and metalworking lubrication, providing consistent performance without the need for electricity. The Mixtron dosing pump’s proportional dosing system adapts to water flow rates, ensuring accurate dosing every time.
Key Features:
- Dosing Ratio: Adjustable from 1-5% of water flow rate
- Applications: Perfect for livestock care, fertigation dosing, and metalworking lubrication
- Eco-Friendly Operation: Powered solely by water flow, eliminating energy costs
- Complete Installation Kit: Includes bracket, 1.5m suction tube, and foot filter
- Optional Suction Hose Extension: 12x17mm suction hose available (order part no. MX 1840002 by the metre)
The Mixtron P150 water-powered dosing pump is a reliable choice for those needing precise, flow-responsive dosing in demanding environments.
Description
High Flow Installation Instructions
MIXTRON Pump Selection Guide for Dosing Rates
Mixtron Full Product Brochure 2019
Mixtron MX Pumps Data Sheet 0518 rev2
Mixtron MX Pumps Operation and Maintenance Manual Dec 19
Mixtron Product Summary 2023
Mixtron Pump in Action
| Name |
|---|
|
High Flow Installation Instructions
|
|
MIXTRON Pump Selection Guide for Dosing Rates
|
|
Mixtron Full Product Brochure 2019
|
|
Mixtron MX Pumps Data Sheet 0518 rev2
|
|
Mixtron MX Pumps Operation and Maintenance Manual Dec 19
|
|
Mixtron Product Summary 2023
|
|
Mixtron Pump in Action
|
Additional information
| Configuration | Wall Mount |
|---|---|
| Max Pressure / Temp | 0.3 – 6 bar water pressure / 5 – 40°C |
| Process Connection | 3/4 inch BSPT Male |
| Materials | POM/PP/HDPE, VITON Seals (EDPM on request) |
| Max Viscosity | 400 Centistokes @ 25 deg Celsius |
| IP Rating | IP68 (Mount Out of Direct Sun) |
| Install Kit Included | Bracket, 1.5m suction tube & foot filter |
Models / Part Numbers
Water Flow Rates:
- MX 075 P150 (5 – 750 l/hr, 0.75 m3/hr max)
- MX 150 P150 (5 – 1500 l/hr, 1.5 m3/hr max)
- MX 250 P150 (10 – 2500 l/hr, 2.5 m3/hr max)
- MX 300 P150 (10 – 3000 l/hr, 3 m3/hr max)
