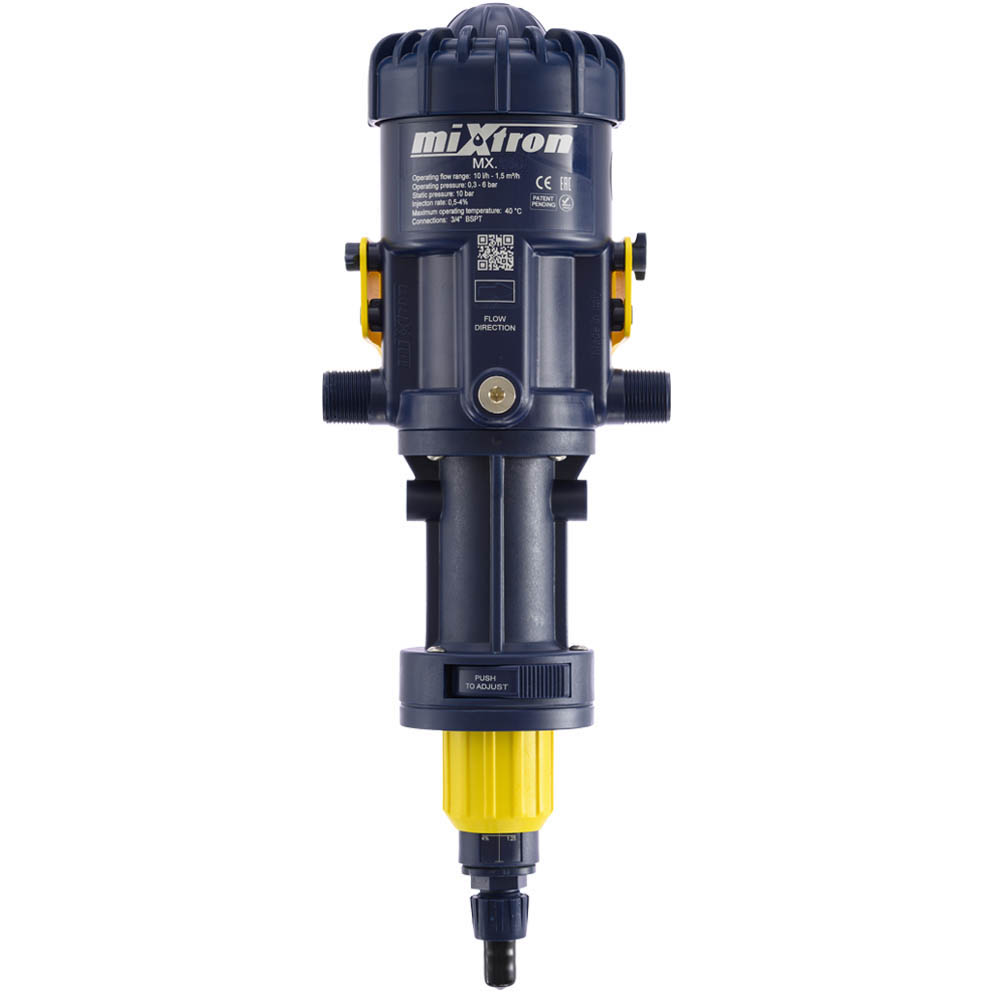

MIXTRON P054 Water Powered Dosing Pump 0.5 – 4%

  • Water powered dosing pumps, Water powered proportional dosing pumps, Water driven dosing pumps, Water driven proportional dosing pumps, Fertiliser Injector
  • Dosing Ratio: 0.5 – 4 % of water flow rate
  • Applications:  Livestock, Fertigation, Car Washing
  • Includes: Bracket, 1.5m suction tube & foot filter (for more 12x17mm suction hose, order part no MX 1840002, per metre)






Water Flow Rates:

  • Model MX 075 P054 (5 – 750 l/hr, 0.75 m3/hr max)
  • Model MX 150 P054 (5 – 1500 l/hr, 1.5 m3/hr max)
  • Model MX 250 P054 (10 – 2500 l/hr, 2.5 m3/hr max)
  • Model MX 300 P054 (10 – 3000 l/hr, 3 m3/hr max)



Compare
SKU: MX xxx P054 Category: Brand:

Description

Welcome to Mixtron by CWC

High Flow Installation Instructions
MIXTRON Pump Selection Guide for Dosing Rates
Mixtron Full Product Brochure 2019
Mixtron MX Pumps Data Sheet 0518
Mixtron MX Pumps Installation and Instruction Manual- English
Mixtron Pump in Action
High Flow Installation Instructions
MIXTRON Pump Selection Guide for Dosing Rates
Mixtron Full Product Brochure 2019
Mixtron MX Pumps Data Sheet 0518
Mixtron MX Pumps Installation and Instruction Manual- English
Mixtron Pump in Action
Name

Additional information

Configuration

Wall Mount

Max Pressure / Temp

0.3 – 6 bar water pressure / 5 – 40°C

Process Connection

3/4 inch BSPT Male

Materials

POM/PP/HDPE, VITON Seals (EDPM on request)

Max Viscosity

400 Centistokes @ 25 deg Celsius

IP Rating

IP68 (Mount Out of Direct Sun)

Install Kit Included

Bracket, 1.5m suction tube & foot filter
