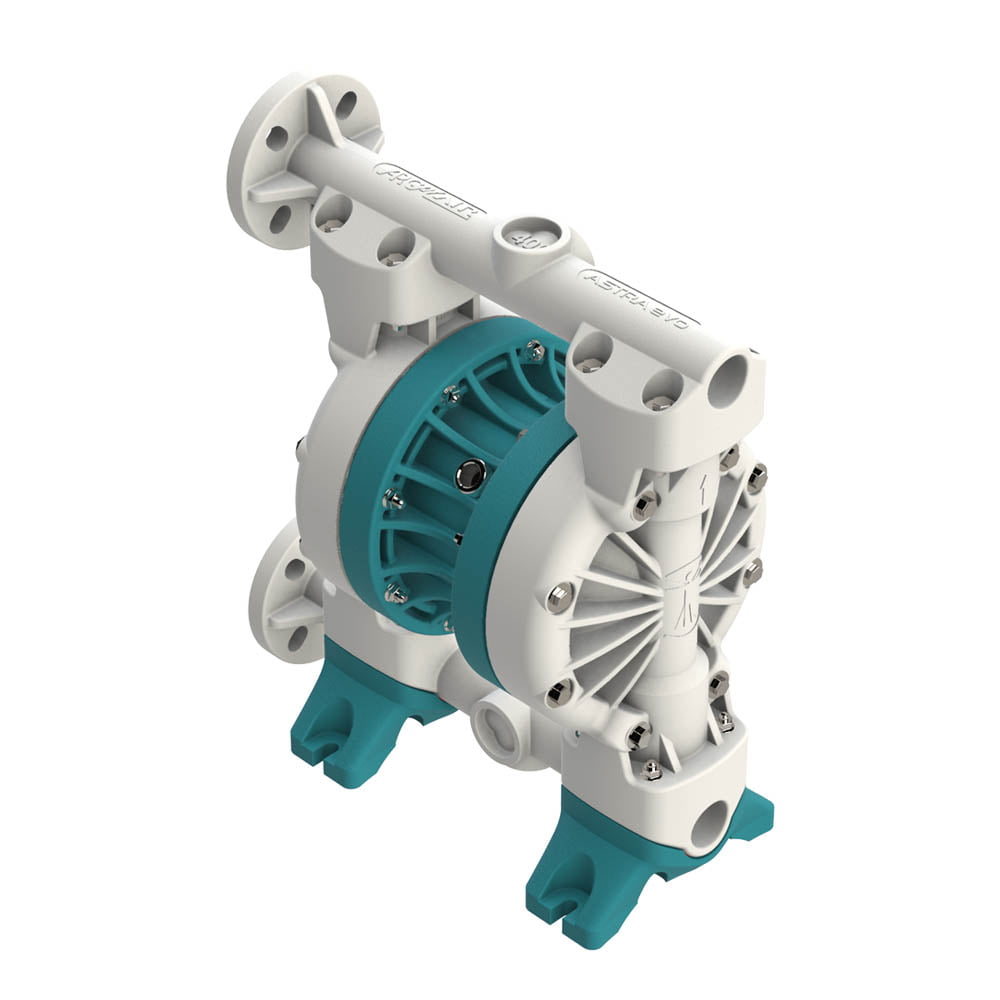

ARG DDE 400

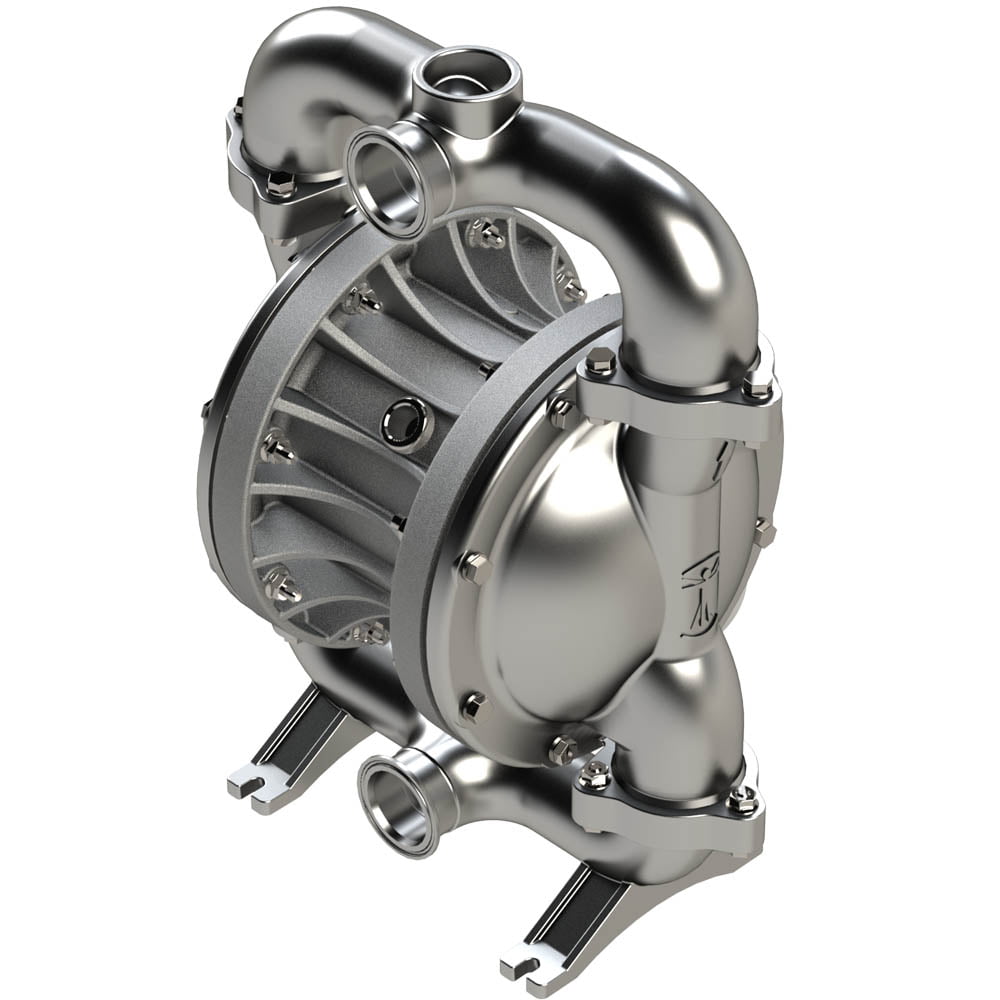

ARG DDE 400 SPN (AISI 316L E.L.)

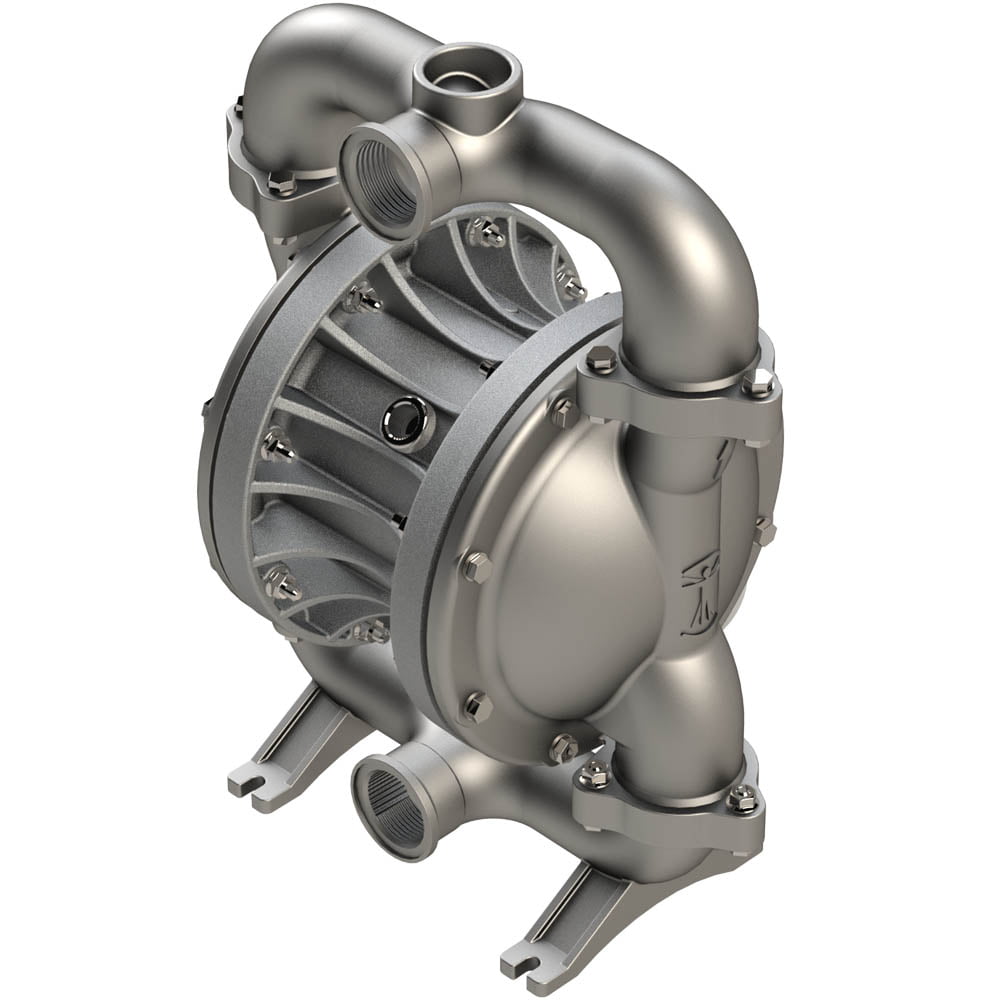

ARG DDE 400 SS (AISI 316L)

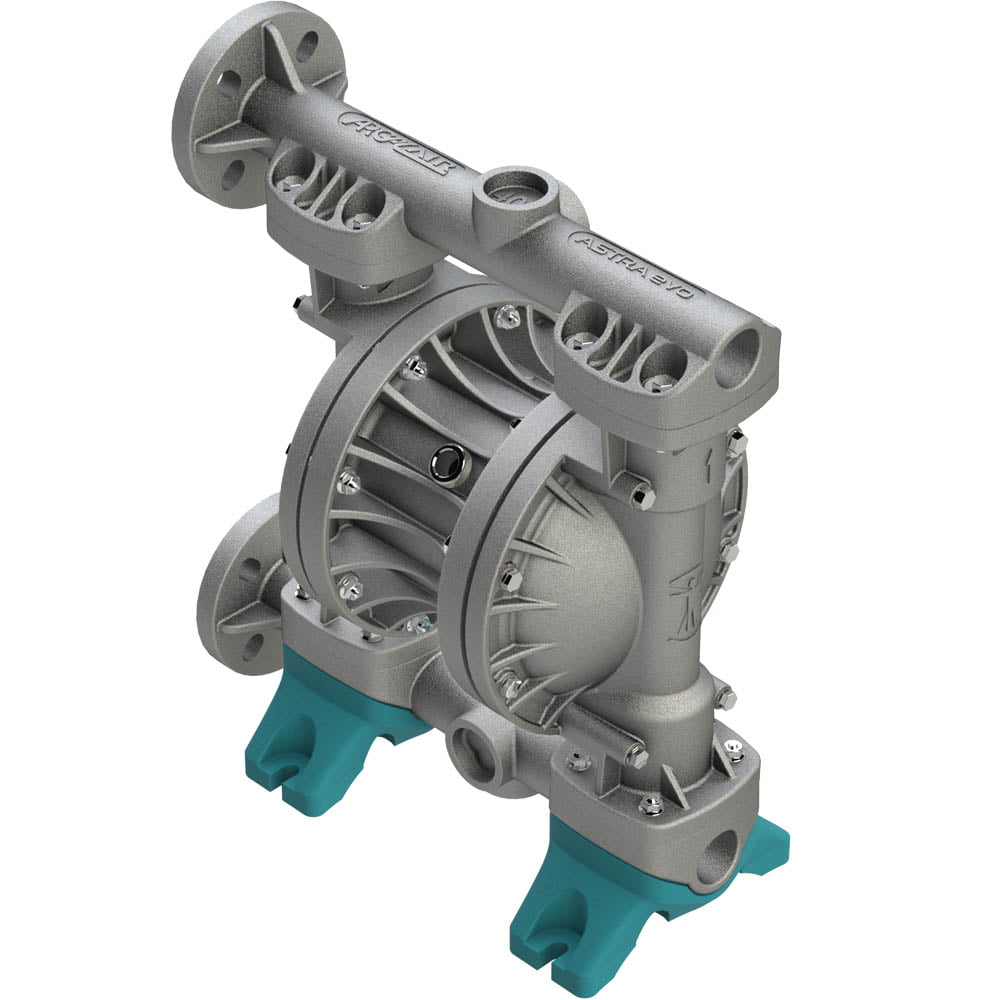

ARG DDE 400 ALU (AL)

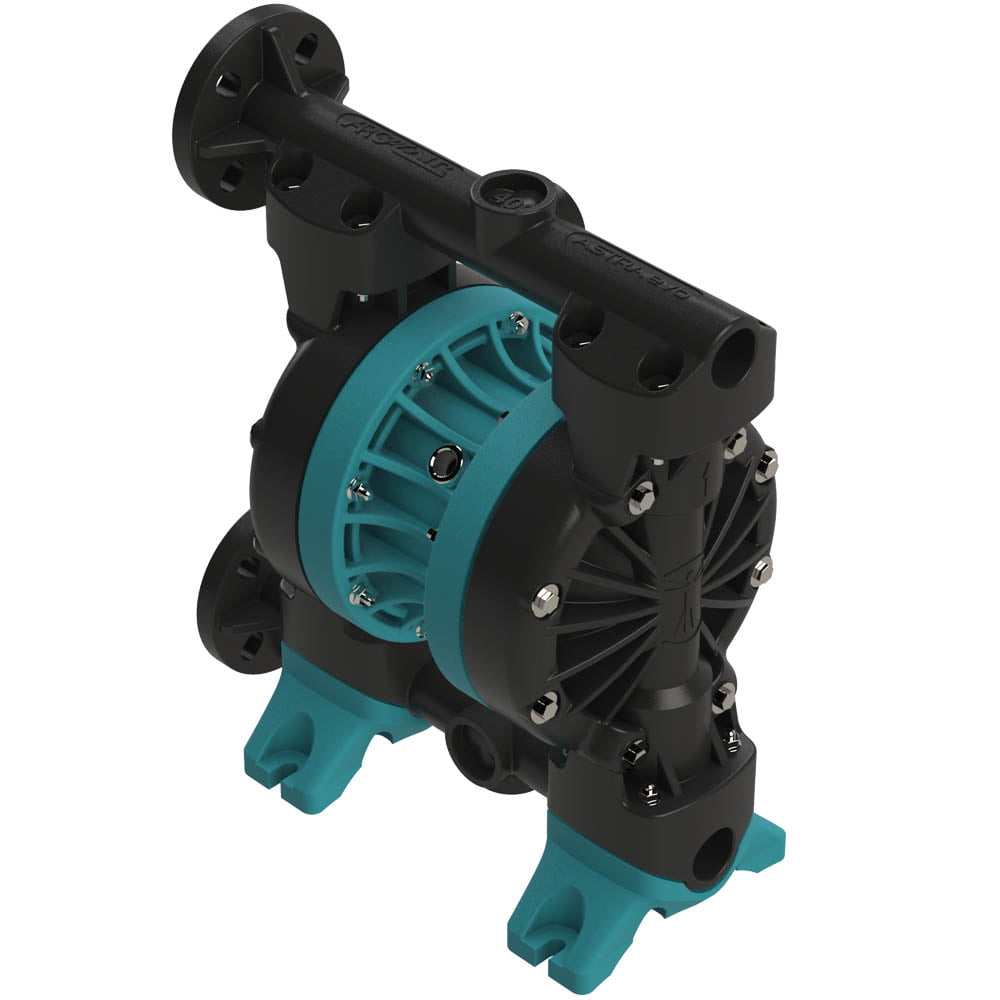

ARG DDE 400 FC (PVDF+CF)

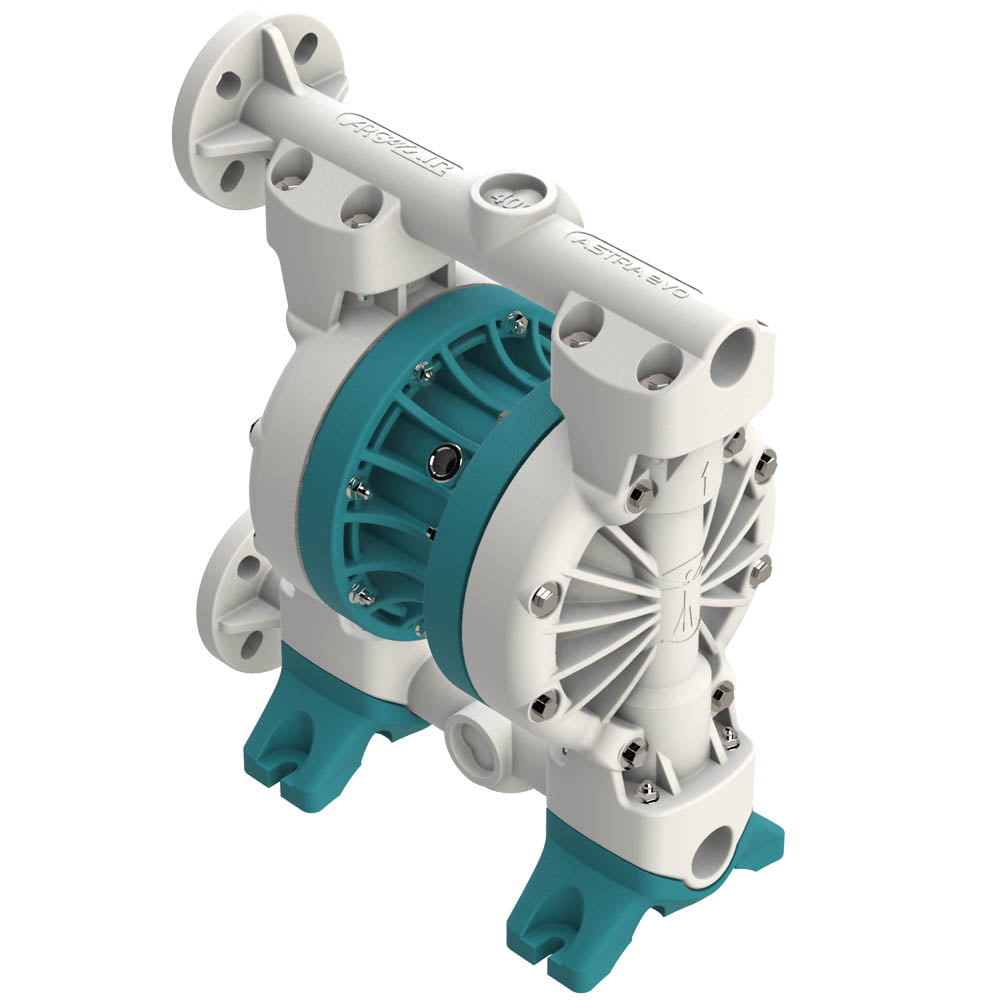

ARG DDE 400 WR (PP+GFR)
Argal DDE 400 AODD Pump | 1-1/2 Inch 375 L/Min High-Performance AODD Pump
The Argal DDE 400 AODD pump offers reliable performance for chemical and industrial applications. Designed with advanced technology, this Argal pump ensures precision, durability, and efficiency with its 375 L/min max flow rate and flexible installation options.
Features:
- Flow Rate: 1-1/2 inch pump, capable of 375 L/min for efficient fluid transfer.
- Versatile Installation: Suitable for self-priming, flooded, or submerged applications.
- Durable Design: Unstallable pump design with a maximum head of 80m.
- Material Options: Wetted constructions available in Polypropylene, PVDF, Stainless Steel (SS), and Aluminium for chemical compatibility.
- Diaphragm Options: Santoprene and PTFE for enhanced chemical resistance.
- Seal Options: EPDM or Viton O-rings to meet diverse operating conditions.
- FDA-Compliant Models: Electro-polished SS316 options (ASTRAevoFOOD DDE SPN) for food-grade and pharmaceutical use.
- ATEX Versions: Certified for safe operation in hazardous environments.
The Argal DDE 400 is a robust and versatile Argal pompe designed to meet high-performance needs in industrial and chemical processes.
Description
ARG DDE 400 AL 5101 Data Sheet rev 1.0
ARG DDE 400 SP 5103 Data Sheet rev 3.0
ARG DDE 400 SS 5102 Data Sheet rev 1.0
ARG DDE 400 WR & FC 5099 FLANGE Data Sheet rev 1.0
ARG DDE 400 WR & FC 5100 BSP Data Sheet rev 1.0
ARGAL AIR AODD pumps summary 2023
ARGAL AODD ASTRA EVO DDE Pumps Brochure 2022.pdf
ARGAL AODD ASTRA EVO FOOD DDE SP Pumps Brochure 2019
ARGALAIR Production Program 2023
Argal DDE Pump Identification Codes 2022 Rev 14
EN-ASTRAevo-DDE-user-manual-rev18-2024 (1)
| Name |
|---|
|
|
|
ARG DDE 400 AL 5101 Data Sheet rev 1.0
|
|
ARG DDE 400 SP 5103 Data Sheet rev 3.0
|
|
ARG DDE 400 SS 5102 Data Sheet rev 1.0
|
|
ARG DDE 400 WR & FC 5099 FLANGE Data Sheet rev 1.0
|
|
ARG DDE 400 WR & FC 5100 BSP Data Sheet rev 1.0
|
|
ARGAL AIR AODD pumps summary 2023
|
|
ARGAL AODD ASTRA EVO DDE Pumps Brochure 2022.pdf
|
|
ARGAL AODD ASTRA EVO FOOD DDE SP Pumps Brochure 2019
|
|
ARGALAIR Production Program 2023
|
|
Argal DDE Pump Identification Codes 2022 Rev 14
|
|
EN-ASTRAevo-DDE-user-manual-rev18-2024 (1)
|
Additional information
| Configuration | Foot Mount |
|---|---|
| Max Flow / Pressure (Head) | Refer curves in Data Sheets |
| Port Size | 1-1/2 inch Flange or BSP Female |
| Materials | Refer to Data Sheets |
| Max Viscosity | Refer to curves in DDE Pumps Brochure |
