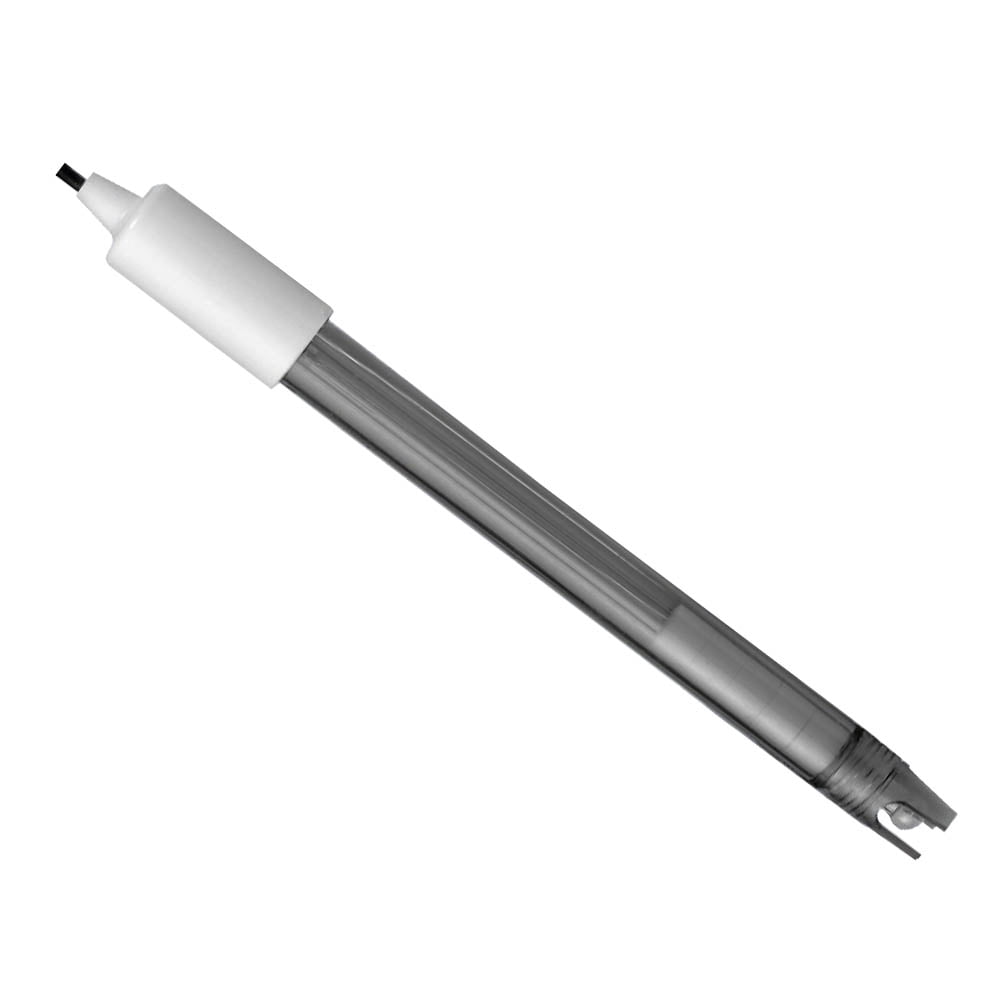

WA SOTA-PH Laboratory Use pH Electrode 1
WA SOTA-PH pH Probe for Laboratory Use
- Includes Quick-Removeable Bottle-Cap Storage Solution
- 12mm Smooth Polymer Body
- Removeable Protectiive Guard for Easy Cleaning
- 100°C at 0.3 Bar (Operation at Atmospheric Pressure)
- 0-14pH Measuring Range
- 1m Cable (2m Cable Optional, part number: WA SOTA-PH-2M
- Optional Submersible Connector type probe with TOP68 cable of various lengths available
Description
AN040-pH-ORP-Electrode-Questionnaire-v1.0.pdf
WA-SOTA-PH-Data-Sheet.pdf
pH-Sensors-Instruction-Manual.pdf
| Name |
|---|
|
AN040-pH-ORP-Electrode-Questionnaire-v1.0.pdf
|
|
WA-SOTA-PH-Data-Sheet.pdf
|
|
pH-Sensors-Instruction-Manual.pdf
|
Additional information
| Variables Measured | pH |
|---|---|
| Outputs | pH |
| Max Pressure / Temp | 3.5 bar @ 80°C |
| Process Connection | 12mm Diameter Smooth Body |
| Materials | Polymer Body |
| IP Rating | IP65 |
