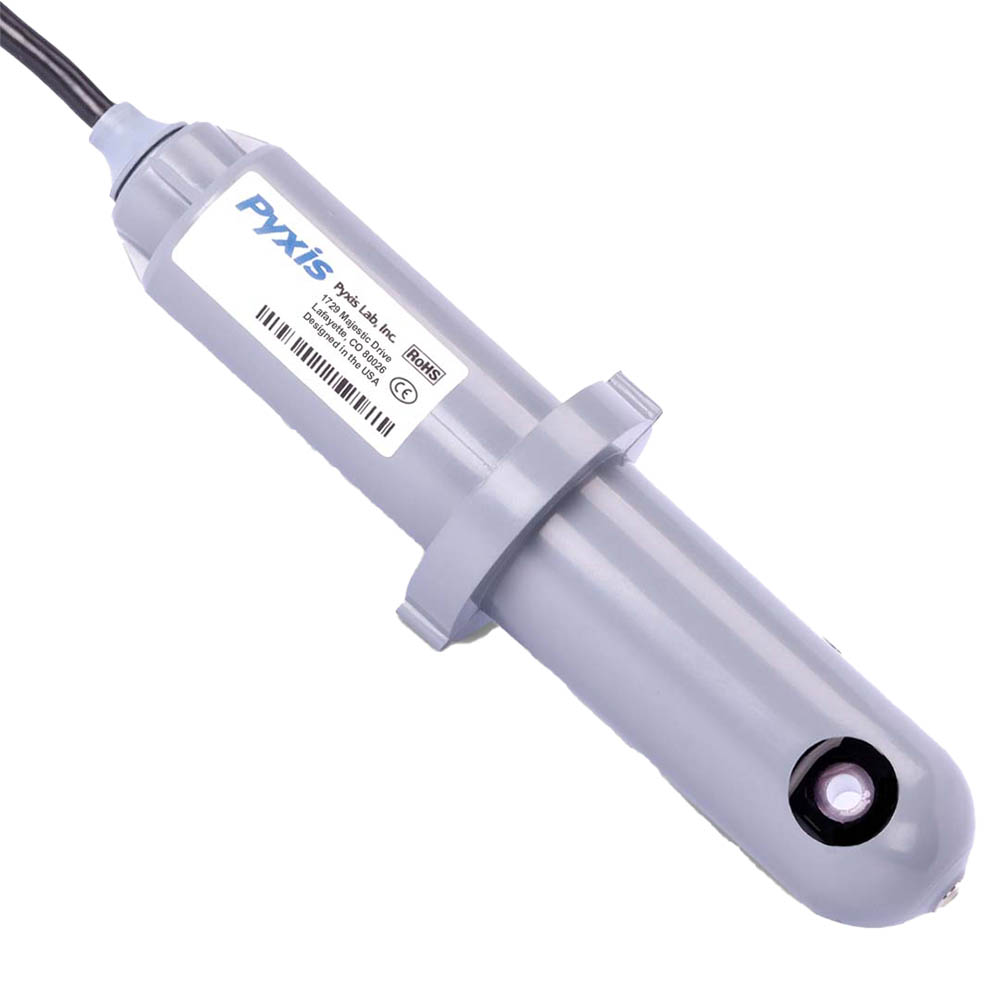

HM-500 Oil In Water Sensor

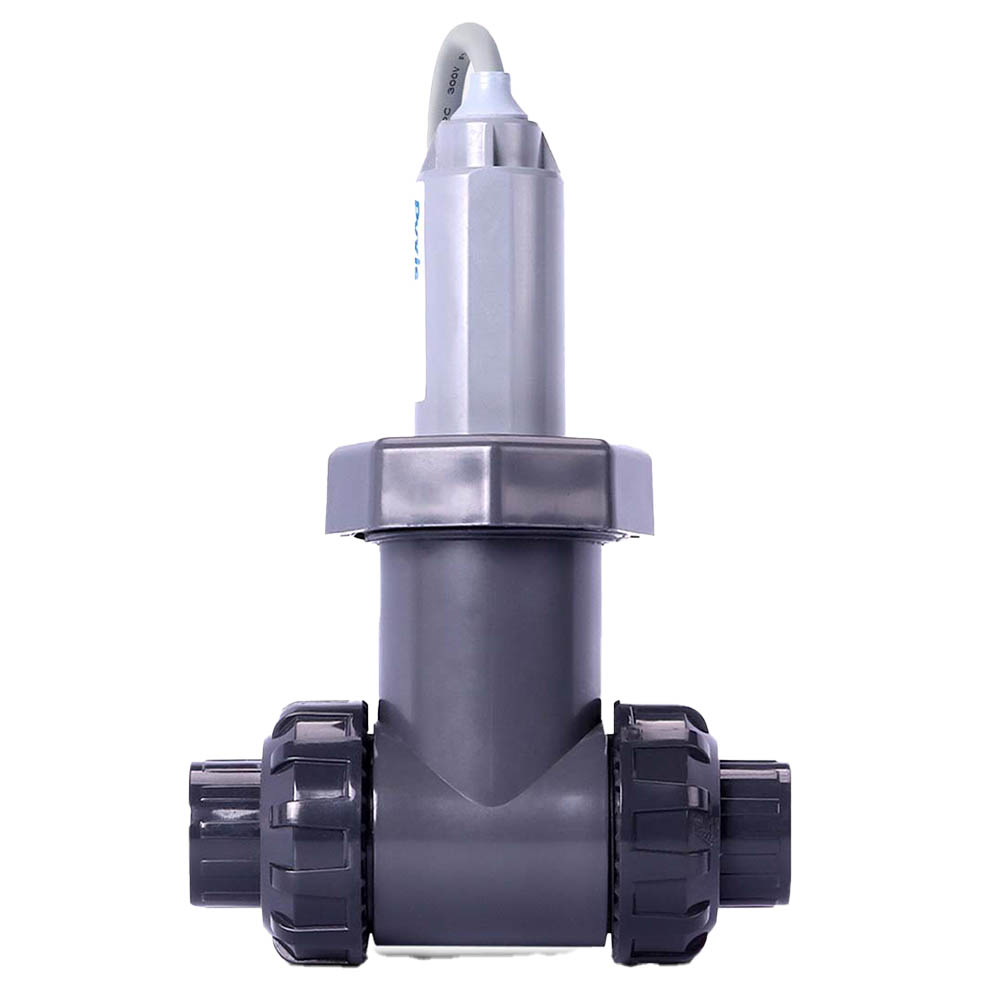

HM-500 Oil In Water Sensor in Tee Assembly

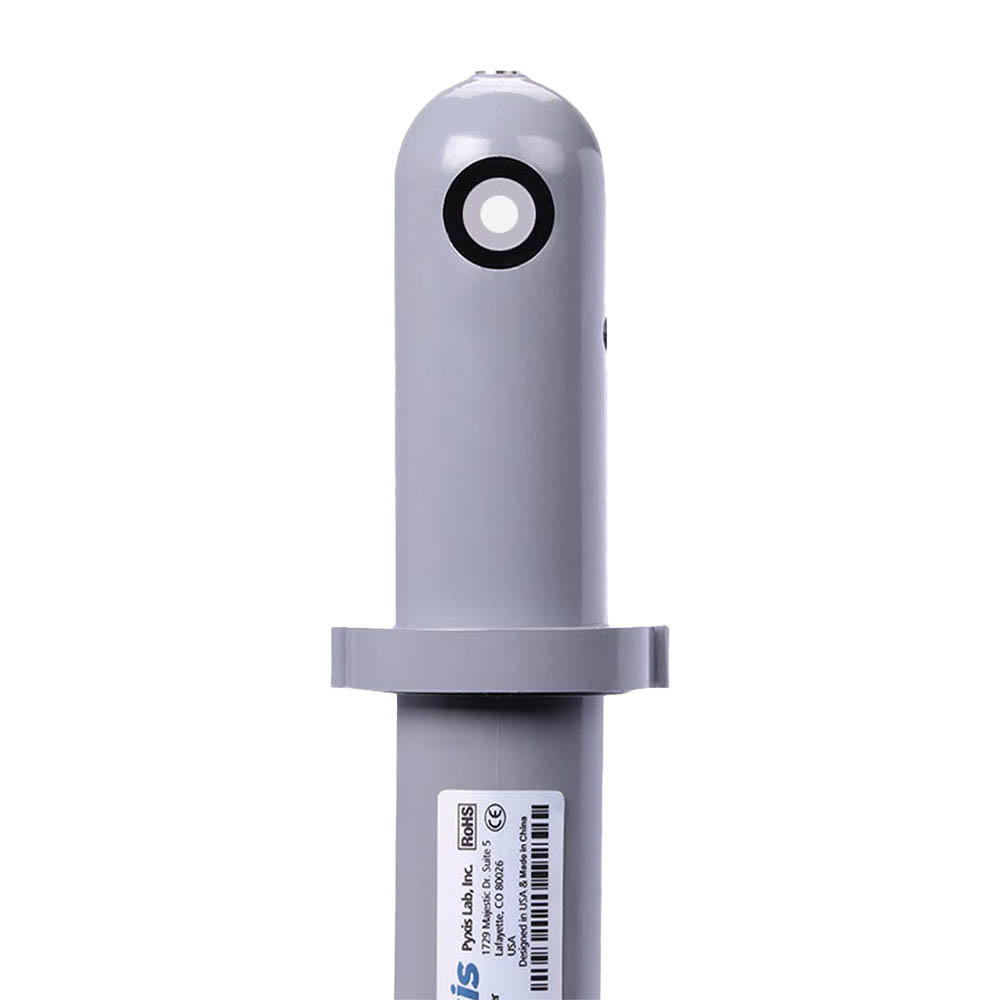

HM-500 Oil In Water Sensor Head
Pyxis HM-500 Series Oil in Water CPVC Sensors (0-10/100/1000ppm)
- Different models for 0.1-10, 0.5-100 and 0.5-1000 ppm
- Measures concentration of oil in water as ppm Marine Crude-Offshore Oil
- 40°C max at 7 Bar
- Includes Pyxis ST-001 Inline Tee Assembly 3/4inch FNPT/CPVC
- Submersion Adapter Kit (Pyxis MA-102S) Available for CPVC Submersed Applications
- Automatically Compensates for Colour & Turbidity Contamination
- 24VDC
- 4-20mA & RS485 Outputs
- Bluetooth Enabled when used with the Pyxis MA-WB
- Bluetooth Wireless Interface via uPyxis® app
- uPyxis® allows for Sensor Cleanliness Diagnostics, Calibration & Configuration
- uPyxis® allows users to Write Calibration to Sensors for a Variety of Oils as ppm
- Lower Cost & Higher Accuracy vs Conventional UV Fluorometers for Oil in Water
Description
Pyxis-HM-500-Series-Data-Sheet-1.pdf
Pyxis-HM-500-Series-User-Manual-V4.53.pdf
Pyxis-Lab-2024-Catalog-1.pdf
| Name |
|---|
|
Pyxis-HM-500-Series-Data-Sheet-1.pdf
|
|
Pyxis-HM-500-Series-User-Manual-V4.53.pdf
|
|
Pyxis-Lab-2024-Catalog-1.pdf
|
Models / Part Numbers
- Pyxis HM-500 Oil in Water Sensor (0-10ppm)
- Pyxis HM-510 Oil in Water Sensor (0-100ppm)
- Pyxis HM-520 Oil in Water Sensor (0-1000ppm)
