MAN PHRX-PRB-1/2 (for 1/2 inch MNPT Probe)

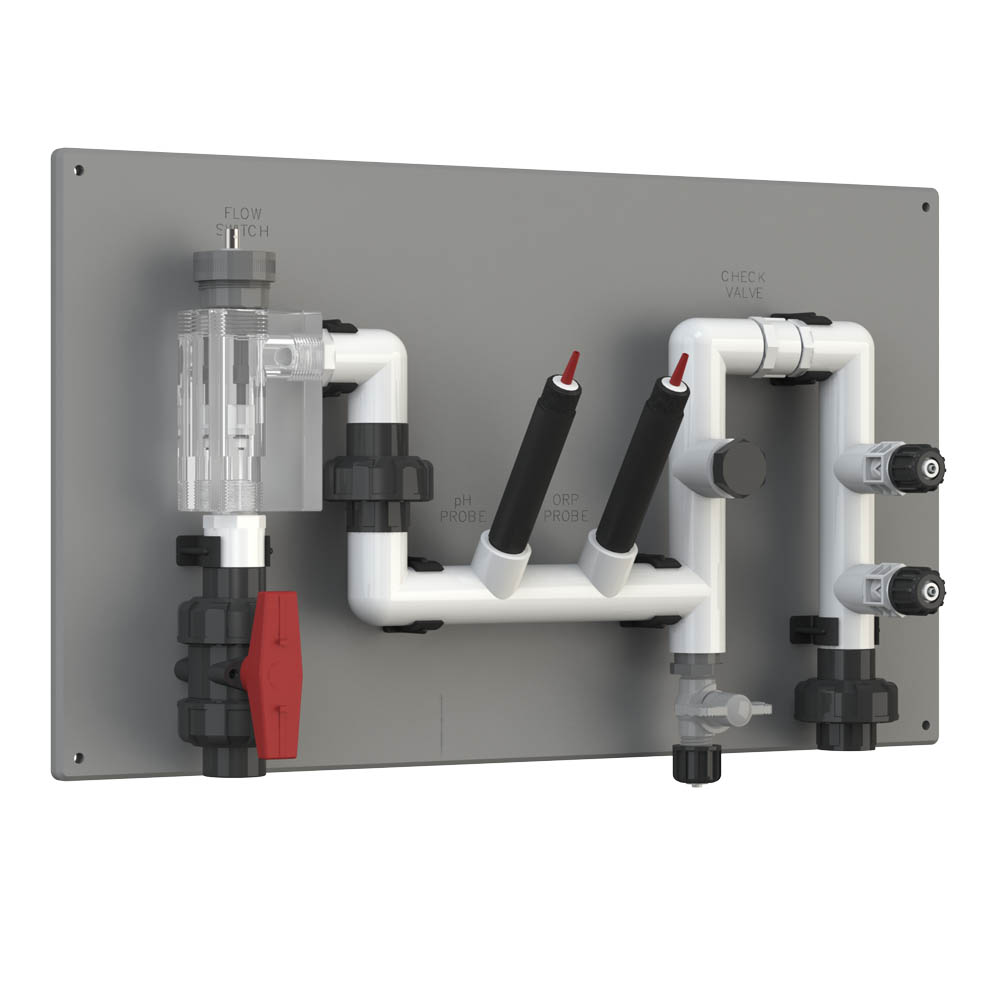

  • Manifold 3/4 inch (20mm) on PVC backboard Inlet to Outlet: True union Ball valve, Flow Switch, 2 x 1/2 inch Ports for optional pH & ORP Probes, Sample Point, 3/4 inch port for optional Solution Ground Probe with blanking plug, check valve and 2 ports for optional injection valves. Excludes pH, ORP and Ground Probes
  • Variables Measured: pH & ORP (with 1/2 inch threaded probe)
  • Applications: Swimming Pools, Water Features, ORP Control of Chlorine with pH Correction
  • Compatible Controllers: refer Brochure in Downloads for details
  • Note: some optional parts included in Product Image (refer Brochure in Downloads for details)
  • Backboard: 600mm (W) x 345mm (H) x 10mm (D)
SKU: MAN PHRX-PRB-1/2 Category:
