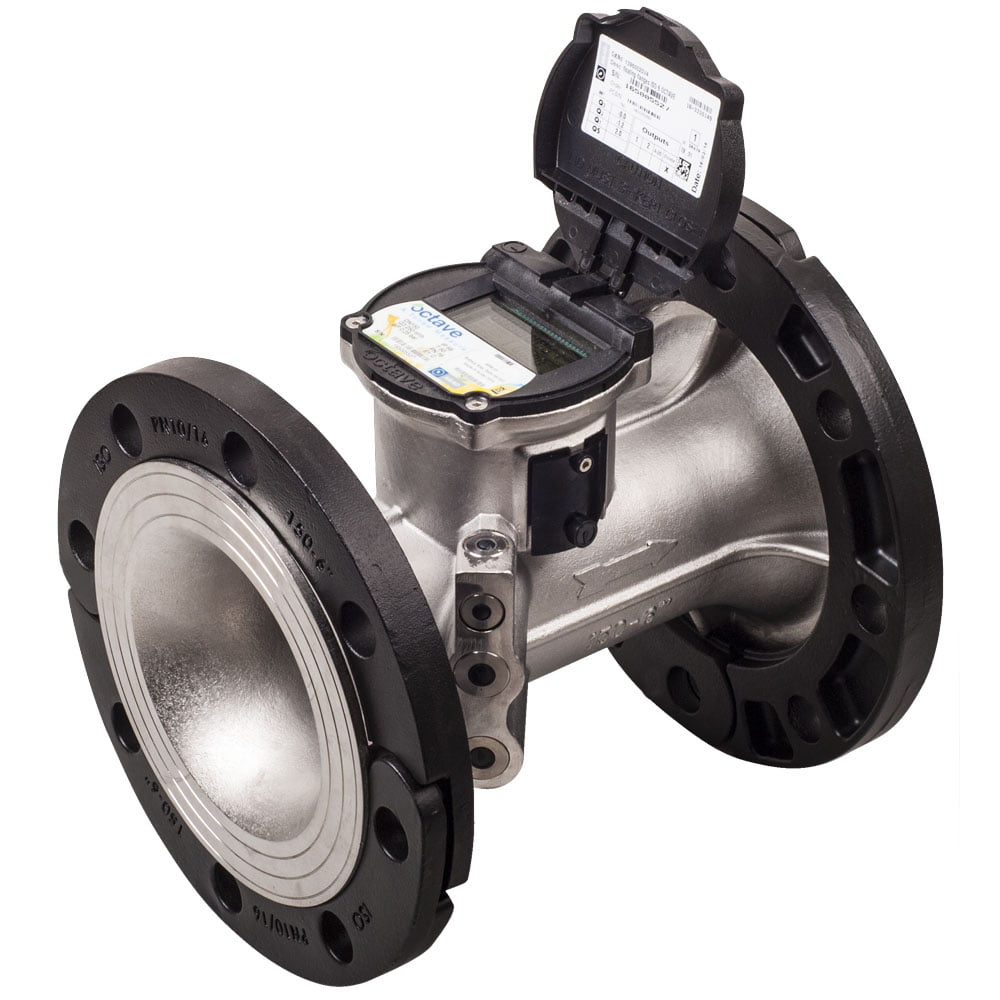

ARAD-OCTAVE

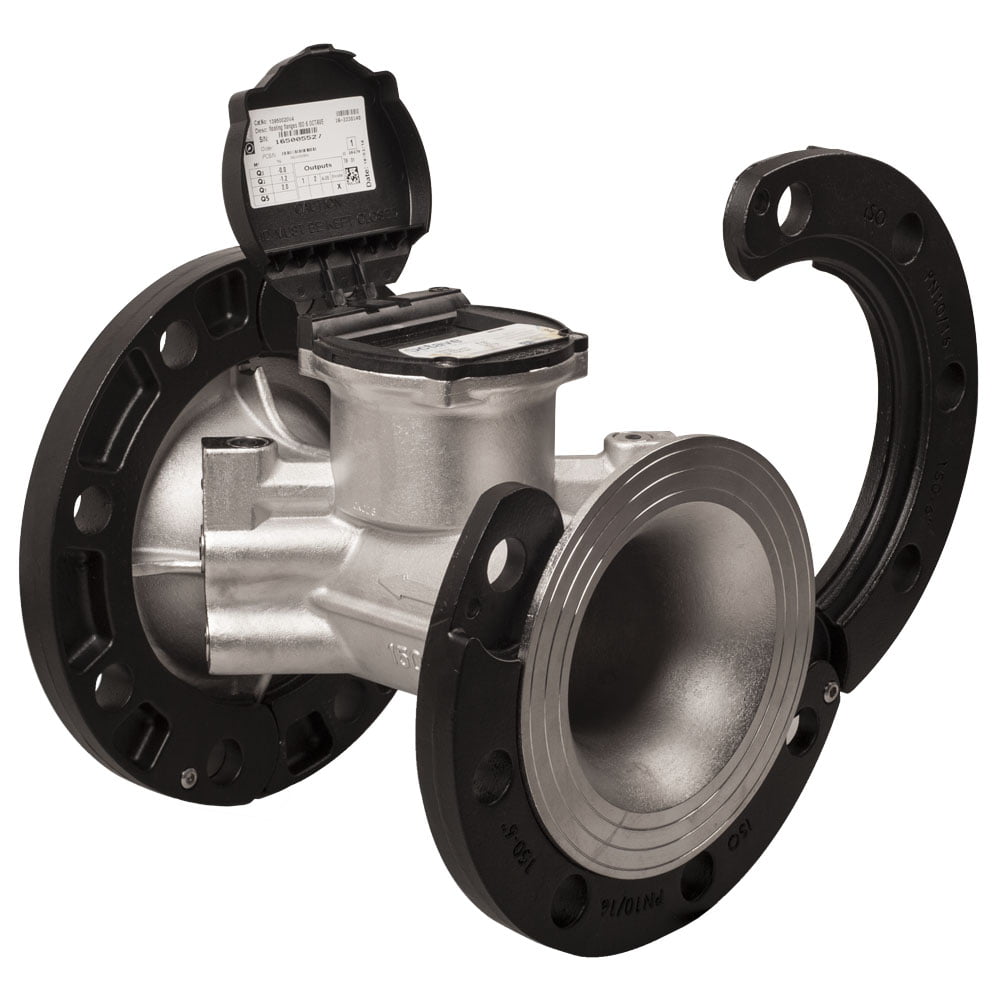

ARAD-OCTAVE-Open-Flange

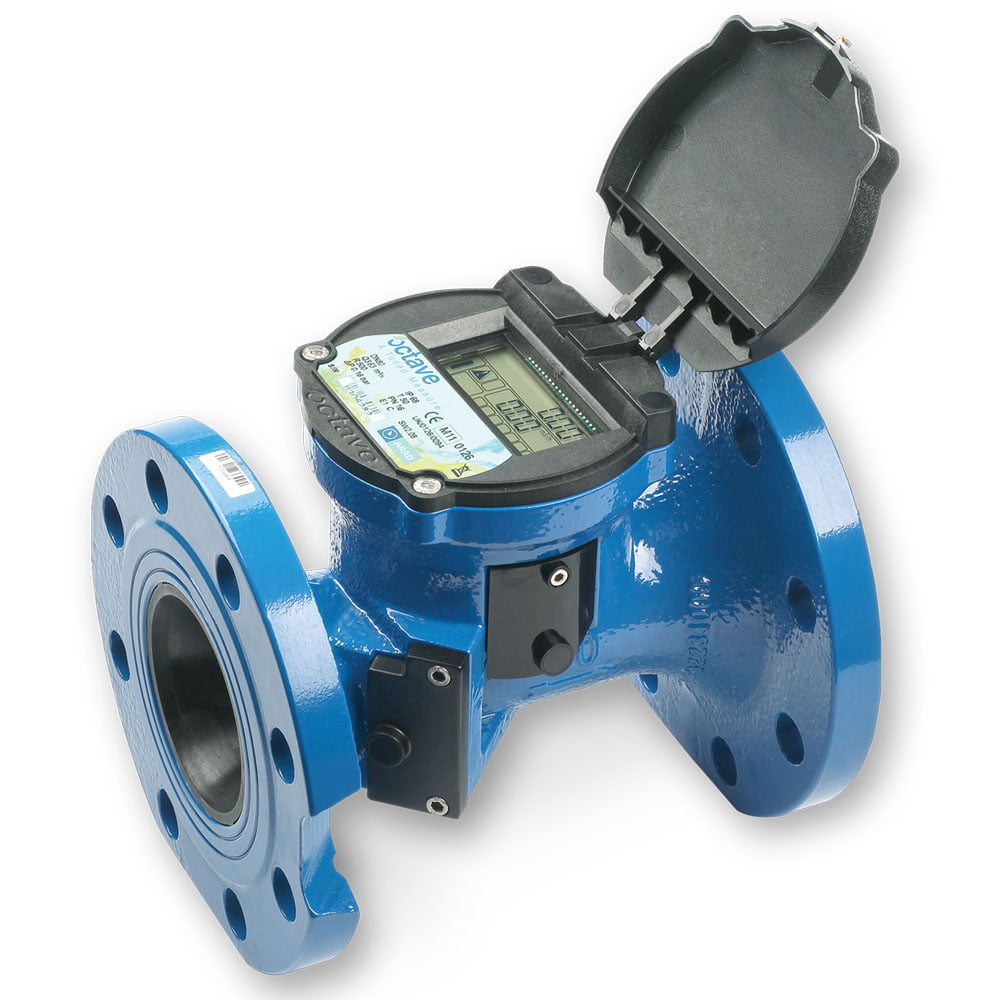

ARAD-OCTAVE-DN200-BLUE

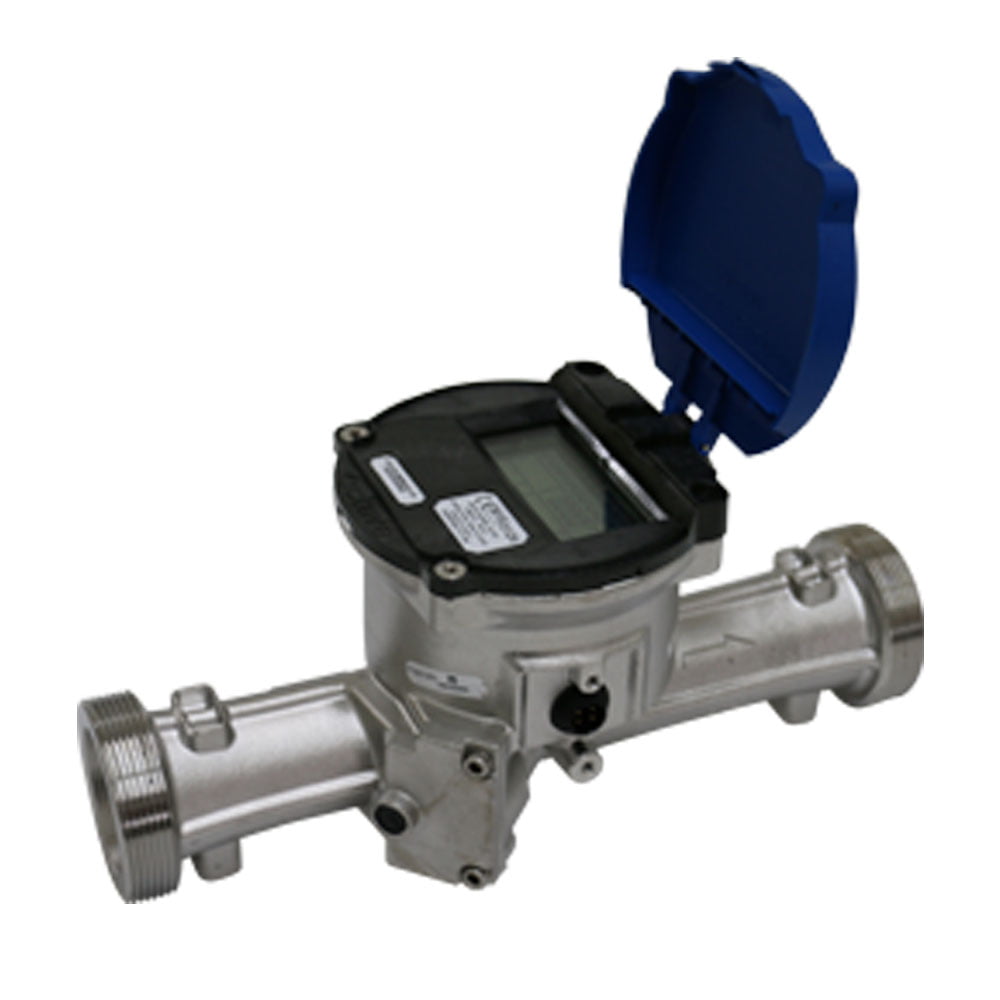

ARAD-OCTAVE-Threaded
Ultrasonic Bulk Water Meters – ARAD Octave
- Replace XXX with size (050, 080, 100, 150, 200)
- Code example: AD-OCT-080 (i.e. 80mm, 3 inch, Table D flange)
- Table D flange (BSP avail in 2 inch size only)
- Dual Beam Ultrasonic
- No moving parts
- Long life battery – up to 15 years
- No installation restrictions
- 16 bar, 50 deg C max
- Optional 4-20mA output (loop powered), or open collector pulse output
- Watermark for 40mm and 50mm threaded Octave meters only
Description
ARAD-OCTAVE-DN50-200-Pattern-Approval.pdf
ARAD-OCTAVE-Installation-Manual_EN_140819.pdf
ARAD-Octave-Data-Sheet-Rel-4.02-2019.pdf
| Name |
|---|
|
|
|
ARAD-OCTAVE-DN50-200-Pattern-Approval.pdf
|
|
ARAD-OCTAVE-Installation-Manual_EN_140819.pdf
|
|
ARAD-Octave-Data-Sheet-Rel-4.02-2019.pdf
|
Additional information
| Variables Measured | Flow Volume |
|---|---|
| Outputs | 4-20mA, Pulse |
| Max Flow / Pressure (Head) | 100 m3/hr @ 16 bar, 250 m3/hr @ 16 bar, 40 m3/hr @ 16 bar, 400 m3/hr @ 16 bar, 63 m3/hr @ 16 bar |
| Max Pressure / Temp | 16 bar @ 50°C |
| Port Size | 100mm Table D Flange, 150mm Table D Flange, 2 inch BSP Male, 200mm Table D Flange, 50mm Table D Flange, 80mm Table D Flange |
| Materials | Polyester Coated Cast Iron Body |
| IP Rating | IP65 |
