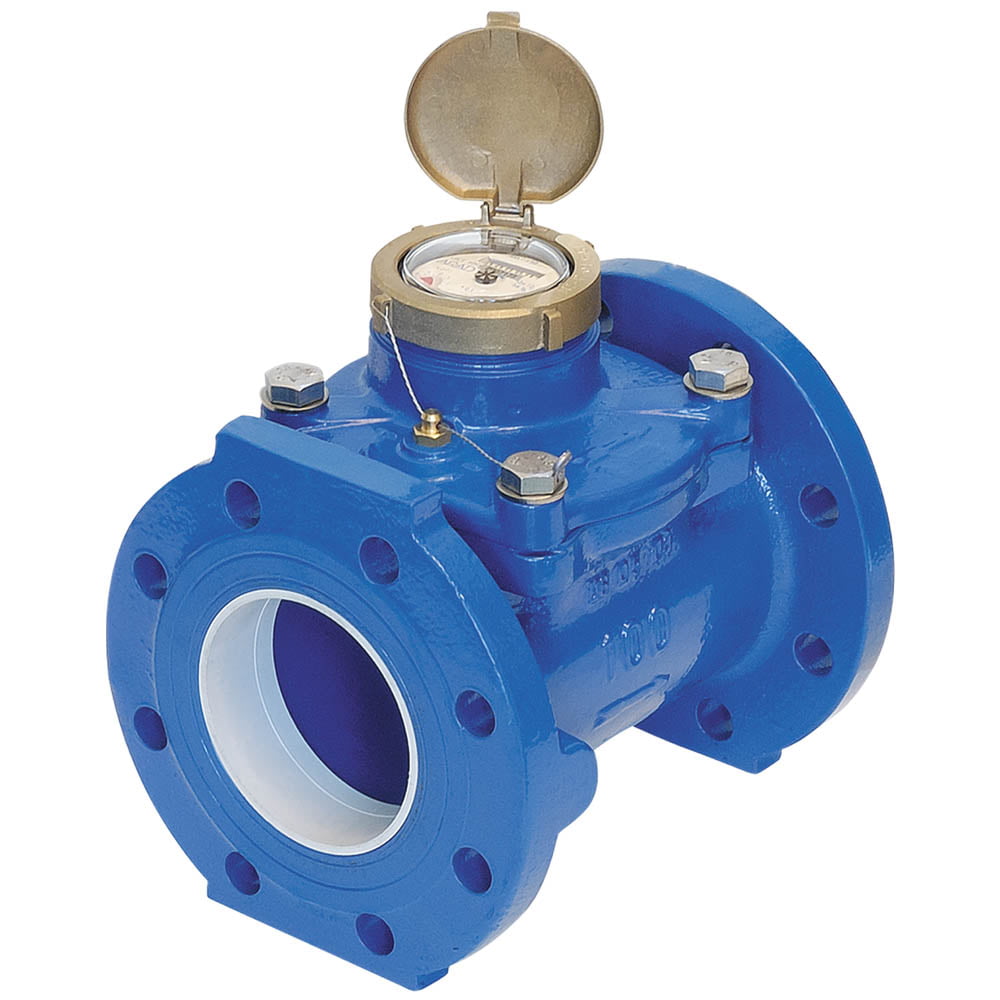

Irrigation & Agriculture Water Meters – ARAD IRT
- Replace XX with size (080, 100)
- For Pulse Output versions, add no. of litres per pulse at end of code (eg. 1P/100L or 1P/1000L)
- Code example: AD-MH-100-1P/100L (i.e. 100mm, 4, 1 pulse per 100 litres)
- For use with Irrigation water eg. borehole, damns etc which may contain some small solids
- Neglible loss of head
- Field replaceable measuring unit
- Hermetically sealed register with glass lens
- Bearings are constantly flushed during operation to eliminate deposit of solids
- Supplied with pulse lead (Pulse version only)
- See data sheet for different sizes and pulse outputs
Description
ARAD IRT Data Sheet 2016
Water Meters with Pulse Output Instruction Manual
| Name |
|---|
|
ARAD IRT Data Sheet 2016
|
|
Water Meters with Pulse Output Instruction Manual
|
Additional information
| Variables Measured | Flow Volume |
|---|---|
| Outputs | Pulse |
| Max Flow / Pressure (Head) | 150 m3/hr @ 16 bar, 250 m3/hr @ 16 bar, 500 m3/hr @ 16 bar, 900 m3/hr @ 16 bar |
| Max Pressure / Temp | 16 bar @ 60°C |
| Port Size | 100mm Table D Flange, 150mm Table D Flange, 200mm Table D Flange, 250mm Table D Flange, 80mm Table D Flange |
| Materials | Polyester Coated Cast Iron Body |
| IP Rating | IP65 |
