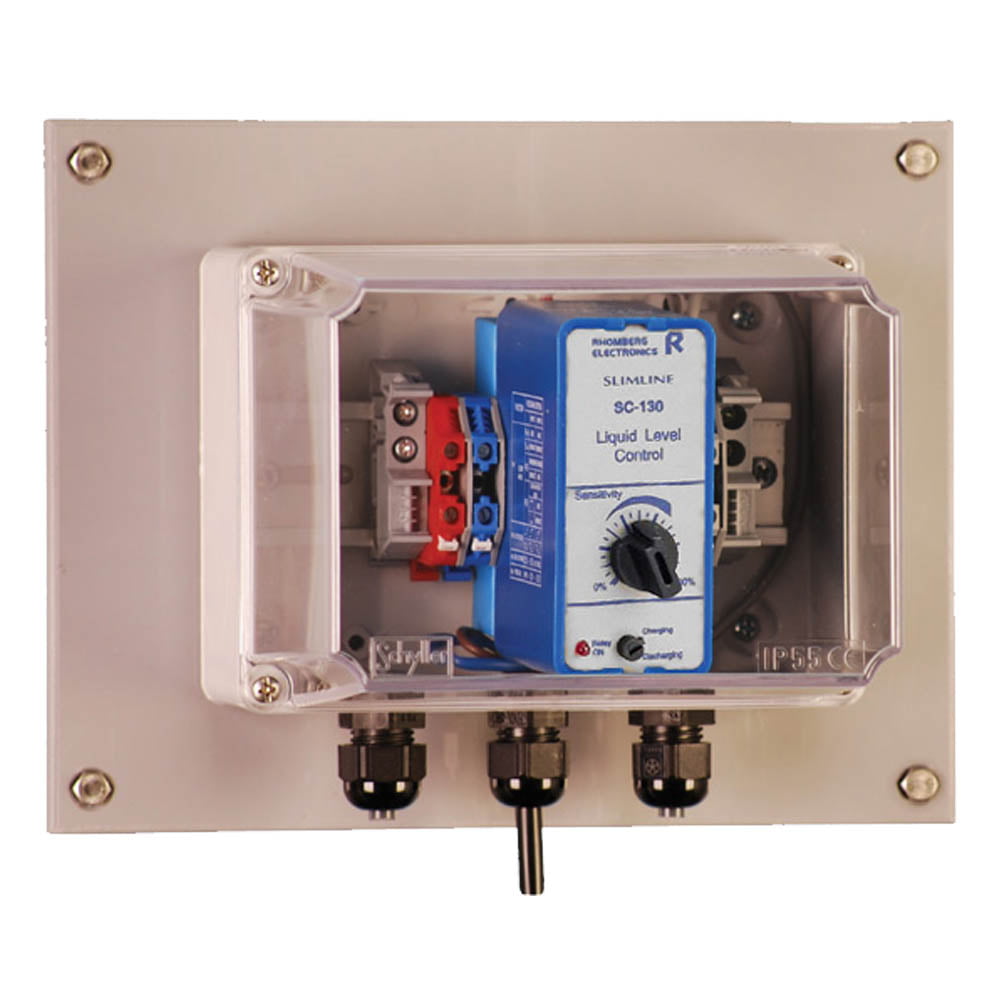

SC130-WP1/1G Liquid Level control system
- Has internal terminals to connect transfer/submersibe pump or valve (excluded)
- For controlling pump or valve between low and high level (Programmable charging (filling) or discharging (draining))
- Fail-to-safe design
- Adjustable Sensitivity: 0- 50k ohms
- AC modulation of probe signal to prevent plating and electrolytic corrosion
- Sensing of conductive liquids
- Low voltage probe signals for human safety and certain hazardous environments
- Works with floats and all types of conductive probes (Rhomberg CP-3C, CP-2C or CP-1C probes recommended)
- 10A SPDT or 5A DPDT relay output
- Power ON LED
Description
Name |
---|
Additional information
Configuration | Wall Mount, PVC Backboard Mounted |
---|---|
Variables Measured | Level |
Outputs | Switched Relays For Optional Pumps/Valves |
IP Rating | IP55 |
