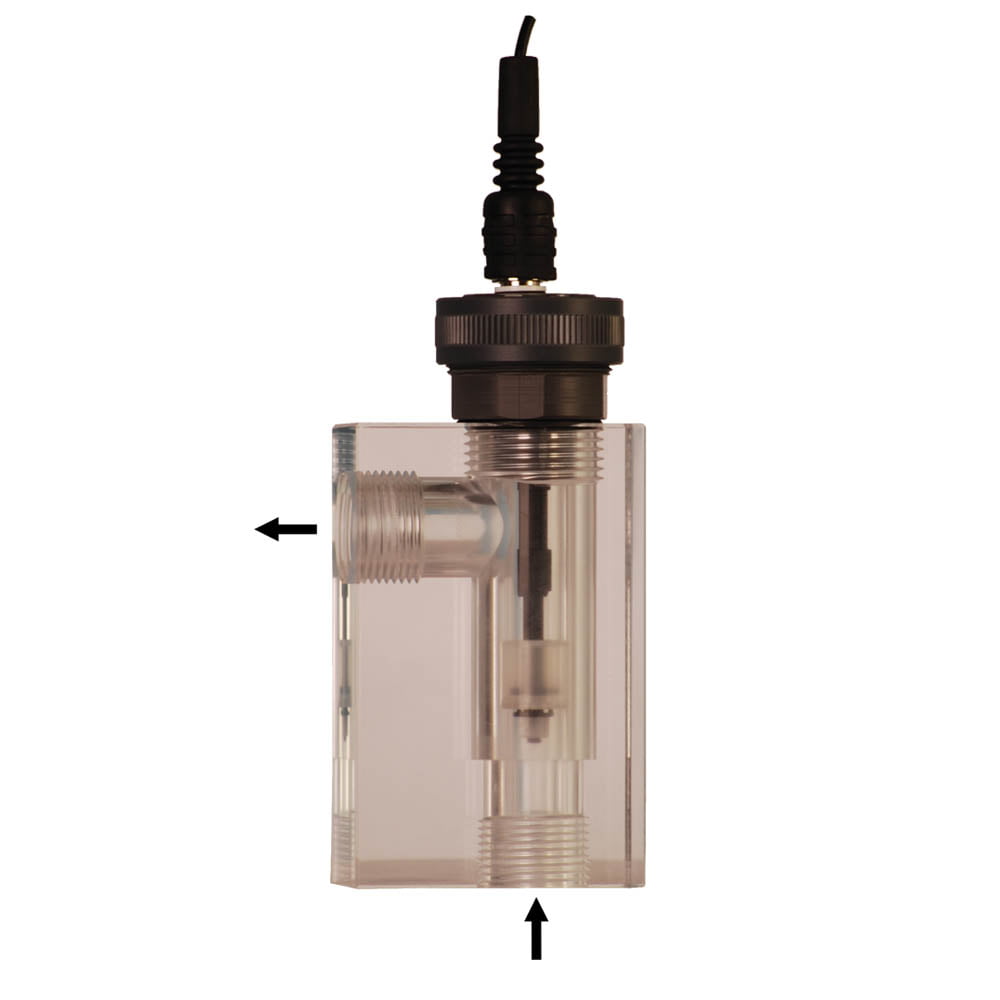

AF04 Flow Switch Replacement or Retrofit for CWC Dosing Systems
- Supersedes AF04 flow switch
- Transparent acrylic block provides viewing of float status and/or blockage
- Robust internal float design for minimum blockage
- Detects very small flow rates due to light weight float, typically 3 L/min
- 3/4 inch BSP Outlet fittings can be supplied for horizontal or vertical pipe work
- BNC connection provides for maintenance friendly checking and cleaning (order code AF04-3/4-NX-T-BNC)
- Normally Open (N/O) logic output, but float can be inverted if Normally Closed (N/C) is required
- Can be retrofitted to manifolds incorporating old style AF04 flow switch
Description
AF04 Data Sheet v2.1
AF04-3-4-NX Installation Instructions v1.0
| Name |
|---|
|
AF04 Data Sheet v2.1
|
|
AF04-3-4-NX Installation Instructions v1.0
|
Additional information
| Variables Measured | Flow Status |
|---|---|
| Outputs | Volt Free Contacts NO/NC |
| Max Pressure / Temp | 10 bar @ 20°C |
| Materials | PMMA, PVC, PVDF |
| IP Rating | IP65 |
