CR-4C-V-CLR-A 20mm (3/4 inch) Coupon Rack - Tranparent 1

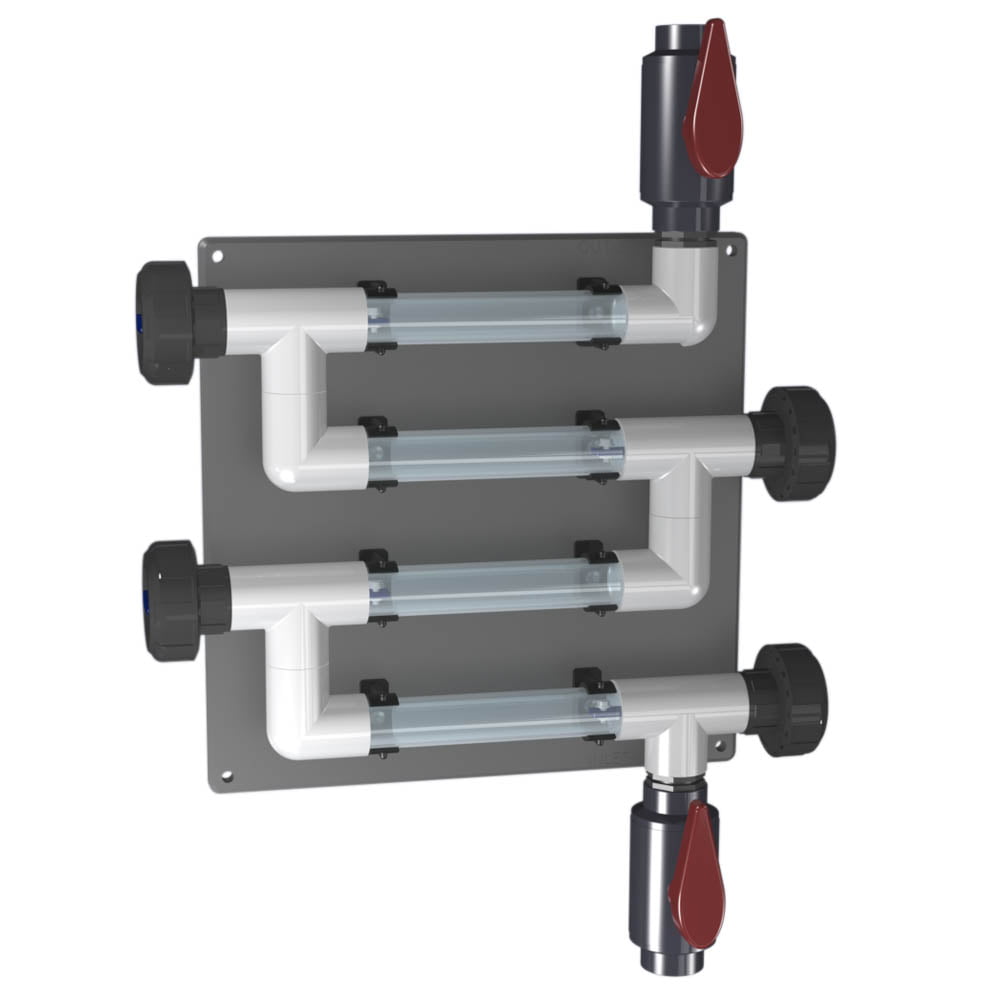

CR-4C-V-CLR-A 20mm (3/4 inch) Coupon Rack – Transparent
- Includes isolation valves for removing coupons and/or regulating flow
- Robust PVC construction (including clear sections for viewing coupons in flow)
- Complete with coupon holders (metal coupons not supplied) – 7.5 Bar Max Pressure at 40°C, or 3 Bar Max Pressure at 50°C
- Direction of water flow always from bolt & nut holding coupon to end of coupon itself – ensures same flow characteristics over all coupons
Additional information
| Configuration | Wall Mount, PVC Backboard Mounted |
|---|---|
| Max Pressure / Temp | 3 bar @ 50°C, 7.5 bar @ 40°C |
| Port Size | 3/4" BSP Female |
| Materials | PVC Manifold, PVC, Coupon Holders |
| IP Rating | IP65 |
