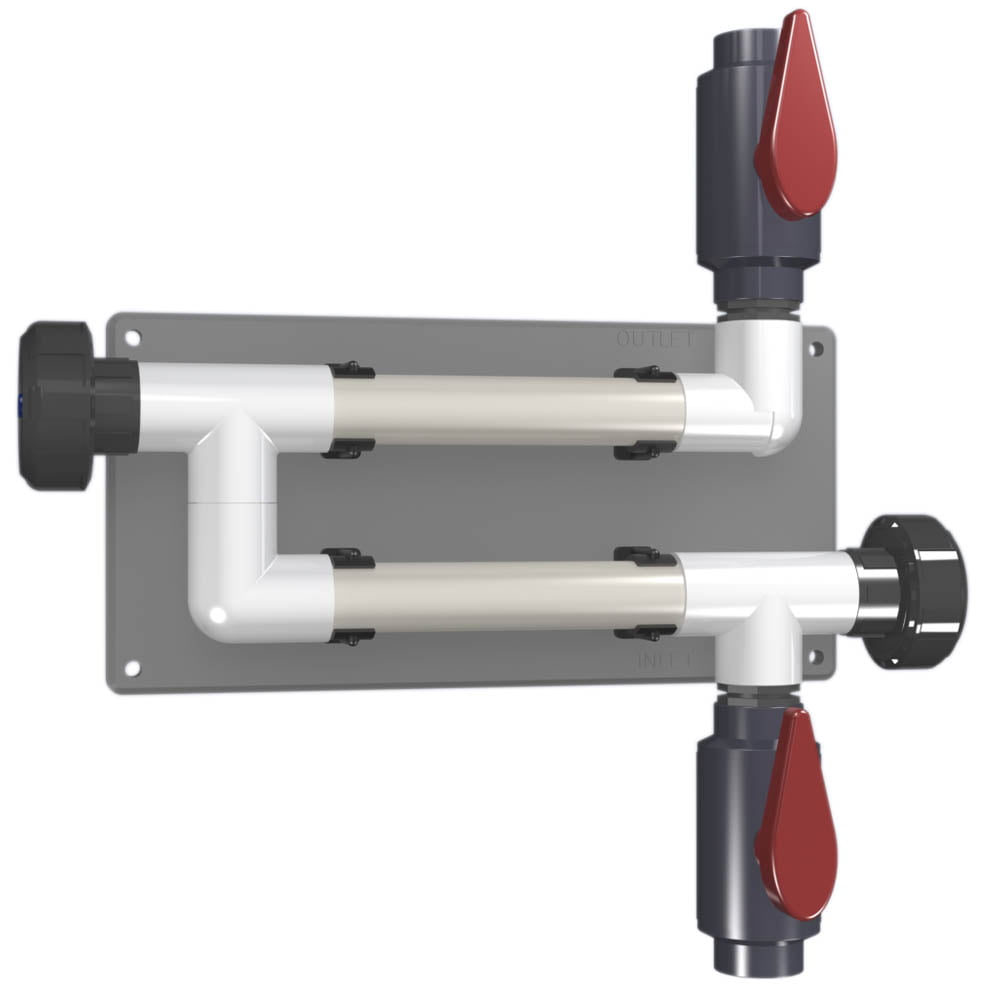

CR-2C-V-PVC-A 20mm (3/4 inch) Coupon Rack 1
CR-2C-V-PVC-A 20mm (3/4 inch) Coupon Rack
- Includes isolation valves for removing coupons and/or regulating flow
- Available in 1 inch
- Robust PVC construction – 7.5 Bar Max Pressure at 40°C, or 3 Bar Max Pressure at 50°C
- Complete with coupon holders (metal coupons not supplied)
- Direction of water flow always from bolt & nut holding coupon to end of coupon itself – ensures same flow characteristics over all coupons
Description
CR-2C Spare Parts Exploded Rev 01
CR-2C-V-PVC-A Dimensional Drawing
| Name |
|---|
|
CR-2C Spare Parts Exploded Rev 01
|
|
CR-2C-V-PVC-A Dimensional Drawing
|
Additional information
| Configuration | Wall Mount, PVC Backboard Mounted |
|---|---|
| Max Pressure / Temp | 3 bar @ 50°C, 7.5 bar @ 40°C |
| Port Size | 3/4" BSP Female |
| Materials | PVC Manifold, PVC, Coupon Holders |
| IP Rating | IP65 |
