AUTOBLD-PR-1 Cooling Tower Bleed System with Inhibitor Dosing 1

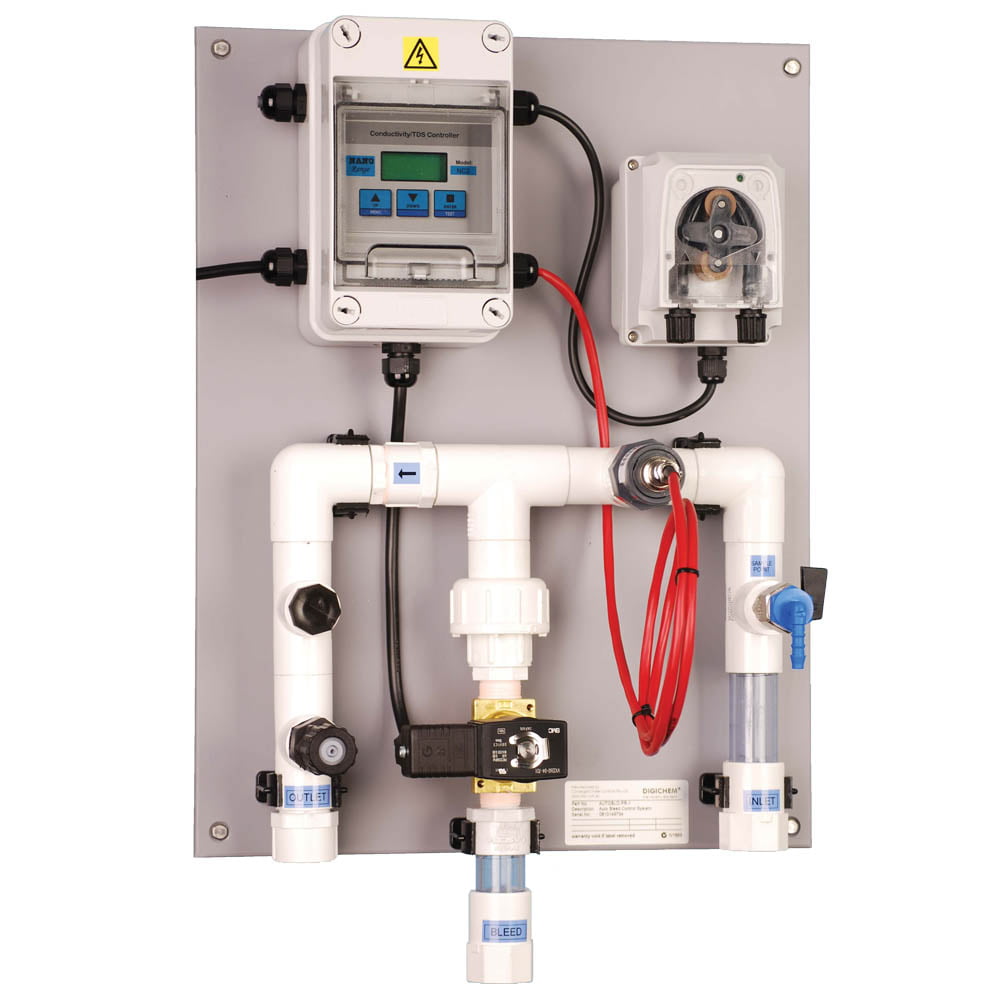

AUTOBLD-PR-1 Cooling Tower Bleed System with Inhibitor Dosing
- NEW Black EPDM based squeeze tube with better chemical compatibility & longer tube life
- Digital controller, Inhibitor pumps & manifold mounted on PVC back panel
- Bleed Control – via solenoid valve
- Inhibitor Dosing on bleed – reduces corrosion
- Self priming peristaltic pump – adjustable speed (0.3-1.0l/hr,3bar)
- Options & variations available – download data sheet
Description
AUTOBLD-PR1-Assembly-Diagram-v1.0.pdf
AUTOBLD-PR1-Spare-Parts-v1.0.pdf
NANO-NC2-CWC-Instruction-Manual-M1-ver-3.0.pdf
| Name |
|---|
|
AUTOBLD-PR1-Assembly-Diagram-v1.0.pdf
|
|
AUTOBLD-PR1-Spare-Parts-v1.0.pdf
|
|
NANO-NC2-CWC-Instruction-Manual-M1-ver-3.0.pdf
|
Additional information
| Configuration | Wall Mount, PVC Backboard Mounted |
|---|---|
| Variables Measured | Conductivity |
| Inputs | Conductivity Probe with Electrodes & 47K NTC |
| Outputs | Bleed Valve Via Relay, Inhibitor Pump Via Relay |
| Max Pressure / Temp | 2.7 bar @ 50°C |
| IP Rating | IP55 |
