AF10-XP2 BMS Output Card (incl 4-20mA) for DIGICHEM-XP2 1

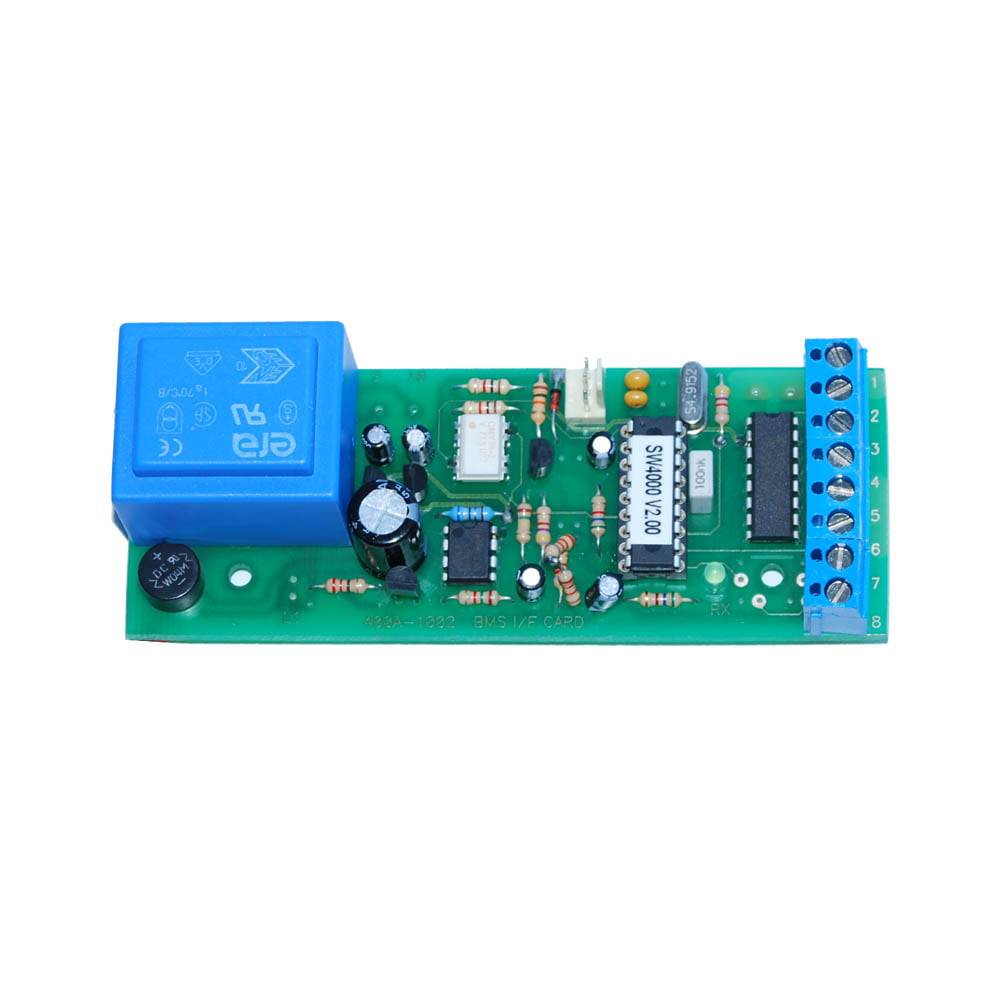

AF10-XP2 BMS Output Card (incl 4-20mA) for DIGICHEM-XP2
- Provides isolated 4-20mA Ouput as well as NPN Open Collector Outputs for Power Failure, Alarm, and Individual Pump Status
- 4-20mA = 0-5000 TDS/µS
- 4-20mA Signal can be converted to 1-5Vdc Output via 250 Ohm Resistor
- Max 4-20mA Output Impedance: 500 Ohm
- On-board LED indicates card is operating
- C-tick EMC Approval rating
Description
AF10 Instruction Manual M1-v2.2
| Name |
|---|
|
AF10 Instruction Manual M1-v2.2
|
Additional information
| Outputs | 4-20mA, NPN For Logic Status |
|---|---|
| IP Rating | N/A |
