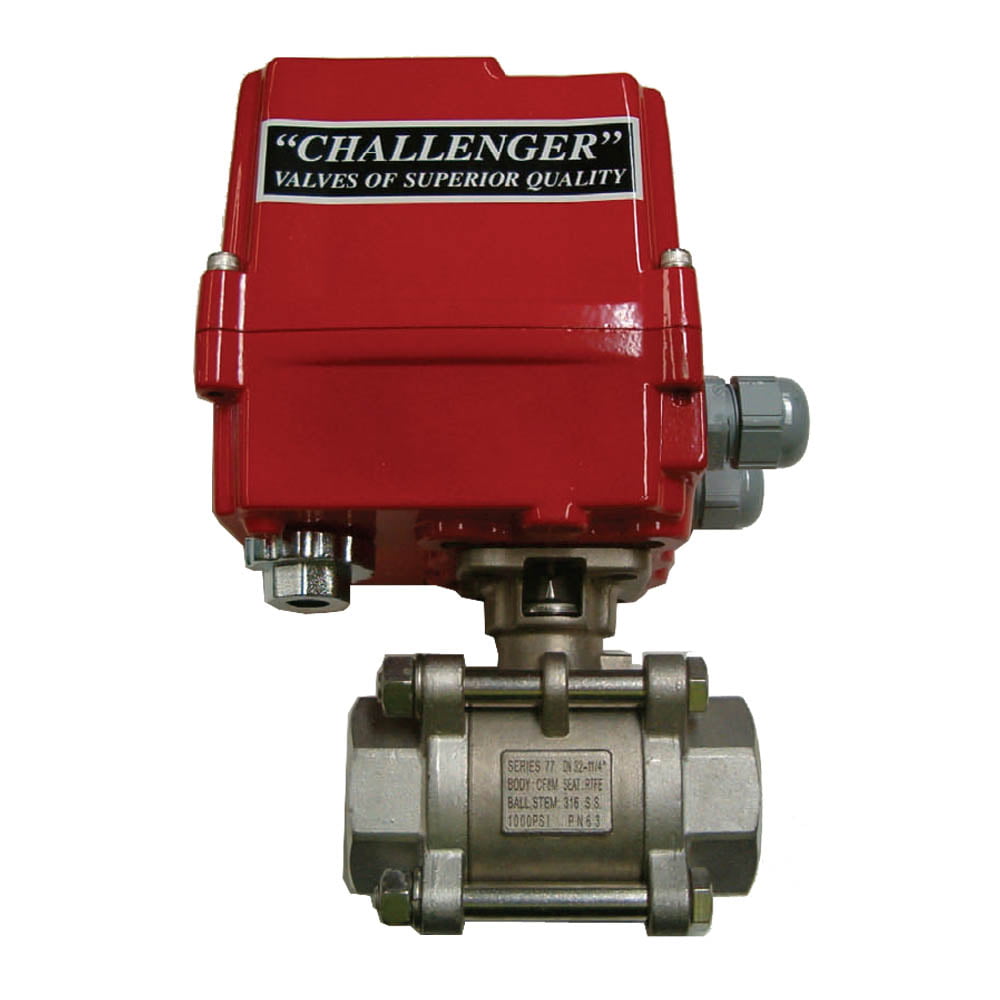

CVA IP67 Actuated SS Ball Valve (240VAC Power to Open & Close) 1
CVA IP67 Actuated SS Ball Valve (240VAC Power to Open & Close)
- Replace XX with mm sizes (15, 20, 25, 40, 50)
- 12 Seconds Opening / Closing Time
- Hi Torque (60Nm), low current design
- 64 Bar at 70°C max operation
- PTFE Seats, SS316 Ball and Stem
- 240Vac (24Vac/dc Version available)
- Manual Override
Description
CVA PVC HQ-006-DS-CWC Data Sheet
CVA PVC SS3PA HQ006 Instruction Manual RevC 11-01-2019
| Name |
|---|
|
CVA PVC HQ-006-DS-CWC Data Sheet
|
|
CVA PVC SS3PA HQ006 Instruction Manual RevC 11-01-2019
|
Additional information
| Max Pressure / Temp | 64 bar @ 70°C |
|---|---|
| Port Size | 1 inch BSP Female, 1-1/2 inch BSP Female, 1/2 inch BSP Female, 2 inch BSP Female, 3/4" BSP Female |
| Materials | Stainless Steel 316 |
| IP Rating | IP67 |
