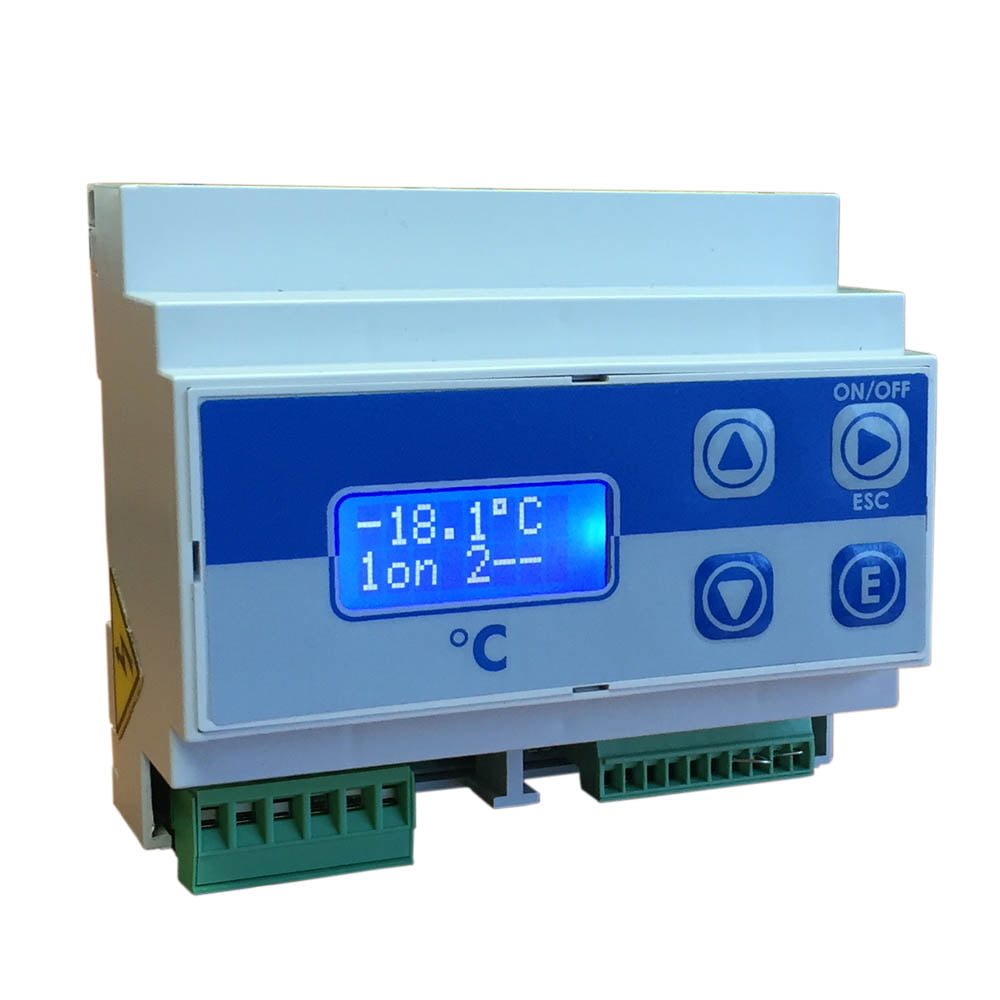

EMEC DIN DIG TEMP Temperature Transmitter/Controller

  • DIN rail housing 105 x 90 x 60 mm (ie. 6 module wide)
  • 0 – 100 °C with Optional EMEC ETEHLP Temperature Sensor
  • Programmable for Cooling or Heating applications
  • 2 Setpoints: ON/OFF or Proportional with ON/OFF modulation
  • Backlit LCD displays measured pH
Compare
SKU: EMEC DIN DIG TEMP Category: Tag: Brand:

Description

EMEC-DIN-DIG-TEMP-Data-Sheet-R2-01-07.pdf
EMEC-DIN-DIG-Temp-Instruction-Manual-R1-04-04.pdf
EMEC-DIN-DIG-TEMP-Data-Sheet-R2-01-07.pdf
EMEC-DIN-DIG-Temp-Instruction-Manual-R1-04-04.pdf
Name

Additional information

Inputs

Flow Switch Contact, PT100

Outputs

4-20mA, Volt Free Contacts NO/NC

IP Rating

IP55
