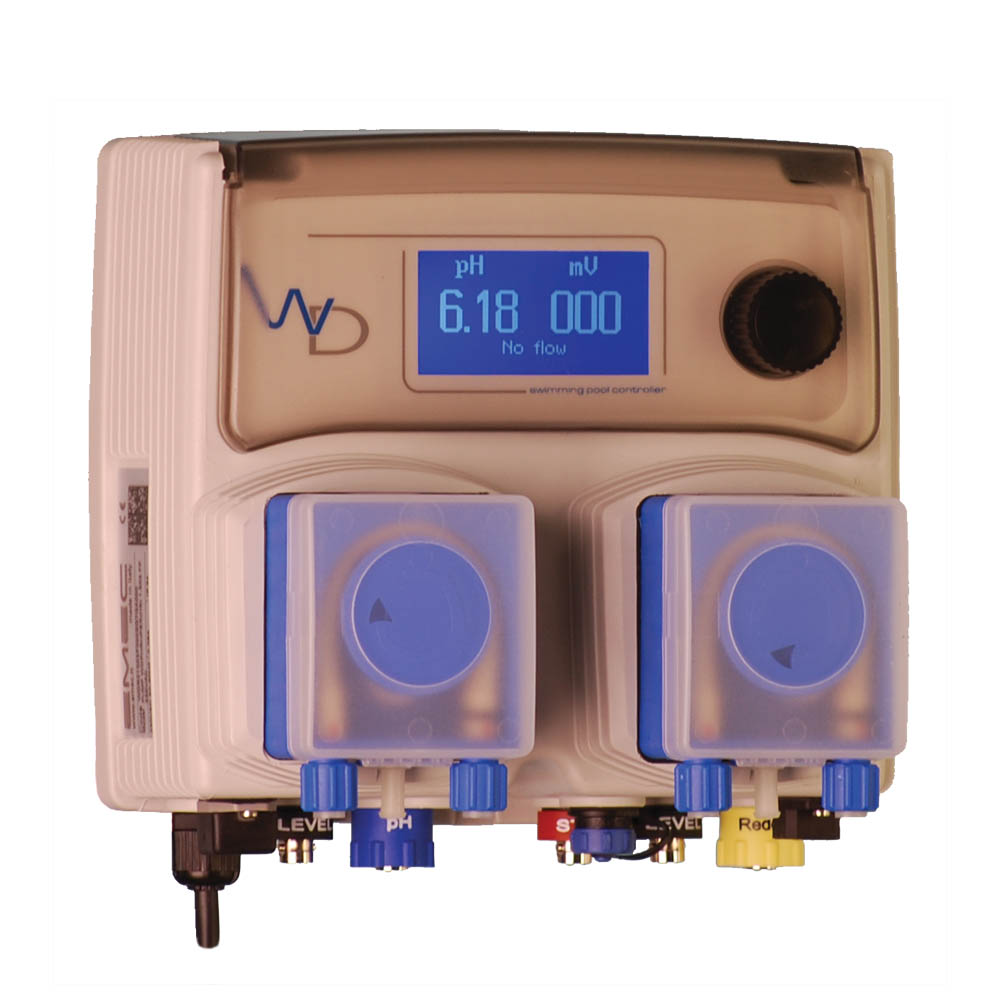

EMEC WDPHRHPER Pool Controller pH & ORP (3 l/hr @ 1.2 bar max)

  • Proportional Control via Pulse Width Modulation (PWM)
  • Includes Foot valves, Injection valves, 4M of Suction tubing and 4M of Discharge tubing
  • Designed for Chlorine (ie. ORP) & Acid (ie. pH) Control in Swimming Pools
  • Silent Self priming peristaltic pumps
  • Includes high quality German made SAIER pumps 3 l/hr, 1.2 bar
  • Reliable & accurate dosing
  • Floats on foot valves stop pumps dosing when chemical level in tanks is low – individually controlled for Chlorine & Acid Pumps
  • Standby input stops both pumps (activated by contact closure)
  • pH and temperature swimming pool controller
Compare
SKU: EMEC WDPHRHPER 1.203 PS 230 Categories: , Tag: Brand:

Additional information

Configuration

Wall Mount

Variables Measured

Flow Status, ORP, pH

Inputs

Flow Switch Contact, ORP Probe, pH Probe, Standby Dry Contact, Tank Level Dry Contact

Outputs

Alarm Relay

Remote Comms

Via Optional LAN card, Via Optional Modem

Process Connection

1/2 inch BSP Male

IP Rating

IP54

Install Kit Included

4x6mm tube, 2 x injection valves & 2 x foot valves with level floats

Optional Tube Size

1/4 inch, 3/8 inch, 5×8 or 6x9mm
