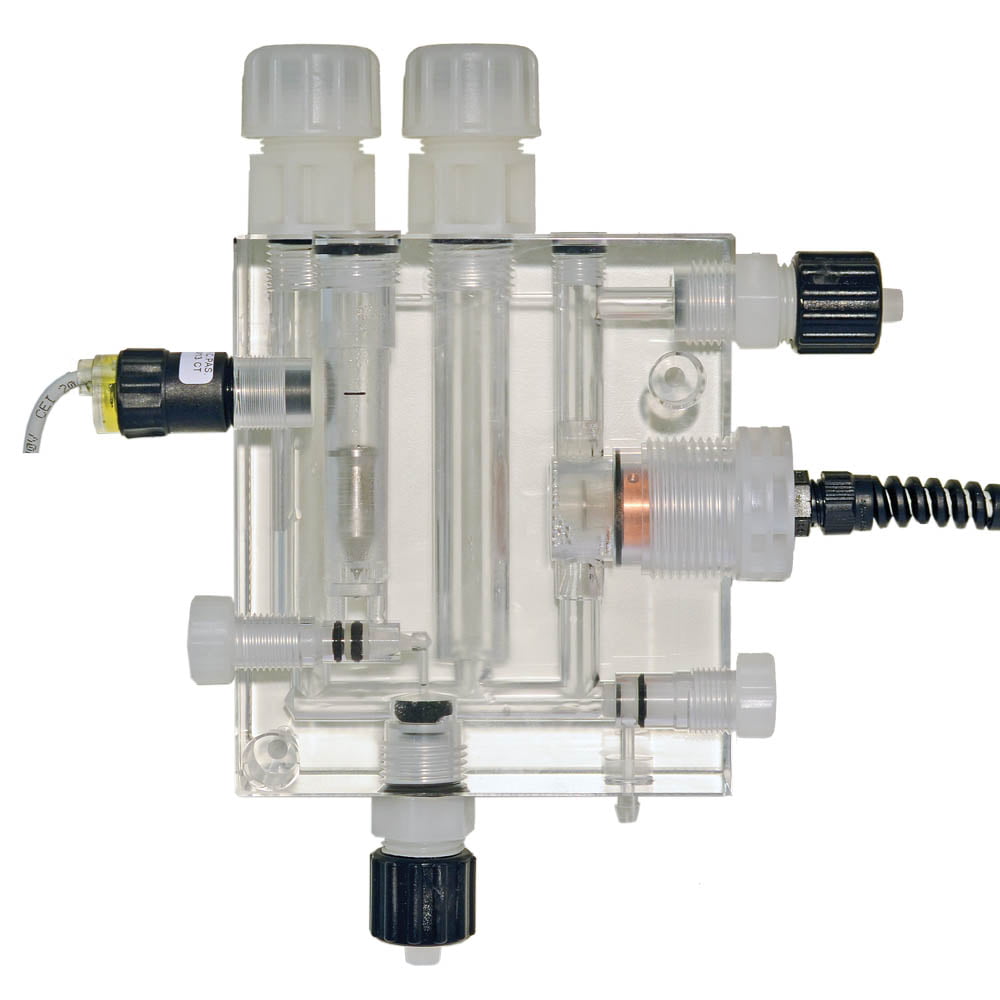

EMEC ECL6 pH and Free Chlorine Amperometric Open Measuring Sensor

  • Organic & Inorganic, Free Chlorine Measurment for Hypochlorous Acid
  • Can be used to measure Free Bromine mg/L Br2
  • Operating pH range of 6-8
  • Measuring range 0-10mg/L (i.e. 0-10ppm)
  • 0.05mg/L Resolution
  • Temperature Range 5-40°C.  NOTE: 1% increase in CL2 reading per 1°C increase
  • 5 Bar Max Pressure
  • pH Temperature compensation of pH with optional EMEC ETEPT temperature sensor
  • pH Compensation of CL2 with optional EMEC EPHS pH sensor
  • Use EMEC ECL6 108.1646.1 with EMEC WDPHCL
  • Use EMEC ECL6 108.1365.1 with EMEC LDPHCL4
  • Chlorine ECL6 Open Cell Amperometric chlorine analyser. Free Chlorine sensor
Compare

Description

EMEC-ECL6-Dimensional-Drawing.pdf
EMEC-ECL6-ECL7-ECL12-ECL20-ECL21-Data-Sheet-R11-19.pdf
EMEC-ECL6_ECL6-E-Instruction-Manual-R1-02-17.pdf
EMEC-ECL6-Dimensional-Drawing.pdf
EMEC-ECL6-ECL7-ECL12-ECL20-ECL21-Data-Sheet-R11-19.pdf
EMEC-ECL6_ECL6-E-Instruction-Manual-R1-02-17.pdf
Name

Additional information

Variables Measured

Cl2

Max Pressure / Temp

5 bar @ 40°C

IP Rating

IP65
