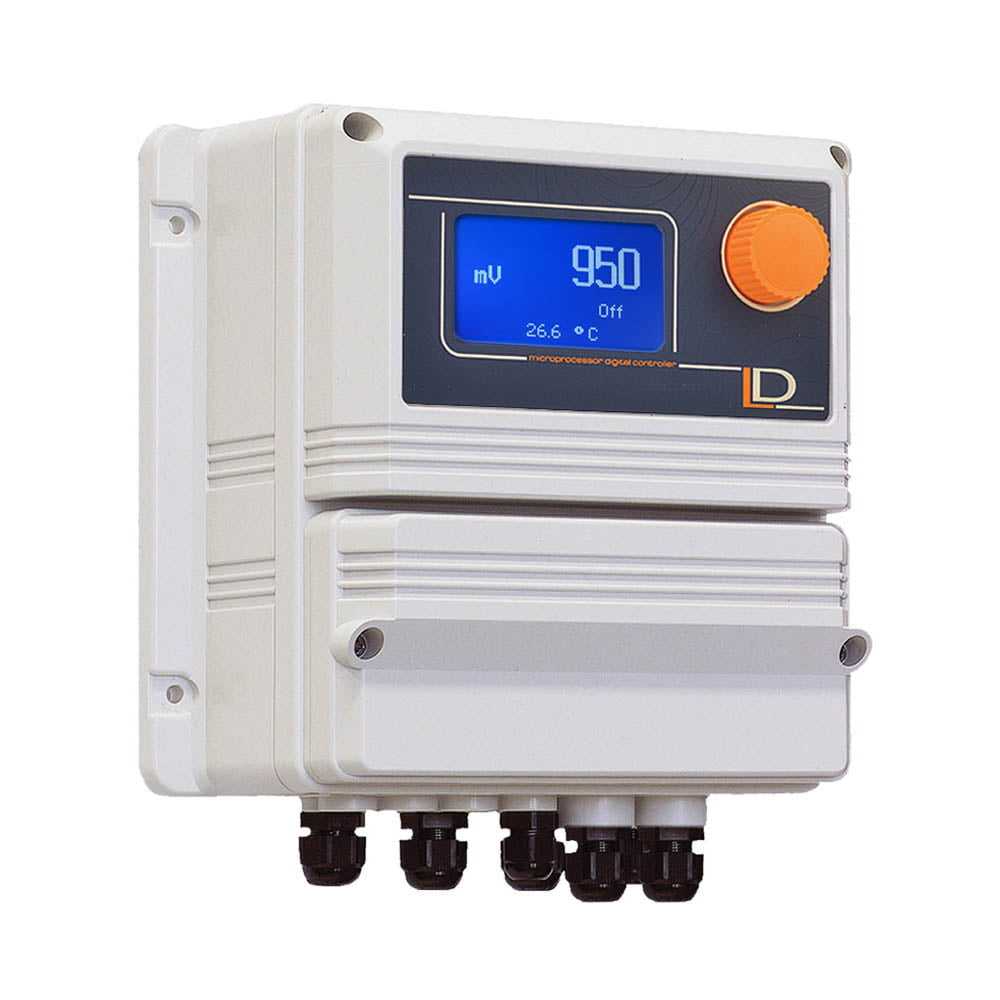

EMEC LDSRH PLUS PID ORP Controller

  • PID ORP Controller
  • Encoder wheel menu
  • 2 Pulse, 2 Relay & 1 PID 4-20mA control outputs
  • 4-20mA outputs for mV, Temp & PID control
  • Alarm & cleaning relays
  • mA or pulse water meter input for Feedforward control
  • Communication via ermes Webserver or modbus
  • EMEC LDSRH PLUS-3G includes 3G connection to ermes Webserver
  • EMEC LDSRH PLUS-LAN includes ethernet connection to ermes Webserver
  • EMEC LDSRH PLUS-MODBUS includes modbus RTU interface
Compare
SKU: EMEC LDSRH PLUS Category: Tag: Brand:

Description

EMEC-LDS-LDS-PLUS-Data-Sheet-R1-08-17.pdf
EMEC-LDSRH-PLUS-Instruction-Manual-R2-04-15.pdf
EMEC-LDS-LDS-PLUS-Data-Sheet-R1-08-17.pdf
EMEC-LDSRH-PLUS-Instruction-Manual-R2-04-15.pdf
Name

Additional information

Configuration

Wall Mount

Variables Measured

Flow Status, ORP, Temperature

Inputs

Flow Switch Contact, mA or pulse Flow Input, ORP Probe, Standby Dry Contact, Tank Level Dry Contact

Outputs

4-20mA, Alarm Relay, Pulse, Switched Relays For Optional Pumps/Valves

IP Rating

IP65

Remote Comms

Via Optional LAN card, Via Optional Modbus, Via Optional Modem
