EMEC LDRH ORP Controller 1

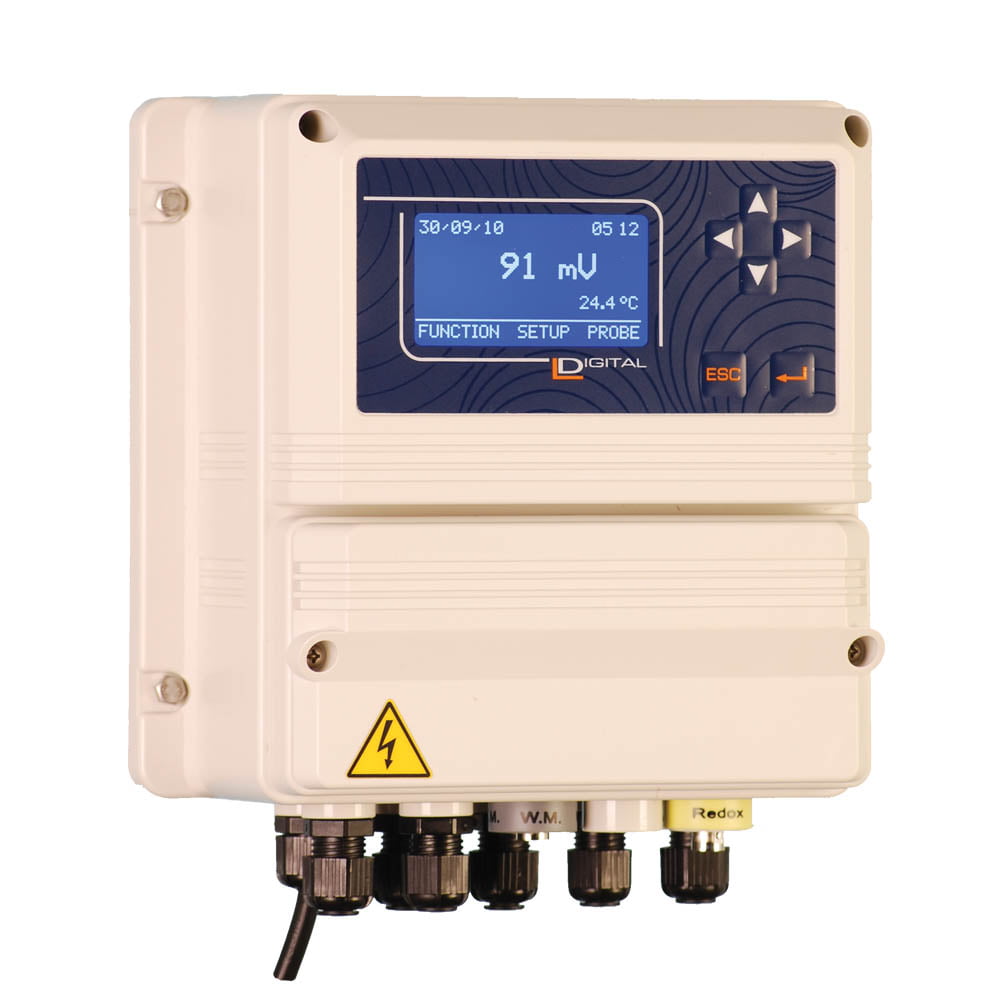

EMEC LDRH ORP Controller
- Programmable for dosing oxidant or reductant
- 2 x Proportional Outputs & 2 x ON/OFF outputs
- Dot matrix backlit LCD displays measured ORP (mV), temperature, date & time
- Programmable power-on delay
- High and low ORP, and max dosing alarms
- 4-20mA for ORP & 4-20mA for temperature
- Serial port for printer allows log printing
- RS485 for remote control
- Programmable cleaning output
Description
EMEC LDRH Data Sheet R2-01-07
EMEC LDRH Instruction Manual R2-01-07
| Name |
|---|
|
EMEC LDRH Data Sheet R2-01-07
|
|
EMEC LDRH Instruction Manual R2-01-07
|
Additional information
| Configuration | Wall Mount |
|---|---|
| Variables Measured | Flow Status, ORP, Temperature |
| Inputs | Flow Switch Contact, ORP Probe, Standby Dry Contact, Tank Level Dry Contact |
| Outputs | 4-20mA, Alarm Relay, Pulse, Switched Relays For Optional Pumps/Valves |
| IP Rating | IP65 |
