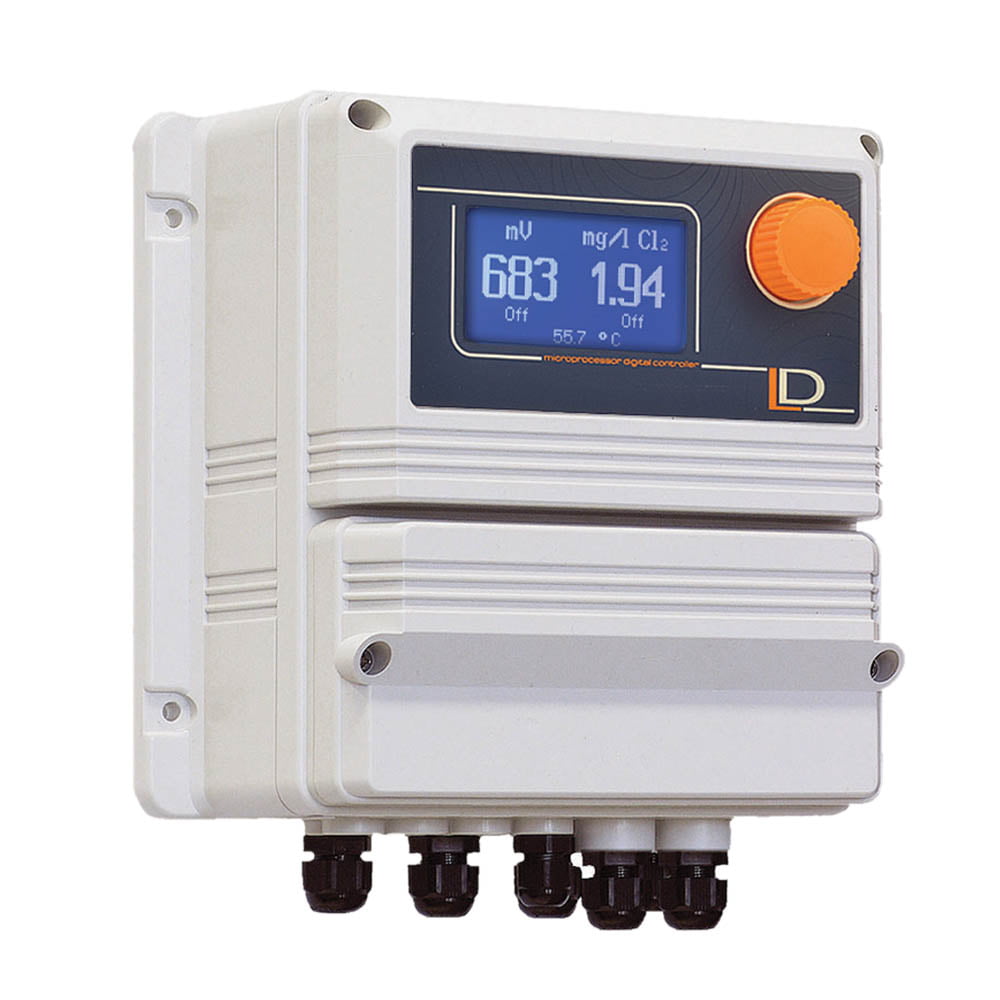

EMEC LDRHCL Dual ORP & CL2 Controller For Closed Amperometric Cells

  • Programmable for controlling Free Chlorine with ORP monitoring/alarming or for controlling ORP with Free Chlorine monitoring/alarming
  • Proportional or On/Off Control of Chlorine
  • Outputs: 1 x ORP 240Vac Relay, 2 x ORP Pulse, 1 x Cl2 240Vac Relay, 1 x Cl2 Pulse, 3 x mA for ORP, Cl2 & Temp,
  • Tanks level inputs: 2 x ORP, 1 x Cl2
  • Other I/O: 1 x Standby I/P, 1 x 240Vac Alarm Relay O/P, 1 x RS485 O/P
  • LCD display shows measured ORP and Chlorine (mg/L)
  • Max dosing alarms
  • Optional GSM/GPRS modem or Ethernet/LAN card for remote connectivity via webserver and alarming via SMS/e-mail
  • ERMES Ready – Remote access via 4G, WiFi, Ethernet with live readings
Compare
SKU: EMEC LDRHCL Category: Tag: Brand:

Description

Superseded
EMEC-LDRHCL-Instruction-Manual-R2-06-16.pdf
LD-Dual-LD-Dual-PLUS-Data-Sheet-R2-06-20.pdf
Superseded
EMEC-LDRHCL-Instruction-Manual-R2-06-16.pdf
LD-Dual-LD-Dual-PLUS-Data-Sheet-R2-06-20.pdf
Name
Superseded

Additional information

Configuration

Wall Mount

Variables Measured

Cl2, CLO2, Flow Status, H2O2, ORP, Temperature

Inputs

Amperometric Sensor, Flow Switch Contact, ORP Probe, Standby Dry Contact, Tank Level Dry Contact

Outputs

4-20mA, Alarm Relay, Optional Modbus, Pulse, Switched Relays For Optional Pumps/Valves

Remote Comms

Via Optional LAN card, Via Optional Modbus, Via Optional Modem

IP Rating

IP65
