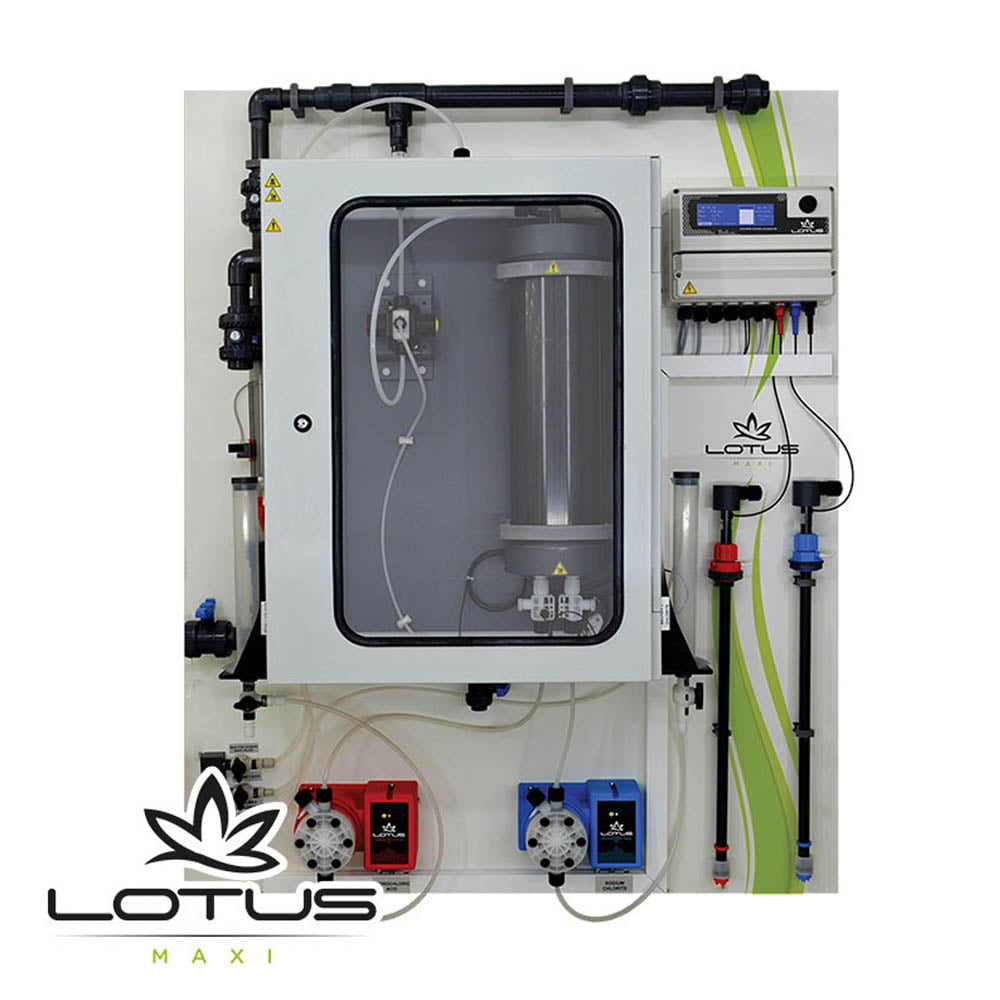

LOTUS MAXI CLO2 Generator (up to 1000 gr/hr) 1
LOTUS MAXI CLO2 Generator (up to 1000 gr/hr)
- Instantaneous chlorine dioxide production can be controlled from 2,000 mg/L – 20,000 mg/L concentrations
- Flow-proportional dosing control
- Add-on option for chlorine dioxide sensor system to control to a measured residual setpoint
- Inputs for water meter signal, stand-by control, chemical tank levels
- Flow and tank level alarms
- Metering pumps for acid, sodium chlorite and dilution water
- All metering pumps feature flow monitoring control
- Multi-function valve for pressure, safety, anti-siphon & bleed
- Permanent data storage via system data logging
- ERMES webserver communication available via modem or Ethernet options
- Remote alarms via SMS/email (via ERMES if enabled)
- GSM/GPRS internal modem (option)
- Ethernet module (option)
- protection for control instrument and metering pumps
- Options available for chlorine dioxide gas leak detection (with alarms), system purging
- Reaction takes place at controlled pressures
- Systems sized for large-scale applications
- The chlorine dioxide solution produced is highly stable
- No chlorine dioxide loss due to the closed reaction chamber
- Uses dilute chemicals as precursors – hydrochloric acid (9%) & sodium chlorite (7.5%)
Description
EMEC LOTUS Brochure 2020
EMEC LOTUS MAXI Data Sheet R1-19.pdf
EMEC LOTUS MAXI Instruction Manual R9-03-19
| Name |
|---|
|
|
|
EMEC LOTUS Brochure 2020
|
|
EMEC LOTUS MAXI Data Sheet R1-19.pdf
|
|
EMEC LOTUS MAXI Instruction Manual R9-03-19
|
Additional information
| Configuration | Wall Mount |
|---|---|
| Variables Measured | CLO2, Temperature |
| Inputs | Amperometric Sensor, Pulse |
| Outputs | 4-20mA, Alarm Relay |
| Remote Comms | Via Optional LAN card, Via Optional Modbus, Via Optional Modem |
| IP Rating | IP65 |
