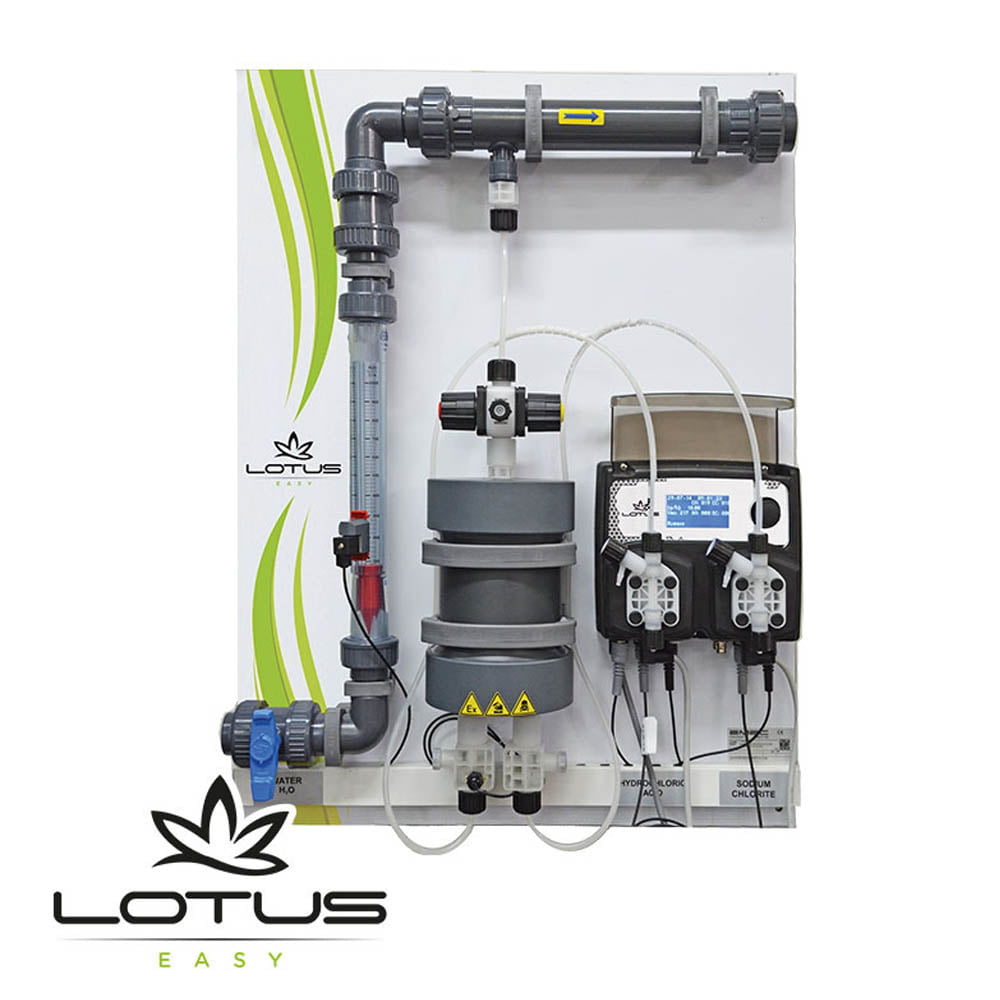

LOTUS EASY Low Cost CLO2 Generator (up to 80 gr/hr) 1
LOTUS EASY Low Cost CLO2 Generator (up to 80 gr/hr)
- Instantaneous chlorine dioxide production at 20,000 mg/l concentration
- Flow-proportional dosing control
- Inputs for water meter signal, stand-by control, chemical tank levels, 4-20 ma
- Flow and tank level alarms
- Metering pumps for acid and sodium chlorite
- All metering pumps feature flow monitoring control
- Multi-function valve for pressure, safety, anti-siphon & bleed
- protection for control instrument and metering pumps
- Static mixer and bypass line (40mm) integrated into system
- Bypass water flow detection
- 600 x 800 mm panel mounting
- Reaction takes place at controlled pressures
- The chlorine dioxide solution produced is highly stable
- No chlorine dioxide loss due to the closed reaction chamber
- Uses dilute chemicals as precursors – hydrochloric acid (9%) & sodium chlorite (7.5%)
Description
EMEC LOTUS Brochure 2020
EMEC LOTUS EASY Instruction Manual R3-07-15
| Name |
|---|
|
|
|
EMEC LOTUS Brochure 2020
|
|
EMEC LOTUS EASY Instruction Manual R3-07-15
|
Additional information
| Configuration | Wall Mount |
|---|---|
| Variables Measured | CLO2, Temperature |
| Outputs | 4-20mA, Alarm Relay |
| IP Rating | IP65 |
