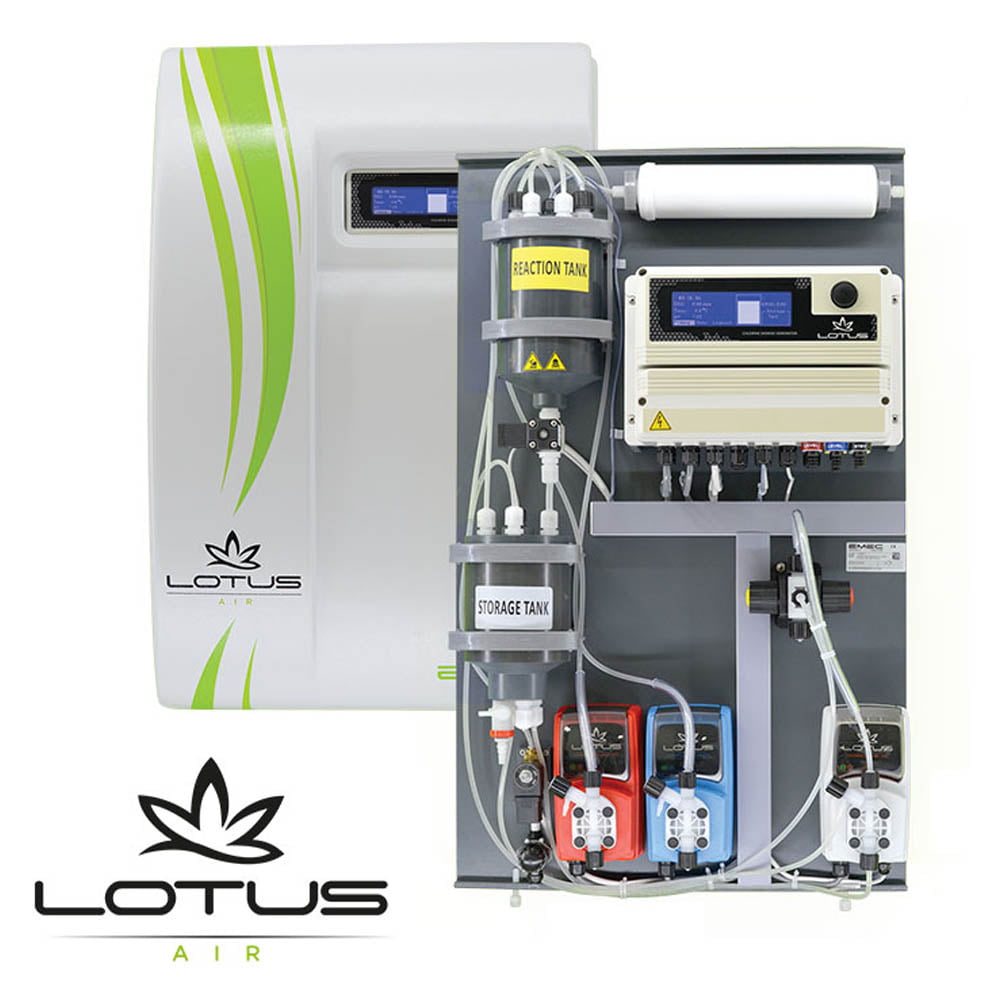

LOTUS AIR Batching CLO2 Generator (up to 10 gr/hr) 1
LOTUS AIR Batching CLO2 Generator (up to 60 gr/hr)
- Batch chlorine dioxide production at 2,000 mg/L concentration
- Flow-proportional dosing control
- Add-on option for chlorine dioxide sensor system to control to a measured residual setpoint
- ORP control option
- Inputs for water meter signal, stand-by control, chemical tank levels
- Double chamber system – reaction and storage tanks
- Flow and tank level alarms
- Metering pumps for acid, sodium chlorite and produced chlorine dioxide solution
- All metering pumps feature flow monitoring control
- Multi-function valve for pressure, safety, anti-siphon & bleed
- Permanent data storage via system data logging
- ERMES webserver communication available via modem or Ethernet options
- Remote alarms via SMS/email (via ERMES if enabled)
- GSM/GPRS internal modem (option)
- Ethernet module (option)
- protection for control instrument and metering pumps
- Reaction takes place at ambient pressure
- Multi-point injection capability
- No chlorine dioxide gas emissions
- Uses dilute chemicals as precursors – hydrochloric acid (9%) & sodium chlorite (7.5%)
Description
EMEC LOTUS AIR Data Sheet R1-03-17
EMEC LOTUS AIR Instruction Manual R18-06-16
EMEC LOTUS Brochure 2020
| Name |
|---|
|
|
|
EMEC LOTUS AIR Data Sheet R1-03-17
|
|
EMEC LOTUS AIR Instruction Manual R18-06-16
|
|
EMEC LOTUS Brochure 2020
|
Additional information
| Configuration | Wall Mount |
|---|---|
| Variables Measured | CLO2, Temperature |
| Inputs | Amperometric Sensor |
| Outputs | 4-20mA, Alarm Relay |
| Remote Comms | Via Optional LAN card, Via Optional Modbus, Via Optional Modem |
| IP Rating | IP65 |
