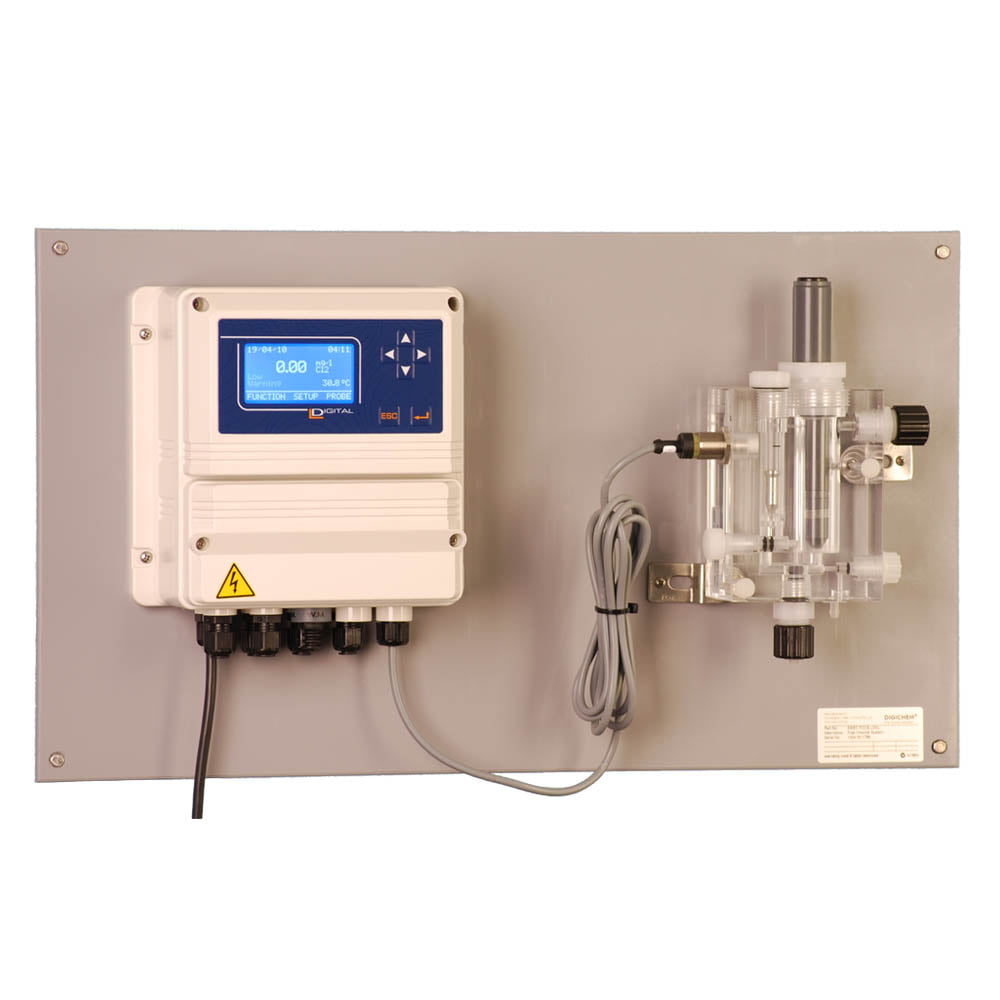

EMEC FCCS-LDCL CL2/CLO2 Control System on PVC Backboard 1
EMEC FCCS-LDCL CL2/CLO2 Control System on PVC Backboard
- Optional Amperometic cells for Free Chlorine, Total Chlorine, and Chlorine Dioxide available
- Controller & Flow Cell
- 2 x Proportional Outputs & 2 x ON/OFF outputs
- Dot matrix backlit LCD displays measured Chlorine (mg/L), temperature, date & time
- Programmable power-on delay
- High and low mg/L, and max dosing alarms
- 4-20mA for mg/L & 4-20mA for temperature
- Serial port for printer allows log printing
- RS485 for remote control
- Programmable cleaning output
- Can also be used for Hydrogen Peroxide, Ozone or Peracetic Acid Amperometric measuring cells
Description
Chlorine Dosing into Re-circulated tank rev 1.0
EMEC FCCS Data Sheet v1.0
EMEC FCCS-LDCL Installation Instructions v1.0
| Name |
|---|
|
Chlorine Dosing into Re-circulated tank rev 1.0
|
|
EMEC FCCS Data Sheet v1.0
|
|
EMEC FCCS-LDCL Installation Instructions v1.0
|
Additional information
| Configuration | Wall Mount, PVC Backboard Mounted |
|---|---|
| Variables Measured | Cl2, CLO2, H2O2, Temperature |
| Inputs | Amperometric Sensor, Flow Switch Contact, Tank Level Dry Contact |
| Max Pressure / Temp | 0.5 bar @ 40°C |
| IP Rating | IP65 |
