MX-900-P150

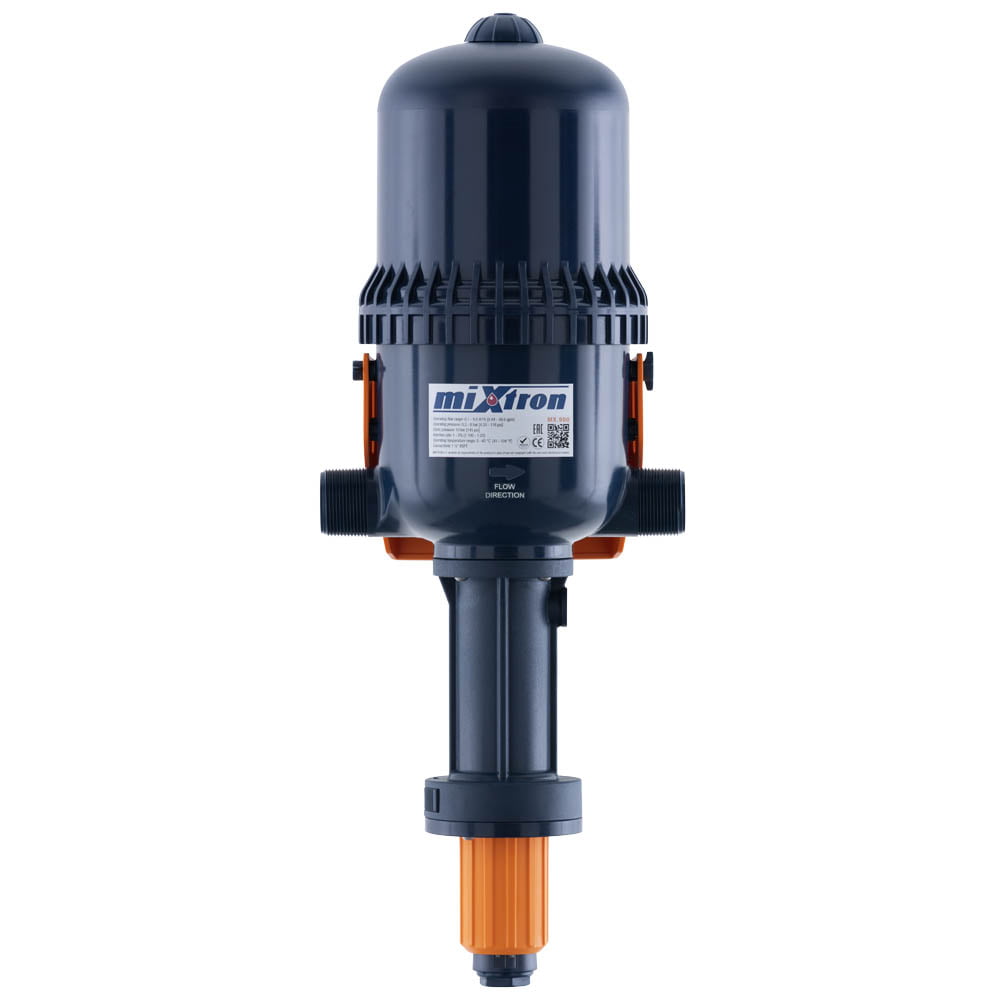

MIXTRON P150 High Flow Water Powered Dosing Pump with 1-5% Ratio
The Mixtron High Flow P150 is a powerful, high flow water dosing pump designed for precision dosing in demanding applications. With a dosing ratio of 1-5% and water flow capacities up to 9000 L/hr across three models (5, 7, and 9 kL/hr), this flow-driven dosing system provides reliable, efficient operation without electricity. Ideal for livestock care, fertigation, and metalworking lubrication, it is built to handle high flow rates while maintaining dosing accuracy.
Key Specifications:
- Dosing Ratio: Adjustable from 1-5% of water flow rate
- High Flow Capacity: Supports up to 9000 L/hr (choose from 5, 7, or 9 kL/hr models)
- Operating Pressure: 0.3-8 bar (maximum 10 bar static)
- Water Temperature Range: 5-40°C
- Applications: Suitable for livestock, fertigation, and metalworking lubrication
- Complete Setup Includes: Bracket, 1.5m suction tube, and foot filter for easy installation
The Mixtron P150 high flow dosing pump is the ideal solution for flow-driven dosing systems, providing efficient, consistent performance in a variety of industrial and agricultural applications.
Description
hbspt.cta.load(4586940, ‘c4effada-5244-4d3c-afc6-67d126c0cbe7’, {});
MX.500.P150
MX.700.P150
MX.900.P150
Mixtron MX medium range pumps Instruction Manual
Mixtron Product Summary 2023
| Name |
|---|
|
MX.500.P150
|
|
MX.700.P150
|
|
MX.900.P150
|
|
Mixtron MX medium range pumps Instruction Manual
|
|
Mixtron Product Summary 2023
|
Additional information
| Configuration | Wall Mount |
|---|---|
| Max Pressure / Temp | 0.3 – 8 bar water pressure / 5 – 40°C |
| Process Connection | 1-1/2 inch BSP Male |
| Materials | POM/PP/HDPE, VITON Seals (EDPM on request) |
| Max Viscosity | 400 Centistokes @ 25 deg Celsius |
| IP Rating | IP68 (Mount Out of Direct Sun) |
| Install Kit Included | Bracket, 1.5m suction tube & foot filter |
Models / Part Numbers
Water Flow Rates:
- MX 500 P150 (500 – 5000 l/hr, 5 m3/hr max)
- MX 700 P150 (700 – 7000 l/hr, 7 m3/hr max)
- MX 900 P150 (900 – 9000 l/hr, 9 m3/hr max)
