MIXTRON-P110

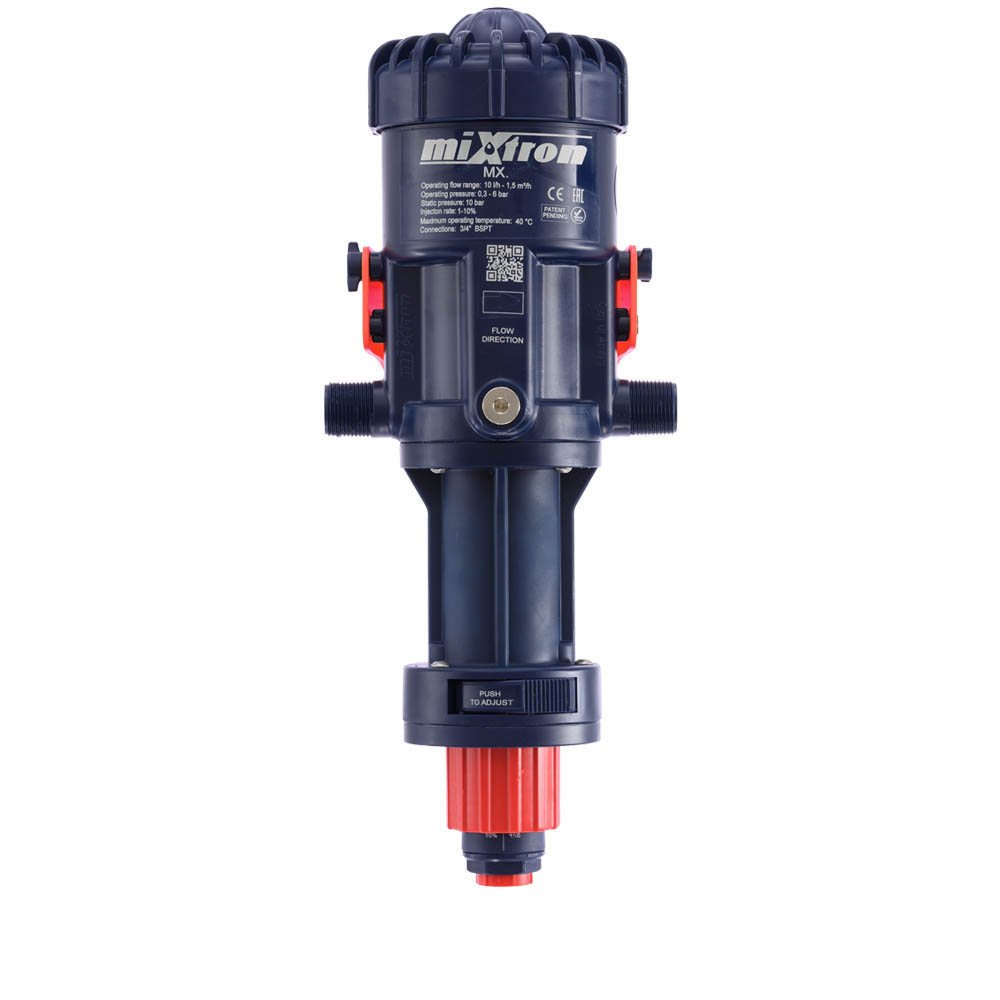

MIXTRON P110 Water Powered Dosing Pump 1 – 10%
- Water powered dosing pumps, Water powered proportional dosing pumps, Water driven dosing pumps, Water driven proportional dosing pumps, Fertiliser Injector
- Dosing Ratio: 1 – 10 % of water flow rate
- Applications: Metalworking lubrication
- Includes: Bracket, 1.5m suction tube & foot filter (for more 14x20mm spiral suction hose, order part no MX 1840000, per metre)
Description
Installation-Instruction-for-High-flow-Applications-Rev-1.1.pdf
MIXTRON-Full-Product-Brochure-2019.pdf
MX-Dosing-Rate-Selection.xlsx
Mixtron-MX-Pumps-Data-Sheet-0518-rev2.pdf
Mixtron-MX-Pumps-Operation-and-Maintenance-Manual-Dec-19.pdf
Mixtron-Product-Summary-2023.pdf
Mixtron-Video-2.mov
| Name |
|---|
|
Installation-Instruction-for-High-flow-Applications-Rev-1.1.pdf
|
|
MIXTRON-Full-Product-Brochure-2019.pdf
|
|
MX-Dosing-Rate-Selection.xlsx
|
|
Mixtron-MX-Pumps-Data-Sheet-0518-rev2.pdf
|
|
Mixtron-MX-Pumps-Operation-and-Maintenance-Manual-Dec-19.pdf
|
|
Mixtron-Product-Summary-2023.pdf
|
|
Mixtron-Video-2.mov
|
Additional information
| Configuration | Wall Mount |
|---|---|
| Max Pressure / Temp | 0.3 – 6 bar water pressure / 5 – 40°C |
| Process Connection | 3/4 inch BSPT Male |
| Materials | POM, VITON Seals (EDPM on request) |
| Max Viscosity | 400 Centistokes @ 25 deg Celsius |
| IP Rating | IP68 (Mount Out of Direct Sun) |
| Install Kit Included | Bracket, 1.5m suction tube & foot filter |
Models / Part Numbers
Water Flow Rates:
- MX 075 P110 (5 – 750 l/hr, 0.75 m3/hr max)
- MX 150 P110 (5 – 1500 l/hr, 1.5 m3/hr max)
- MX 250 P110 (10 – 2500 l/hr, 2.5 m3/hr max)
- MX 300 P110 (10 – 3000 l/hr, 3 m3/hr max)
