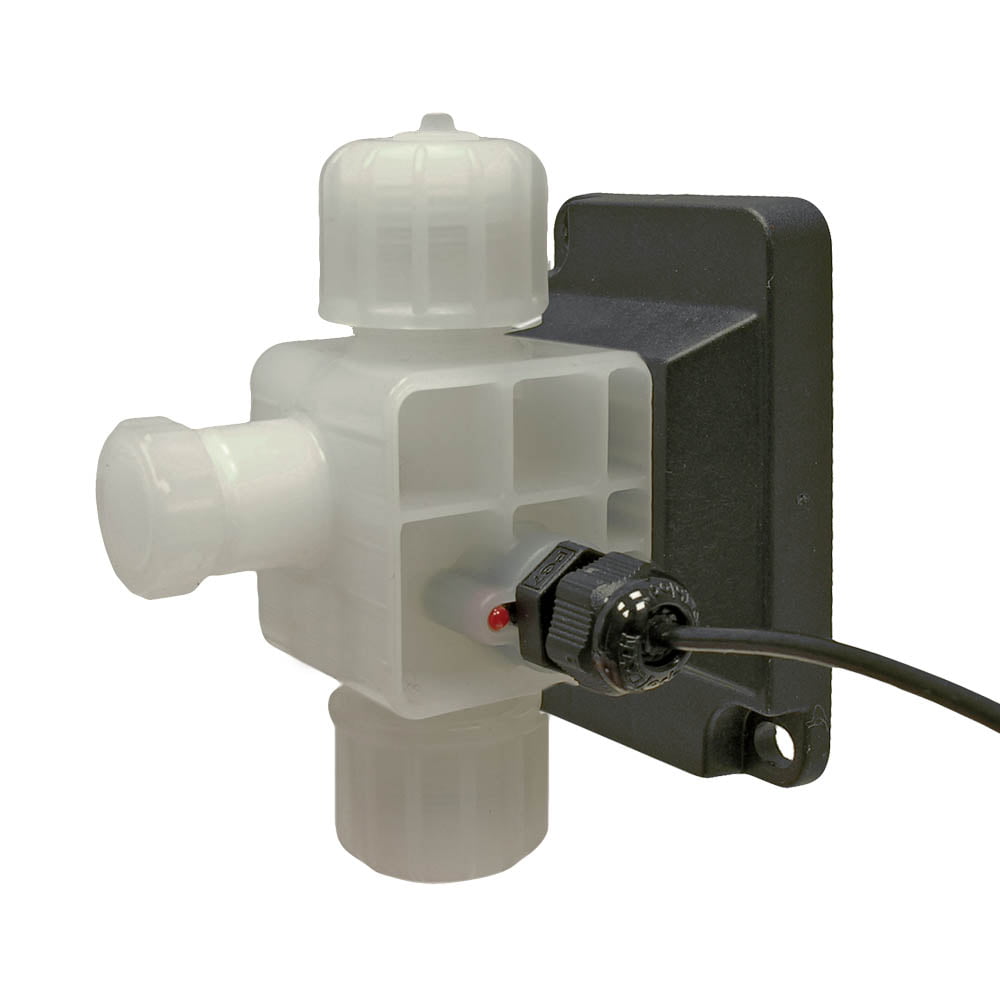

EMEC SEFL Dosing Pump Delivery Line Flow Switch (Wall Mount)
EMEC SEFLS Dosing Pump Delivery Line Flow Switch (Wall Mount)
- PVDF Body
- Normally Closed (N.C.) Contact Switch with Red LED flow indication
- 1/2 inch Inlet & Outlet connections for 4×6 tube (6×8 or 8×12 tube connections available)
- Cable 1m with BNC
- Adjustable Sensitivity
- Viton or EPDM O-ring options available for Acid or Caustic dosing applications
- 45°C Max Temperature Operation
- EMEC SEFLS for PVDF Body with Viton Seals
- EMEC SEFLPS for PP Body wtih EPDM seals
- EMEC SEFLS V050011SC for PVDF Body with Viton Seals for LPV pumps (8000 cps max)
Description
EMEC SEFL Flow Sensors Data Sheet R11-19
EMEC SEFL Instruction Manual R2-03-20
| Name |
|---|
|
EMEC SEFL Flow Sensors Data Sheet R11-19
|
|
EMEC SEFL Instruction Manual R2-03-20
|
Additional information
| Variables Measured | Flow Status |
|---|---|
| Outputs | Pulse |
| Process Connection | 1/2 inch BSP Male for 4x6mm or 6x8mm Tube |
| Materials | PVDF Body |
| IP Rating | IP65 |
