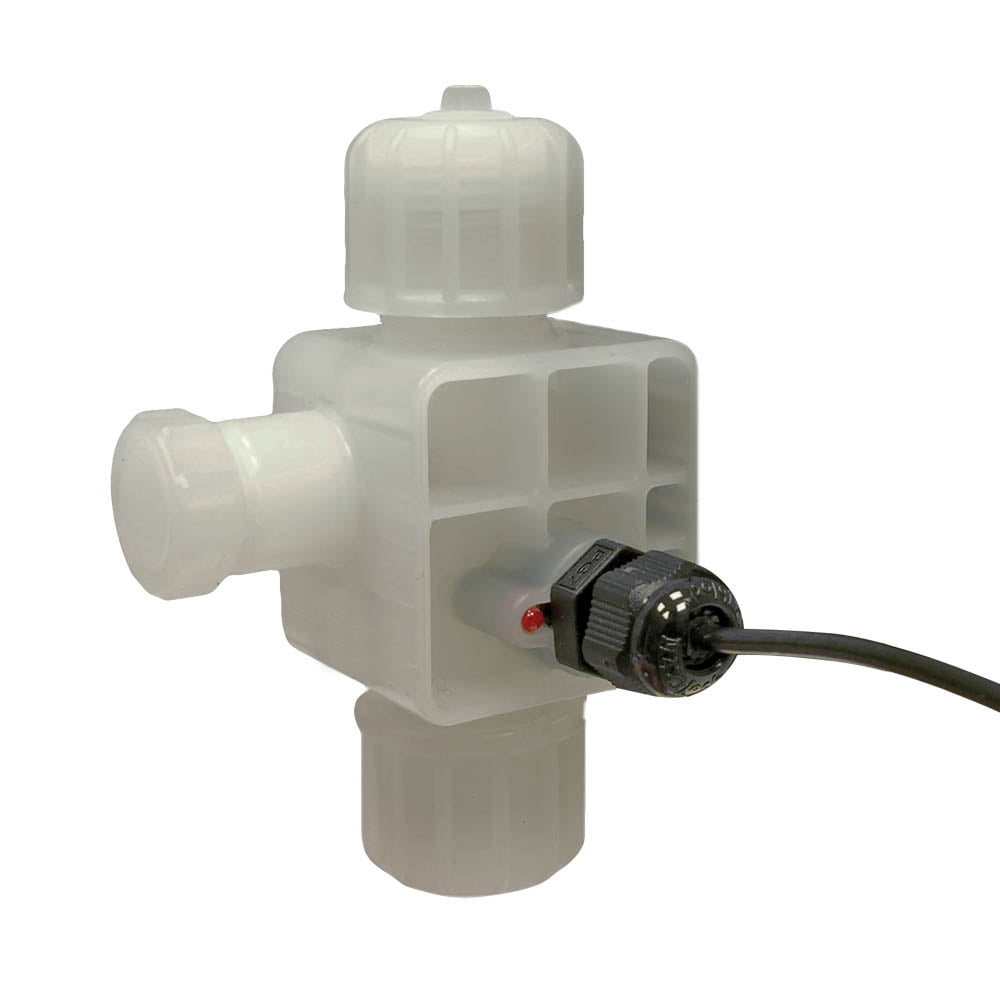

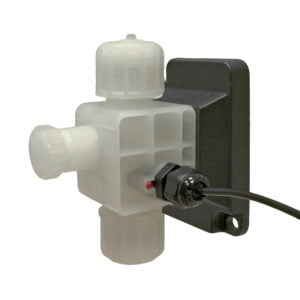

EMEC SEFL Dosing Pump Delivery Line Flow Switch (Pump Mount for KMF pumps only)
EMEC SEFL Dosing Pump Delivery Line Flow Switch (Pump Mount for KMF pumps only)
- To be mounted directly on KMF dosing pump head’s delivery valve (pump mount not suitable for AMSMF pumps)
- Normally Closed (N.C.) Contact Switch with Red LED flow indication
- 1/2 inch Inlet & Outlet connections to allow direct connection to pump discharge valve on inlet and 8×12 tube on outlet
- Cable 1m with BNC
- Adjustable Sensitivity
- 45°C Max Temperature Operation
- Models suitable for 4x6mm or 6x8mm tube
- EMEC SEFL for PVDF Body with Viton Seals
- EMEC SEFLP for PP Body wtih EPDM seals
- EMEC SEFL V350011SC for PVDF Body with Viton Seals for LPV pumps (8000 cps max)
Description
EMEC SEFL Flow Sensors Data Sheet R11-19
EMEC SEFL Instruction Manual R2-03-20
