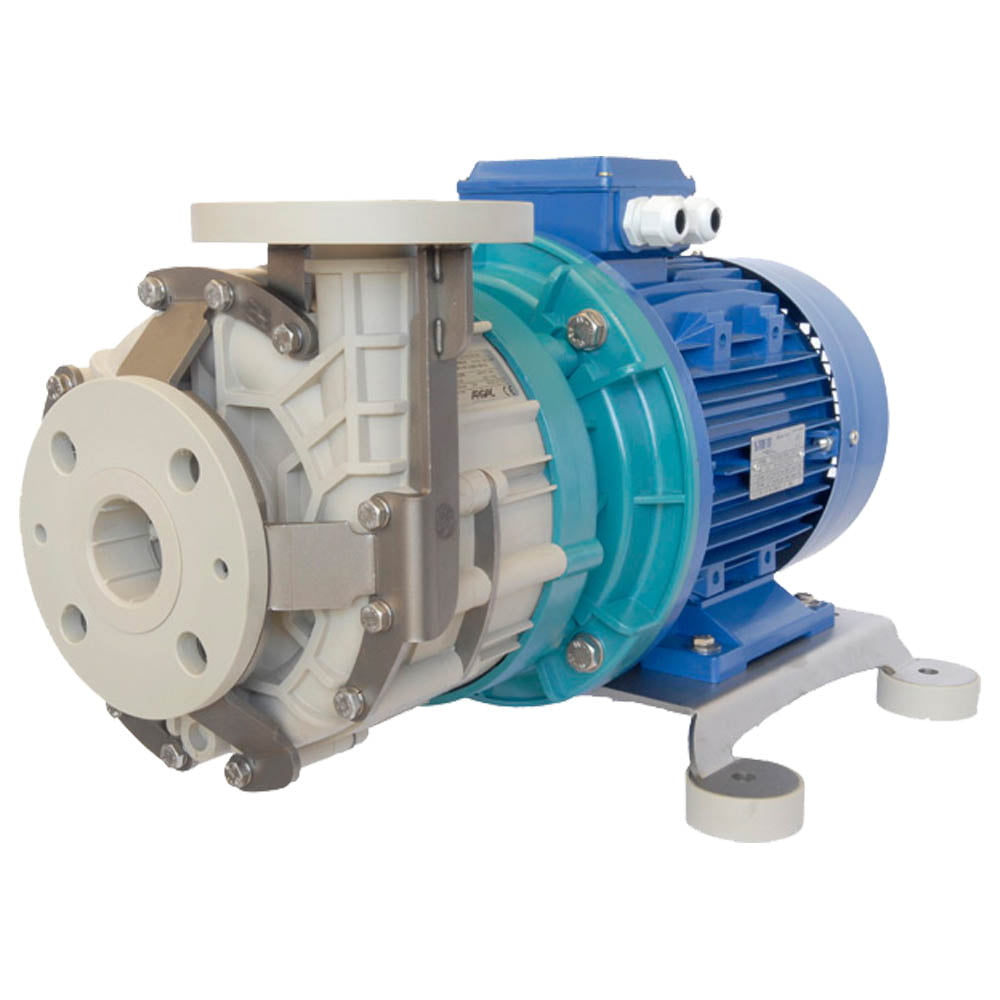

Mag Drive Pumps – Argal TMR G3 Large Duty

  • Medium to large aggressive chemical transfer pump
  • Hermetically sealed. Static Gasket
  • 80-800 L/min Flows
  • Up to 40 metres head
  • 415VAC 3 Phase TEFC motors (Special motors upon request)
  • Max 1.35 SG with PP liquid end and “P” magnet or 1.8 SG with CTFE liquid end and “S” magnet
  • ANSI or ISO flange connection
  • 0-100 DegC Temperature range
  • No Chemical Limitations
  • Light Abrasives
  • Dry run possible using self aligning guide bushings in HD carbon
  • Balanced Impellers
  • Wetted end guard plates in S/S
  • Baseplates available upon request
  • Custom selection service for each application
Compare
SKU: ARG TMR G3 Category: Tag: Brand:

Description

Superseded
ARG-TMR-G3-Instruction-Manual.pdf
ARGAL-Mag-Drive-Chemical-Compatibility-Chart.pdf
ARGAL_ROUTE_Series_TMR_and_ZMR_Data_Sheet_01.2019.pdf
Superseded
ARG-TMR-G3-Instruction-Manual.pdf
ARGAL-Mag-Drive-Chemical-Compatibility-Chart.pdf
ARGAL_ROUTE_Series_TMR_and_ZMR_Data_Sheet_01.2019.pdf
Name
Superseded

Additional information

Configuration

Foot Mount

Max Flow / Pressure (Head)

20 m3/hr @ 36m head, 30 m3/hr @ 25m head, 36 m3/hr @ 30m head

Port Size

ANSI Flange, DN25 to DN300 Flange EN1092-1

Materials

CFF/E-CTFE Body, EPDM O-rings, FPM Viton O-rings, GFR-PP Body

IP Rating

IP55
