Mag Drive Pumps – Argal TMR G2 Large Duty

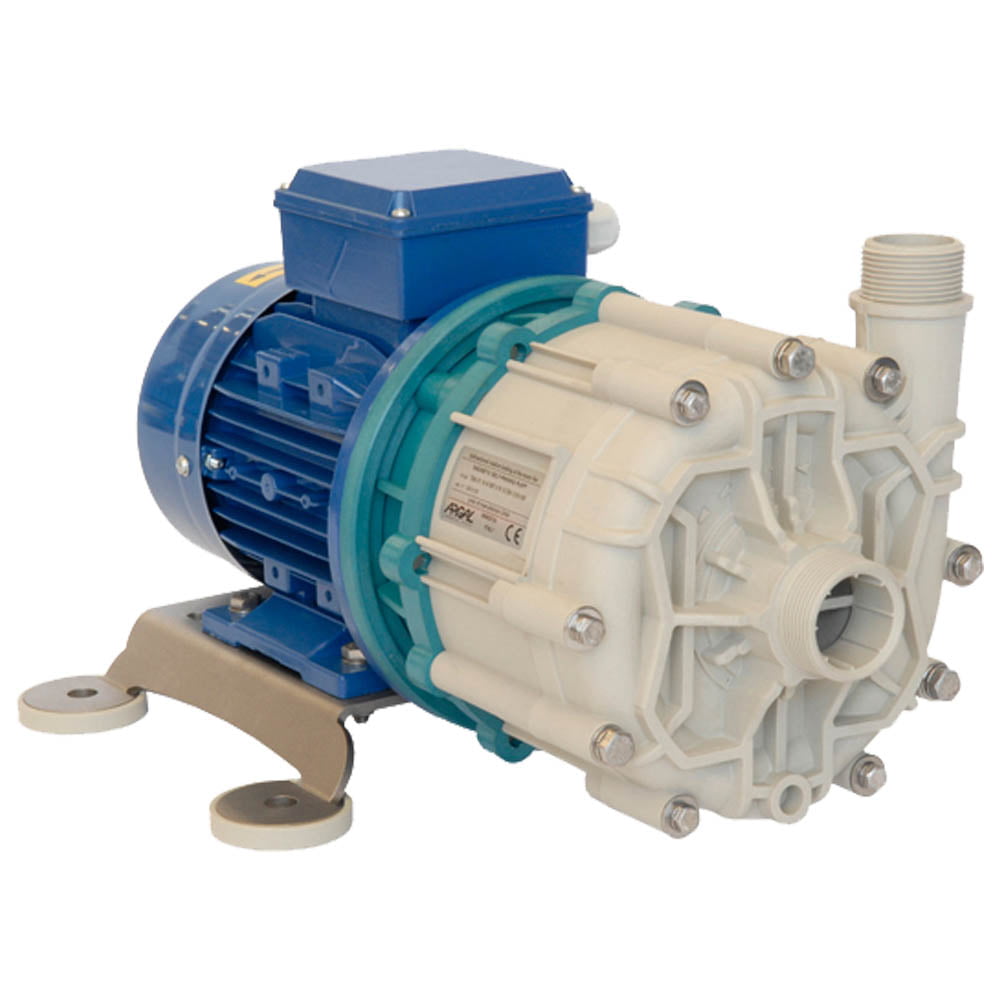

The Argal TMR G2 mag drive pump is specifically engineered for medium to large chemical transfer applications, handling aggressive chemicals with precision and reliability. Featuring hermetically sealed technology and a robust design, this pump ensures leak-free, efficient performance across a wide range of industries.
Features:
- Flow Rate: 50-500 L/min for versatile applications.
- Head: Handles up to 25 meters efficiently.
- Motor Options: 415VAC 3-phase TEFC motors (special configurations available on request).
- Material Compatibility: Max 1.35 SG with PP liquid end and “P” magnet or 1.8 SG with CTFE liquid end and “S” magnet for extended chemical resistance.
- Temperature Range: Operates seamlessly between 0-100°C.
- Chemical Handling: Suitable for all chemicals, including light abrasives, with no limitations.
- Innovative Design: Dry run capability with self-aligning HD carbon guide bushings.
- Advanced Components: Balanced impellers and wetted guard plates in stainless steel for enhanced durability.
- Customisation: Baseplates and custom selection services available to fit specific applications.
Choose Argal pumps for high-performance, reliable solutions to meet your toughest chemical handling needs.
Description
ARGAL Mag Drive Chemical Compatibility Chart
ARGAL TMR G2.20 ROUTE Instruction Manual Rev 25-09_20ual
ARGAL_ROUTE_Series_TMR_and_ZMR_Data_Sheet_01.2019
| Name |
|---|
|
|
|
ARGAL Mag Drive Chemical Compatibility Chart
|
|
ARGAL TMR G2.20 ROUTE Instruction Manual Rev 25-09_20ual
|
|
ARGAL_ROUTE_Series_TMR_and_ZMR_Data_Sheet_01.2019
|
Additional information
| Configuration | Foot Mount |
|---|---|
| Max Flow / Pressure (Head) | 10 m3/hr @ 10m head, 10 m3/hr @ 15m head, 16 m3/hr @ 15m head, 16 m3/hr @ 20m head, 2 m3/hr @ 30m head, 6 m3/hr @ 10m head |
| Port Size | ANSI Flange, DN25 to DN300 Flange EN1092-1 |
| Materials | CFF/E-CTFE Body, EPDM O-rings, FPM Viton O-rings, GFR-PP Body |
| IP Rating | IP55 |
