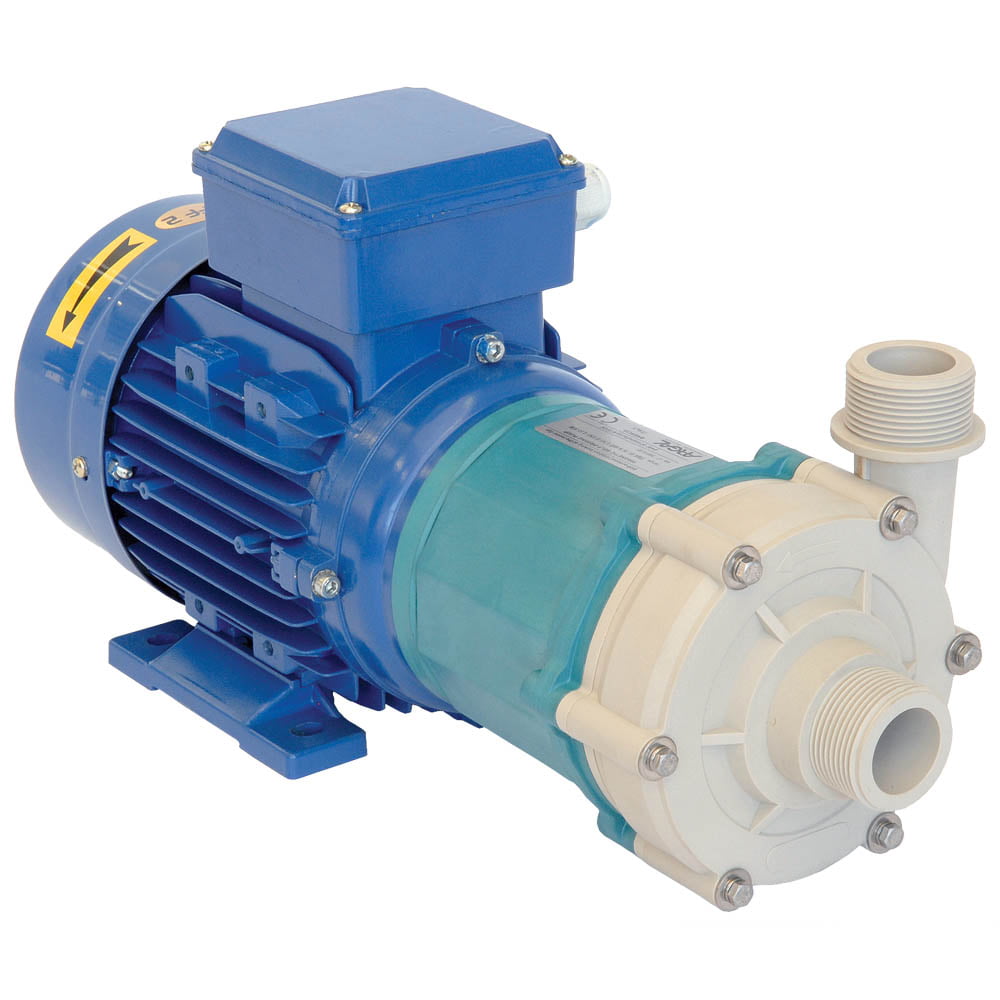

Mag Drive Pumps - Argal TMP Medium Duty 1
Mag Drive Pumps – Argal TMP Medium Duty
- Medium duty chemical transfer pumps
- 50-200 L/min Flows
- 240VAC Single Phase 2 pole splashproof or 415VAC 3 Phase TEFC motors
- BSP Threaded or ANSI flange connections
- 0-60 DegC Temperature range
- Max 1.35 SG with PP liquid end or 1.8 SG with CTFE liquid end
- Up to 30% Acid or Alkaline Applications (0-80DegC) with standard PP liquid end
- Optional CTFE liquid end for greater chemical compatibility and temp range (0-100 DegC)
- Viton or EPDM O-ring
Description
ARGAL Mag Drive Chemical Compatibility Chart
ARGAL TMP Instruction Manual Rev 8 09_20
ARGAL_PRIMA_TMP_Data_Sheet_01.2018
| Name |
|---|
|
|
|
ARGAL Mag Drive Chemical Compatibility Chart
|
|
ARGAL TMP Instruction Manual Rev 8 09_20
|
|
ARGAL_PRIMA_TMP_Data_Sheet_01.2018
|
Additional information
| Configuration | Foot Mount |
|---|---|
| Max Flow / Pressure (Head) | 4 m3/hr @ 4m head, 4 m3/hr @ 8m head, 6 m3/hr @ 10m head, 6 m3/hr @ 8 head |
| Port Size | 1 inch BSP Male, 1-1/4 inch BSP Male |
| Materials | CFF/E-CTFE Body, EPDM O-rings, FPM Viton O-rings, GFR-PP Body |
| IP Rating | IP55 |
