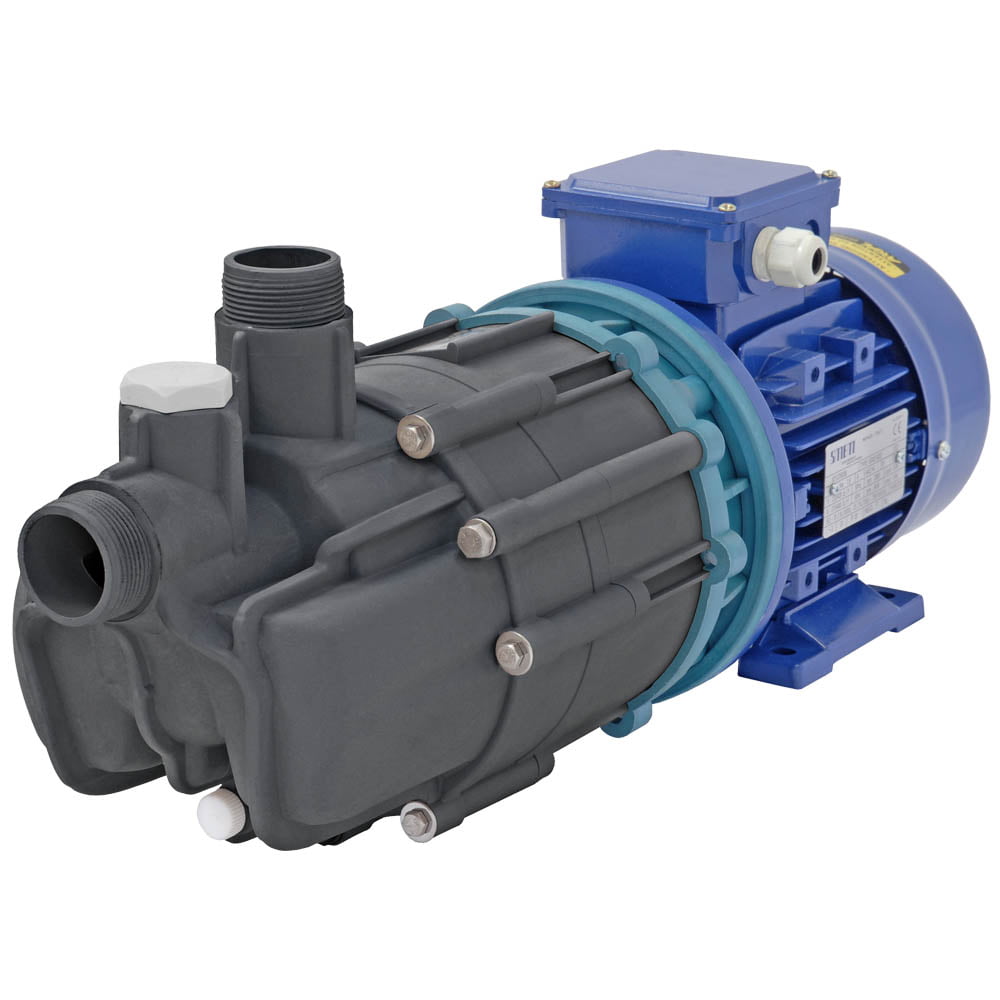

Mag Drive Pumps – Argal TMA 10.14 Self Priming
- Higher suction head and shorter priming times than self priming centrifugal pumps
- Can draw liquid with 1.9 SG from negative 3.5m at 20 degC
- 30-300 L/min flows (10 m3 at 14m head)
- 415VAC 3 Phase TEFC motors
- BSP Threaded or ANSI flange connections
- 0-90 DegC Temperature range
- Max 1.95 SG with CTFE liquid end
- Up to 30% Acid or Alkaline Applications (0-80DegC) with standard PP liquid end
- Optional CTFE liquid end for greater chemical compatibility and temp range (0-100 DegC)
- Viton or EPDM O-ring
Description
ARG-TMA-Data-Sheet-2014.pdf
ARGAL-Mag-Drive-Chemical-Compatibility-Chart.pdf
| Name |
|---|
|
ARG-TMA-Data-Sheet-2014.pdf
|
|
ARGAL-Mag-Drive-Chemical-Compatibility-Chart.pdf
|
Additional information
| Configuration | Foot Mount |
|---|---|
| Max Flow / Pressure (Head) | 14 m3/hr @ 9m head |
| Port Size | 1-1/2 inch BSP Male |
| Materials | CFF/E-CTFE Body, EPDM O-rings, FPM Viton O-rings, GFR-PP Body |
| IP Rating | IP55 |
