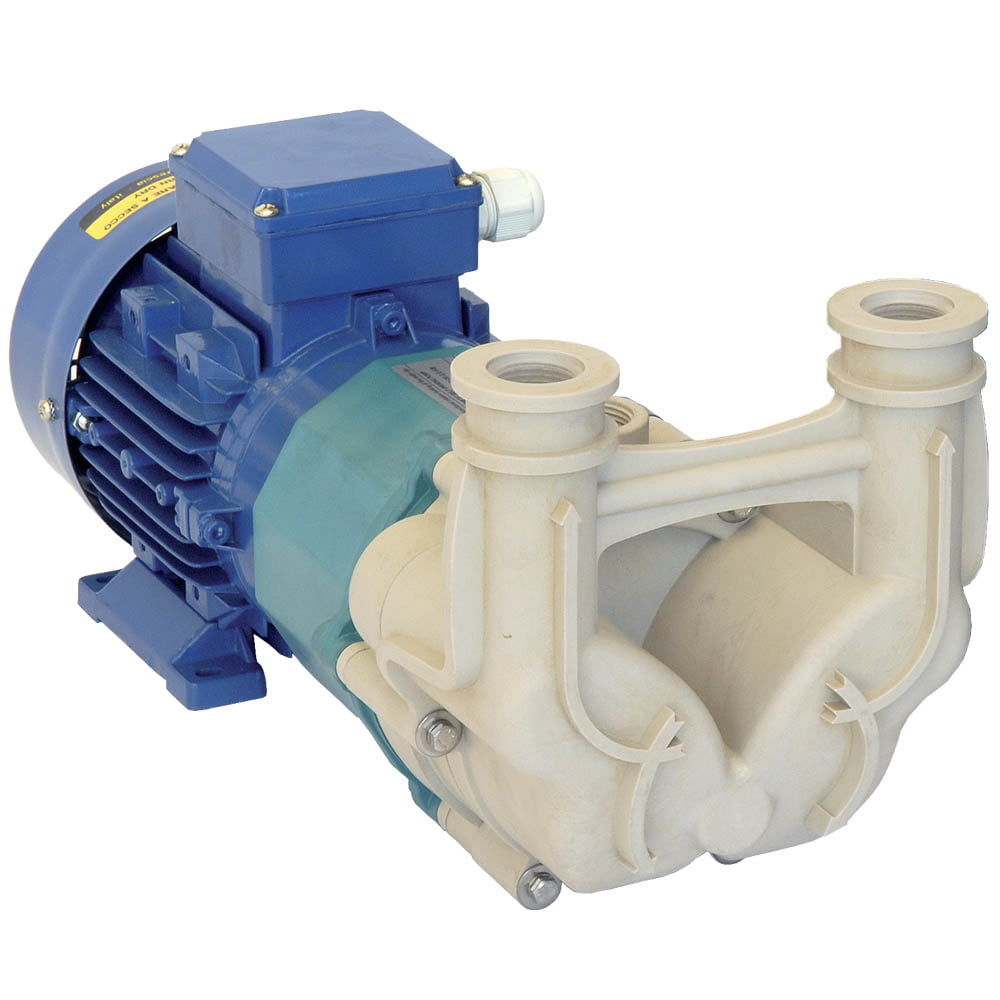

Mag Drive Pumps – Argal TMA 01.16 Self Priming
The Argal TMA 01.16 self-priming pump is a compact yet robust solution for medium-duty chemical transfer applications. Designed with advanced TMA magnetic drive technology, it provides precise handling of chemicals, including acids and alkalis, ensuring safe and efficient operations.
Features:
- Flow Rate: Handles 5-40 L/min (1 m³ at 16m head), ideal for medium-duty operations.
- Durable Motors: Equipped with 415VAC 3-phase TEFC motors for dependable performance.
- Connection Options: BSP threaded or ANSI flange connections for easy installation.
- Temperature Range: Operates from 0-60°C with standard components (up to 100°C with CTFE liquid end).
- Chemical Handling: Max 1.35 SG with PP liquid end or 1.8 SG with CTFE liquid end for enhanced chemical compatibility.
- Acid and Alkaline Applications: Handles up to 30% acid or alkaline solutions at 0-80°C with the standard PP liquid end.
- Optional Enhancements: CTFE liquid end for improved chemical resistance and higher temperature tolerance.
- Seals: Viton or EPDM O-rings for optimal performance in varied environments.
The Argal TMA 01.16 is a trusted choice among TMA magnetic drive pumps, offering reliable and efficient chemical transfer for medium-duty applications.
Description
ARGAL Mag Drive Chemical Compatibility Chart
ARGAL TMA Data Sheet 2014
ARGAL TMA Pump Instruction Manual
| Name |
|---|
|
ARGAL Mag Drive Chemical Compatibility Chart
|
|
ARGAL TMA Data Sheet 2014
|
|
ARGAL TMA Pump Instruction Manual
|
Additional information
| Configuration | Foot Mount |
|---|---|
| Max Flow / Pressure (Head) | 1.6 m3/hr @ 9m head |
| Port Size | 3/4" BSP Female |
| Materials | CFF/E-CTFE Body, EPDM O-rings, FPM Viton O-rings, GFR-PP Body |
| IP Rating | IP55 |
