Effluent Trade Waste pH Correction Batching System

Beautiworx is a contract manufacturer of hair, bath, beauty and body products. In 2013 construction began on their new premises in
Dandenong South (Victoria). Mary Pearce, Beautiworx Quality Assurance Officer was keen to get their Trade Waste discharge to
meet the local Water Authorities regulations. Mary contacted Convergent Water Controls in Melbourne who visited the new site
and discussed options. From this a brief was given to design, manufacture, install and commission an effluent trade waste
system for batch pH correction

Description

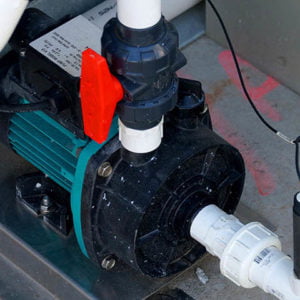

Waste enters the 1.36m3 polycarbonate tank and is circulated via a pump to ensure mixing with a pH

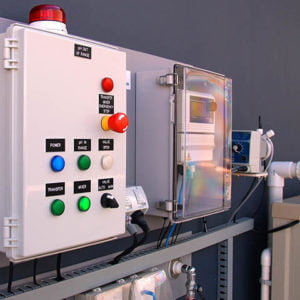

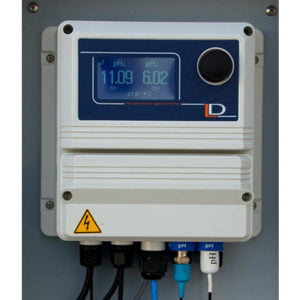

probe installed into PVC piping prior to the pump inlet. The pH is monitored by an EMEC LDPHPH

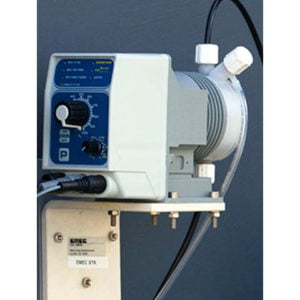

controller and adjusted via an EMEC Diaphragm Caustic Dosing Pump when out of the programmed
parameter.

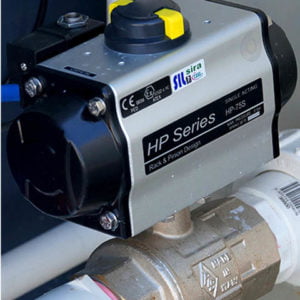

Once pH is balanced the EMEC LDPHPH controller actuates a ball valve allowing the effluent to drain

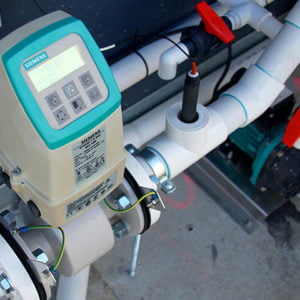

through a Mag Flow meter to sewer. All this activity and measurements are logged via an LAN
connection for reporting via the Emec ERMES monitoring & control system.

Tank

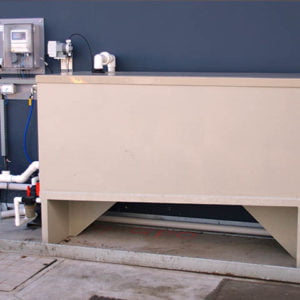

1.36m3 polycarbonate tank with a waste inlet, valve actuated outlet, overflow to shallow bunding and
pump recirculation to ensure no foaming of waste in tank.
