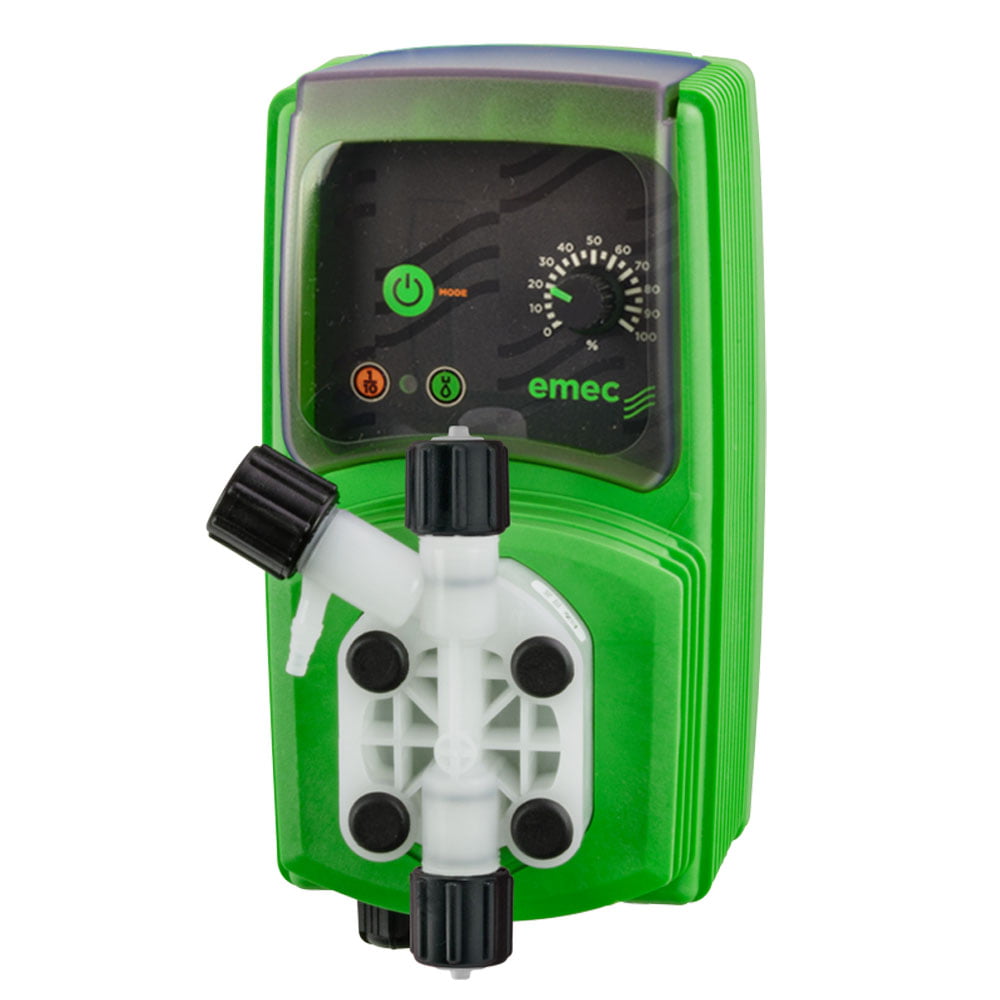

EMEC VCO Constant Mode Pump

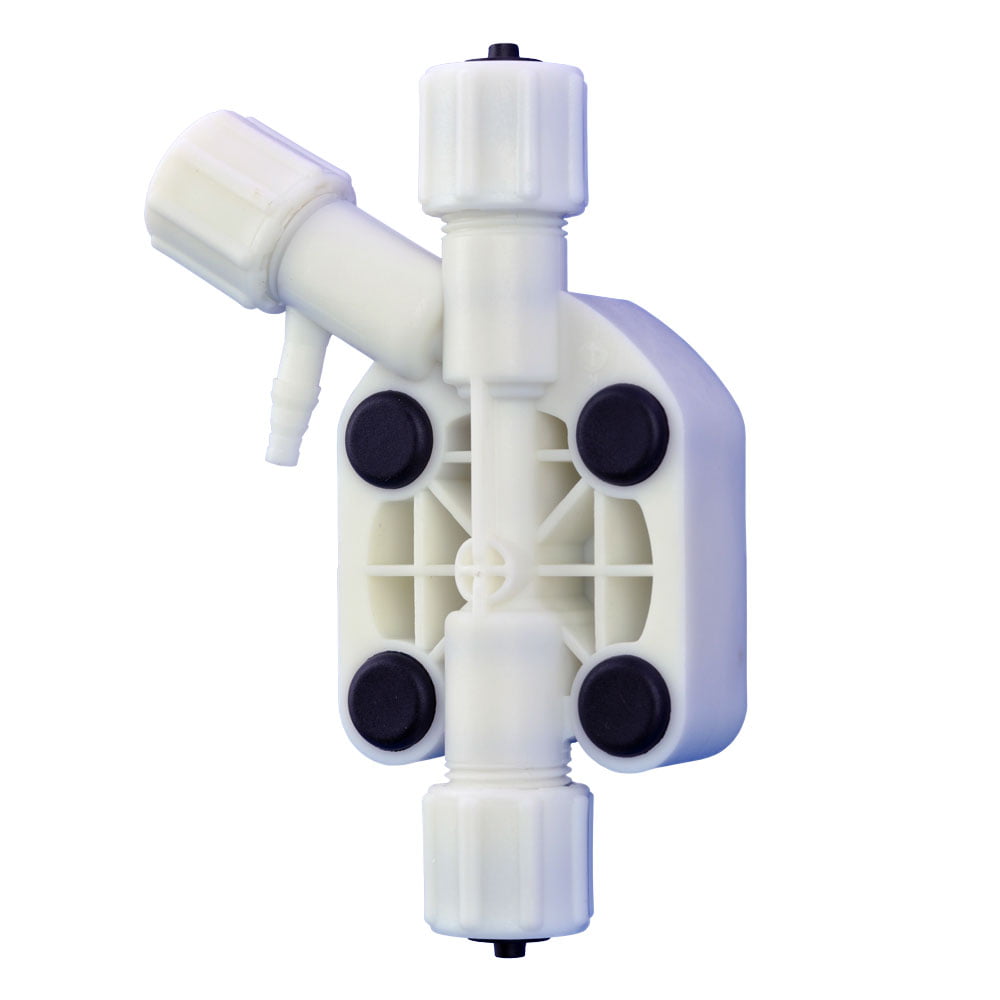

PP-Head-for-EMEC-V-Series-Pumps
1
of
2
Loading...
Range: EMEC Dosing Pumps
EMEC VCO 和 VACO 恒压模式泵（1 升/小时至 15 升/小时）
EMEC | SKU:
EMEC VCO 02 15 FP
EMEC VCO 和 VACO 恒压模式泵（1 升/小时至 15 升/小时） - 15 l/hr @ 2 bar / PVDF+FP+CE is backordered and will ship as soon as it is back in stock.
- 包括安装套件，即底阀、注射阀、2米吸入管和2米输送管
- 标准头： PVDF 带 Viton 密封件（适用于酸或氯）
- 腐蚀性头： PP，带 EPDM 密封件和 SS 球
- 速度调节（1-100%）以适应不同的剂量率
- 带有 10:1 速度分配器的额外调节
- 底阀、吸入阀和输送阀中的双球止回阀
- 持久耐用的固体特氟龙隔膜
- 可靠且准确的剂量
- 仅需 2 个螺丝即可进行壁挂安装
- 提示：查看下方可用的型号/零件编号
Specifications
Specifications
-
ConfigurationWall Mount, Standard Head
-
Install Kit Included4x6mm tube (<12 l/hr) or 6x8mm tube (12 l/hr or more), injection valve & foot valve
-
IP RatingIP65
-
MaterialsCeramic Balls, EPDM O-rings, FKM B O-rings & Seats, PP Head, PP Valve Bodies, PTFE Diaghragm/s, PVDF Head, PVC Valve Bodies, SS Balls
-
Max Flow / Pressure (Head)15 l/hr @ 2 bar, 1 l/hr @ 5 bar, 10 l/hr @ 10 bar, 10 l/hr @ 3 bar, 2 l/hr @ 15 bar, 6 l/hr @ 7 bar
-
Max Viscosity100 cps, 600 cps with optional SS balls
-
Optional Tube Size1/4 inch, 3/8 inch, 5×8 or 6x9mm
-
Process Connection1/2 inch BSP Male
Downloads
Downloads
-
Chemical Compatibility Charts
-
Data Sheets
-
Instruction Manuals
-
Quick Guides
-
Spare Parts
