Range: EMEC Dosing Pumps

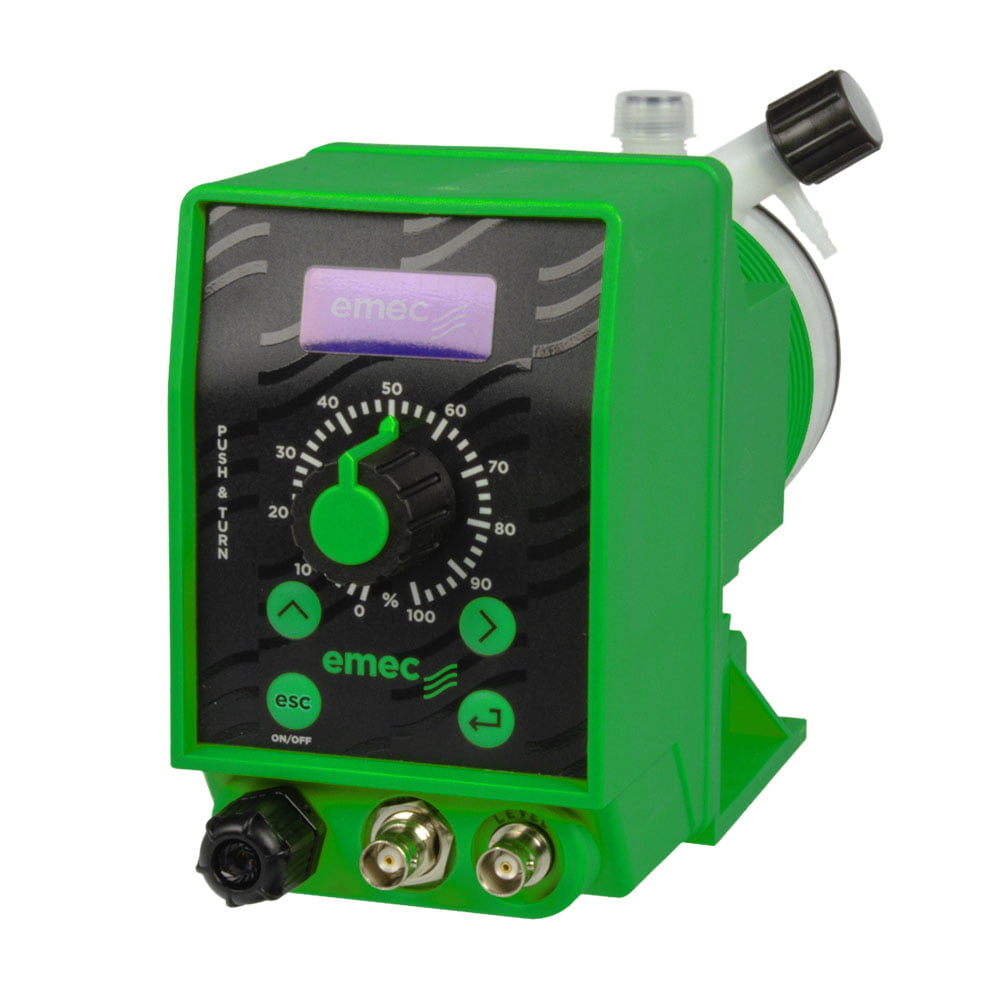

EMEC KMF 和 KAMF 数字多功能泵（1 升/小时至 18 升/小时）
EMEC | SKU:
EMEC KMF 02 18 FP
EMEC KMF 和 KAMF 数字多功能泵（1 升/小时至 18 升/小时） - 18 l/hr @ 2 bar / PVDF+FP+CE is backordered and will ship as soon as it is back in stock.
- 包括安装套件，即底阀、注射阀、2米吸入管和2米输送管
- 可编程模式：常数、脉冲乘法/除法、PPM、百分比、批量、电压、毫安

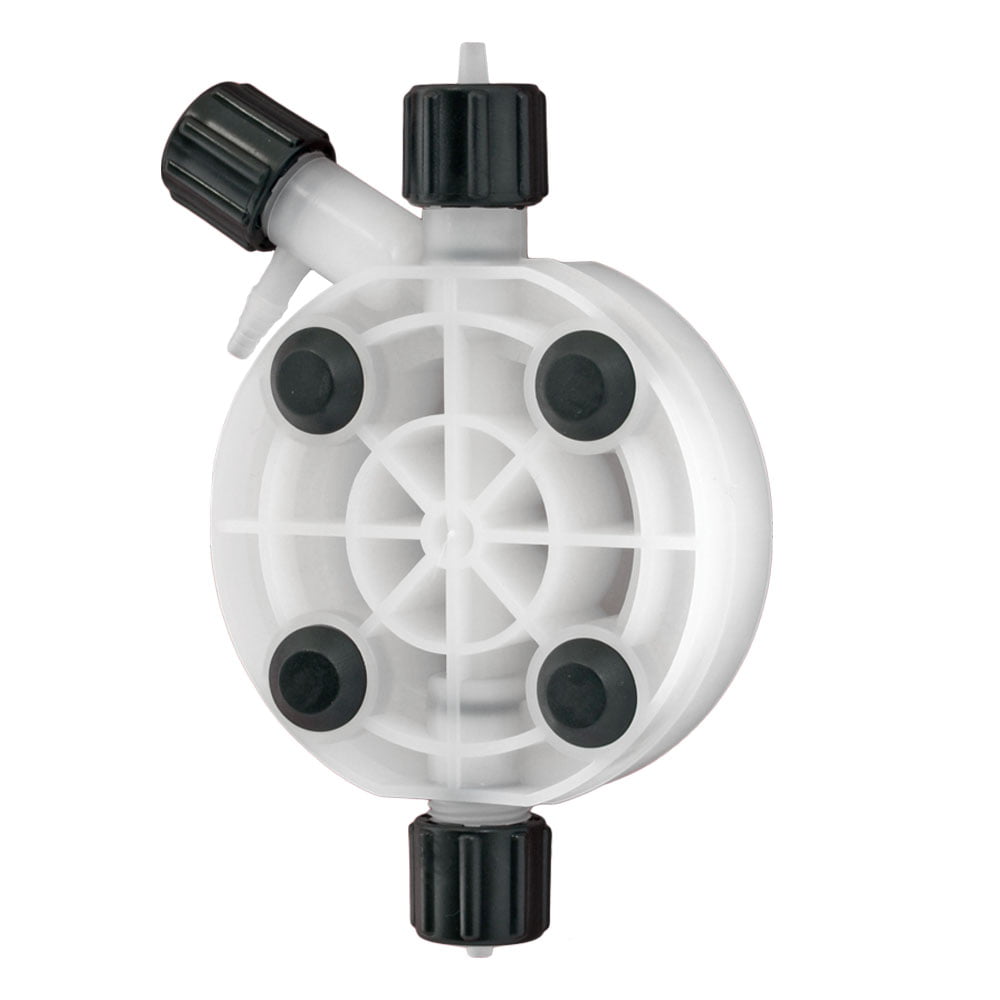

- 标准头： PVDF，带 Viton 密封件

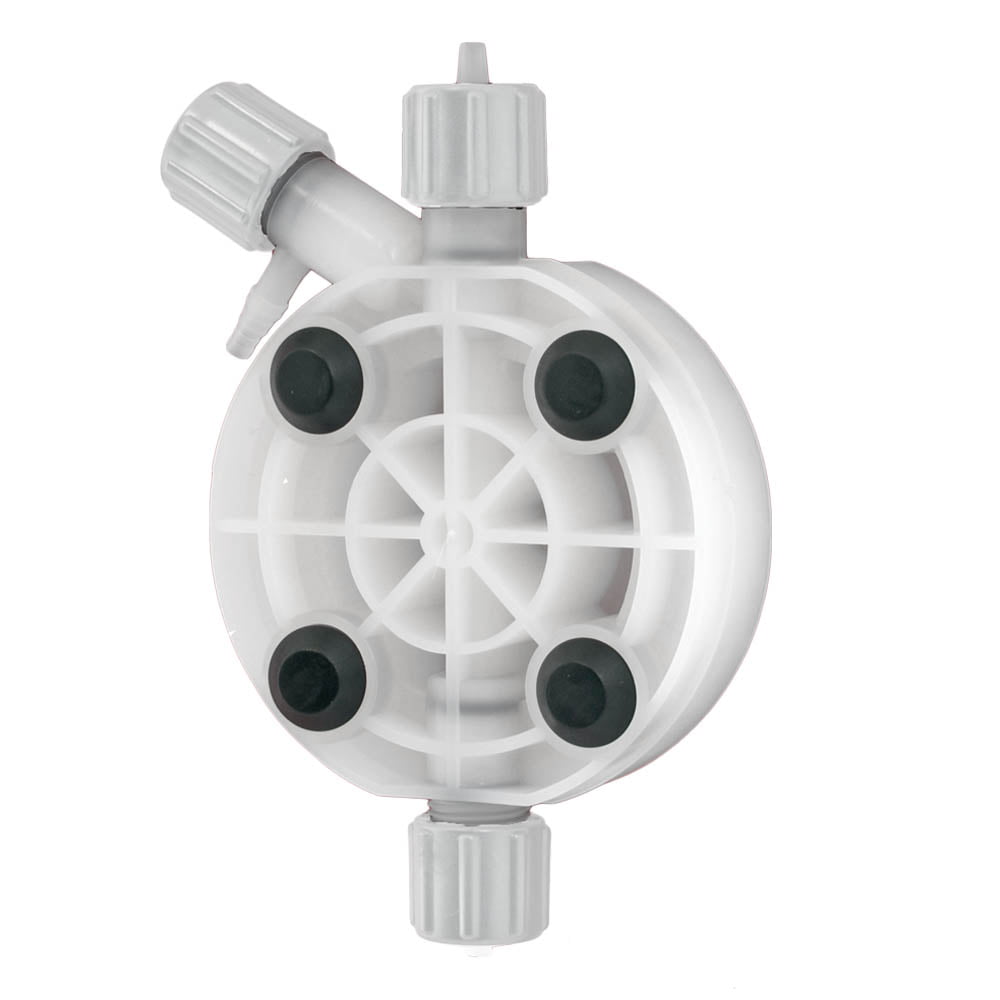

- 腐蚀性头： PP，带 EPDM 密封件和 SS 球
- 氯气脱气（自排气）头：仅限 KAMF 型号

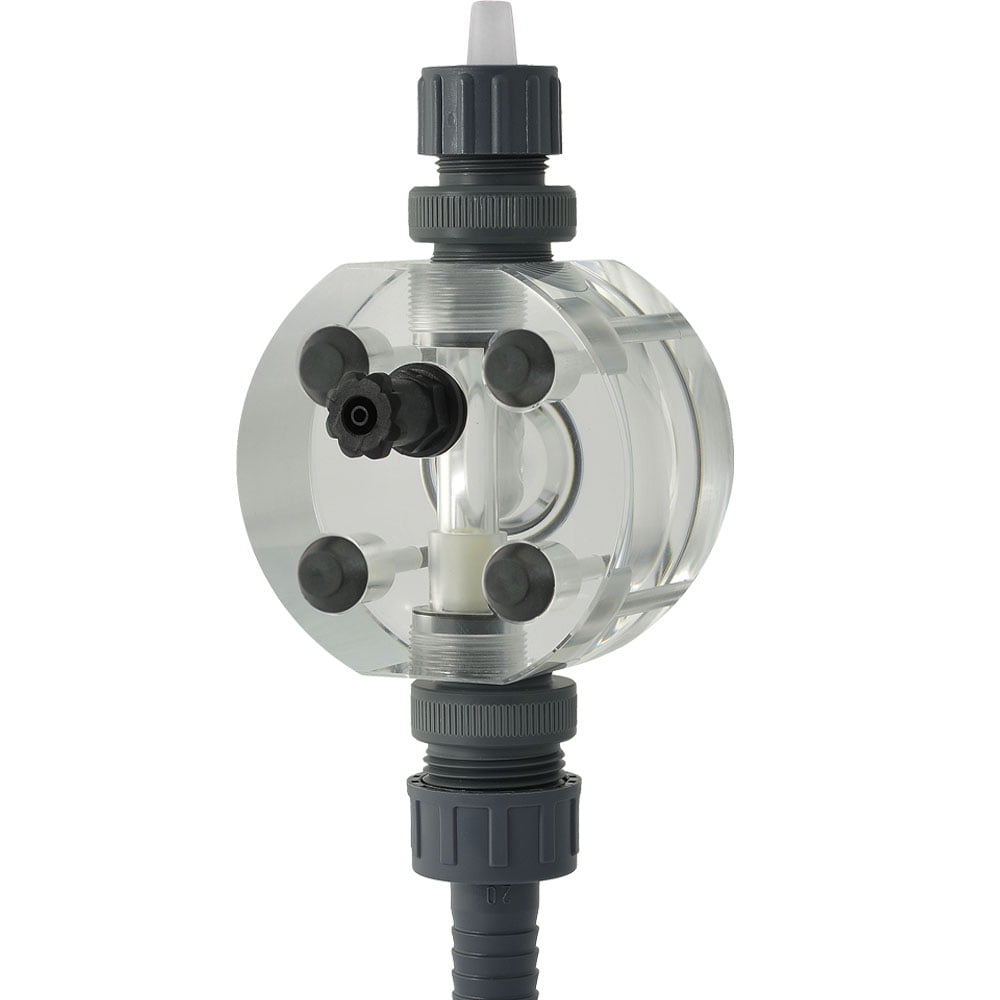

- 适用于聚合物的高粘度头：仅限 KMF LPV 型号（最大 8000 cps）
- 可调节行程长度（10-100％）
- 背光 LCD 显示屏，可显示每分钟冲程数、每分钟升数、每分钟 PPM 等
- 如果泵失去动力，可选的 SEFL 流量开关会发出警报
- 可编程报警继电器输出
- 泵启用/待机输入
- 当罐内化学品液位较低时，脚踏阀上的浮子会停止泵的加药
- 底阀、吸入阀和输送阀中的双球止回阀
- 持久耐用的固体特氟龙隔膜
- 可靠且准确的剂量
- 带可选前部或侧面安装支架的壁挂式安装架
- 备用代码：EMEC KMSMF 或 EMEC KMSAMF
- 提示：查看下方可用的型号/零件编号
Specifications
Specifications
-
ConfigurationFoot Mount, High Viscosity Head, Standard Head
-
Inputs4-20mA, Water Meter Pulse, SEFL Flow Sensor, Standby, Low Level
-
Install Kit Included4x6mm tube (<12 l/hr) or 6x8mm tube (12 l/hr or more), injection valve & foot valve with level float
-
IP RatingIP65
-
MaterialsCeramic Balls, EPDM O-rings & Seats, FKM B O-rings & Seats, PP Head, PTFE Diaghragm/s, PVDF Head, PVDF Valve Bodies, SS Balls
-
Max Flow / Pressure (Head)1 l/hr @ 20 bar, 10 l/hr @ 5 bar, 18 l/hr @ 2 bar, 2 l/hr @ 18 bar, 5 l/hr @ 10 bar
-
Max Viscosity100 cps, 600 cps with optional SS balls, 8000 cps in LPV Models
-
Optional Tube Size1/4 inch, 3/8 inch, 5×8 or 6x9mm
-
OutputsAlarm Relay
-
Process Connection1/2 inch BSP Male
-
Variables MeasuredLevel
