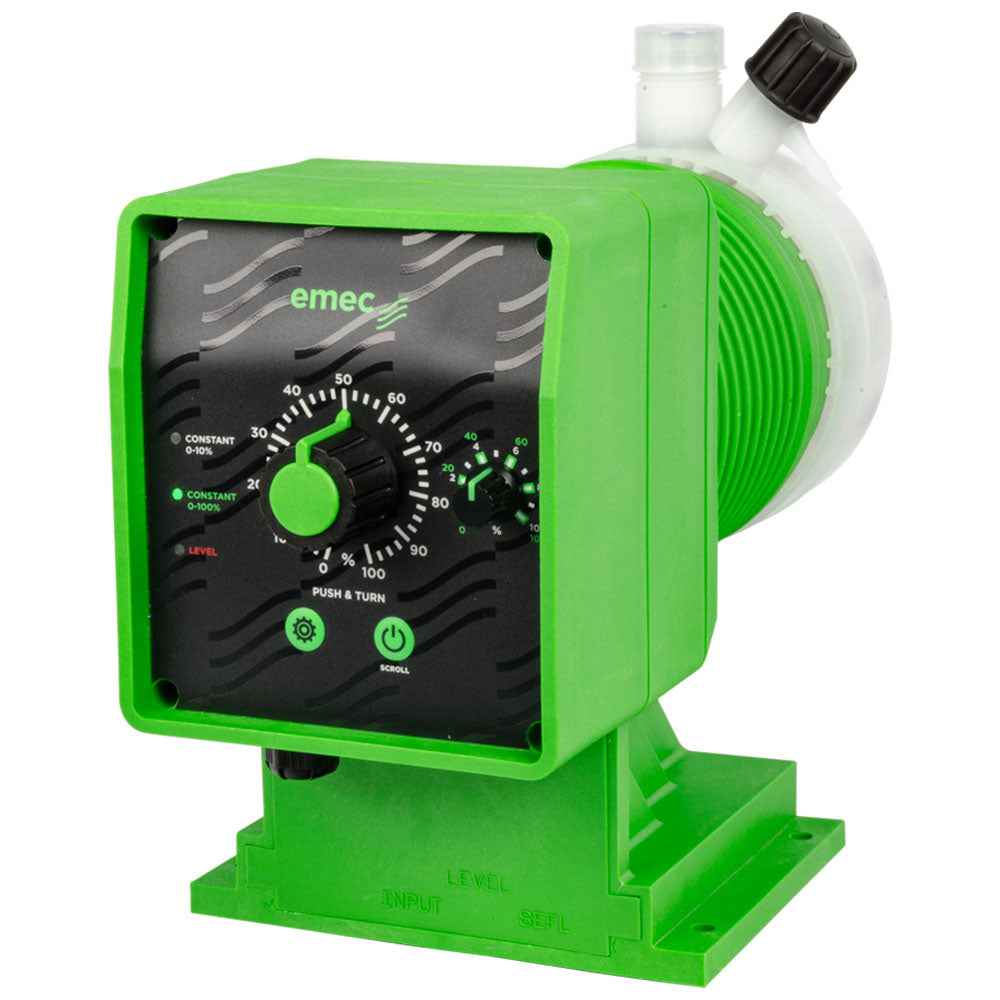

EMEC AMSPCOPLUS 01 40 Very High Viscosity Pump

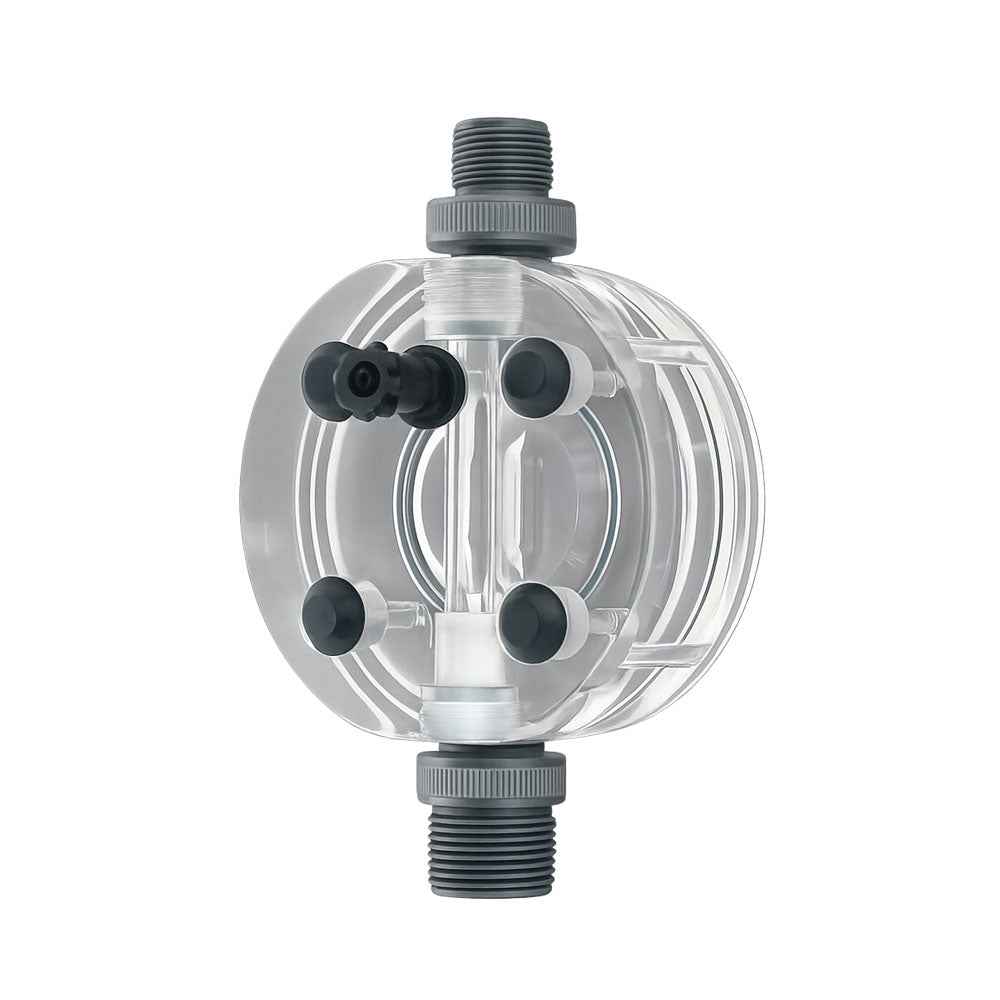

EMEC AMSPCOPLUS PMMA Head
1
of
2
Loading...
Range: EMEC Dosing Pumps
EMEC AMSCOPLUS LPV（15 升/小时至 60 升/小时）高粘度喷头
EMEC | SKU:
EMEC AMSPCO 01 40 FP PTFE PMMA
EMEC AMSCOPLUS LPV（15 升/小时至 60 升/小时）高粘度喷头 is backordered and will ship as soon as it is back in stock.
- 包括 3/4 英寸注射阀、2 米吸入软管和 2 米排放管
- 可靠、准确的剂量，最高可达 8,000 cps
- 透明亚克力头，带 1/2 英寸不锈钢球
- 16x22mm 吸入软管和 8x12 排放阀
- 可调节行程长度（10-100％）
- 坚固的特氟龙隔膜可防止磨损
- 带陶瓷球的弹簧式注射阀
- 安装简单
Specifications
Specifications
-
ConfigurationFoot Mount, High Viscosity Head
-
Install Kit Included16×22 suction hose, 8x12mm delivery tube & injection valve in LPV models
-
IP RatingIP65
-
MaterialsFKM B Viton O-rings, PMMA Acrylic Transparent Head, PP Valve Bodies, PTFE Diaghragm/s, PTFE Teflon Seats, SS Balls
-
Max Flow / Pressure (Head)40 l/hr @ 1 bar
-
Max Viscosity50000 cps
-
Process Connection20x27mm suction / 16 x 22mm delivery
