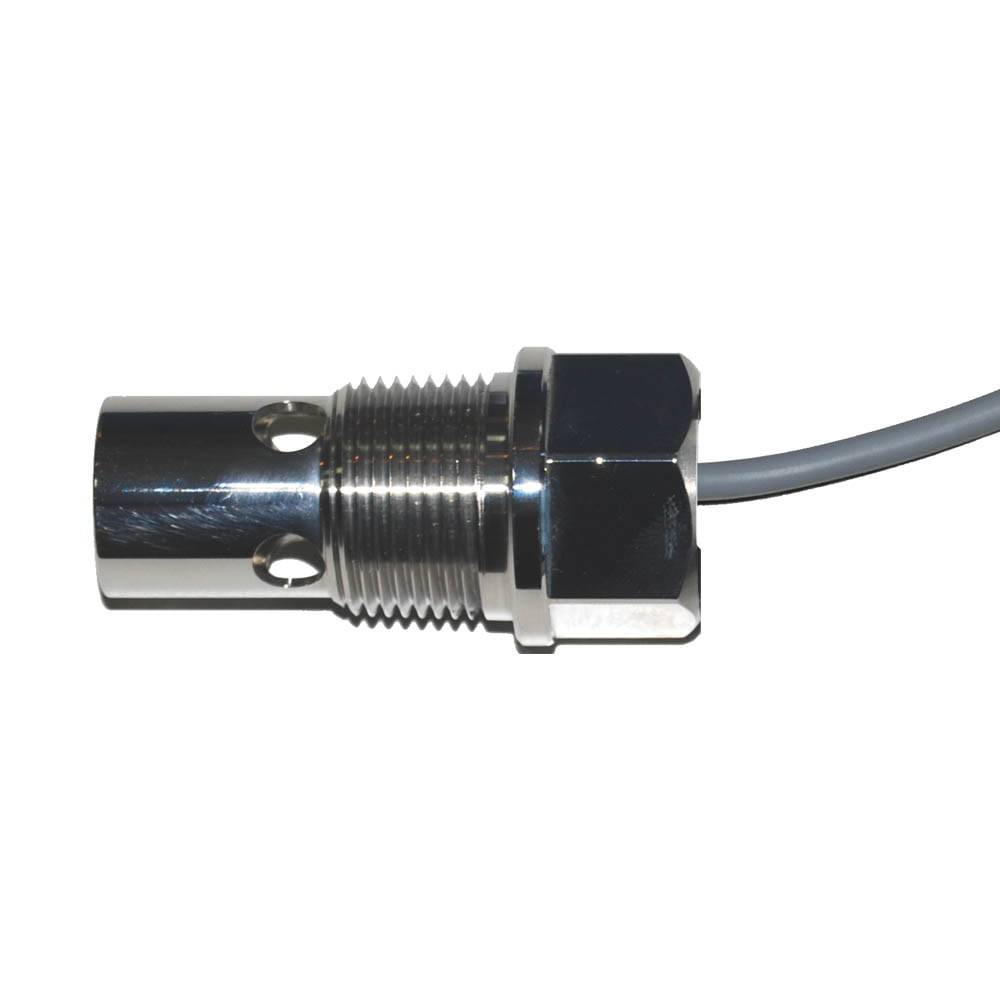

EMEC EICDHPT Cond Probe for LD High Temp Conductivity Controller 1
EMEC EICDHPT Cond Probe for LD High Temp Conductivity Controller
- Model EICDHPT/1: 0-20mS (K=1)
- Model EICDHPT/01: 0-200µS (K=0.1)
- Model EICDHPT/001: 0-20µS (K=0.01)
- Replace x in product code with K factor required
- Stainless Steel Body & Electrodes
- 15 Bar Max Pressure at 200°C
- 3/4 inch thread, with 4m cable
- PT100 Temperature compensation
- Compatible Controllers: EMEC LDCDHT
Description
EICD Conductivity Probe Recommended Installation
EMEC ECDI_ECDC_ECDIM_ECDCIM_EICD_EICDC Instruction Manual R3-11-21
EMEC EICDC & ECDHTP Probes - SS body & Electrodes Data Sheet R11-19
| Name |
|---|
|
EICD Conductivity Probe Recommended Installation
|
|
EMEC ECDI_ECDC_ECDIM_ECDCIM_EICD_EICDC Instruction Manual R3-11-21
|
|
EMEC EICDC & ECDHTP Probes - SS body & Electrodes Data Sheet R11-19
|
Additional information
| Variables Measured | Conductivity, Temperature |
|---|---|
| Max Pressure / Temp | 15 bar @ 200°C |
| Process Connection | 3/4 inch BSP Male |
| Materials | Stainless Steel 316 |
| IP Rating | IP65 |
